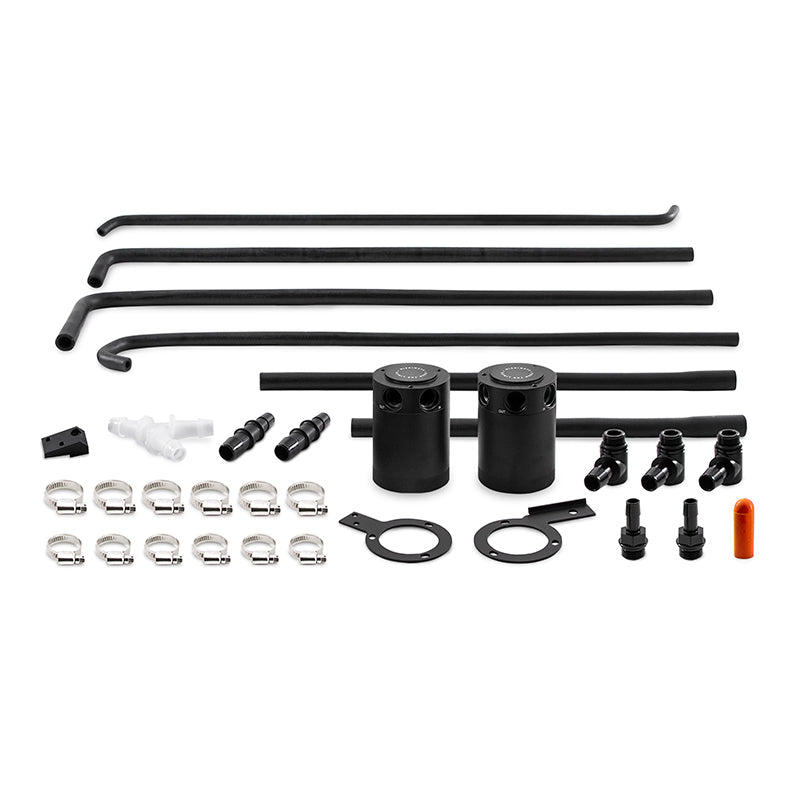

Mishimoto Subaru WRX Baffled Oil Catch Can System 2008-2014

The Mishimoto Baffled Oil Catch Can Kit is designed and engineered to work on your WRX to eliminate harmful blow by vapors from re-entering your engine. The EJ25 in the WRX is known for producing blow by gases during normal to severe driving, especially when more boost and horsepower is added to the engine. This oil blowby can work its way into your intake system, reducing the octane rating of your fuel and potentially causing damaging detonation, which has a profoundly negative effect on the already sensitive EJ25 engine. The kit uses our small baffled catch cans with a bronze filter, and internal baffled to better separate the oil from the crankcase vapors. The turbo inlet side of the kit utilizes our three-port baffled catch can to catch as much oil vapors as possible. It also includes two direct fit mounting brackets that not only is extremely easy to install but also fits right hand drive as well! The kit comes with six direct fit hoses that fit as if they were stock. The hoses are designed to fit right onto the PCV valve ports and into the turbo inlet ports. Plastic, barb fittings connect the hoses to the can. Like all of our products, this baffled catch can kit comes with Mishimoto's lifetime warranty! Our catch cans are different from most air-oil-separator (AOS) systems on a few levels. First, our catch cans are not heated. This means that all of the blow-by is able to condense in the can, including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan, while our catch cans trap the blow-by and keep it out of the engine permanently. If you've seen what We've seen in the bottom of our catch cans, you won't want that draining back into your oil either.

• Separates oil particles using 50 micron bronze filter
• Application-specific brackets locate catch cans in a serviceable location
• Fully sealed, billet 6061 aluminum catch cans

Attributes:

• Brand Name: Mishimoto
• GTIN: 00811580032813
• Can Finish: Anodized
• Can Material: 6061-T6 Billet Aluminum
• Can Outside Diameter: 2.5
• Can Type: Twist Off
• Color: Black
• Drain Plug Included: Yes
• Finish: Powder Coat
• Height: 3.7
• Hose Included: Yes
• Inlet Port Inside Diameter: 0.6
• Inlet Port Quantity per Can: 1
• Install Difficulty: 4
• Installation Difficulty: 3
• Interior Baffle: Yes
• Material: 6061 Aluminum
• Maximum Can Capacity: 3
• Mounting Bracket Included: Yes
• Outlet Port Inside Diameter: 0.6
• Outlet Port Quantity per Can: 1
• SellingPoint01: Direct fit for 2008-2014 Subaru WRX
• SellingPoint02: Separates oil particles using 50 micron bronze filter
• SellingPoint03: Application-specific brackets locate catch cans in a serviceable location
• SellingPoint04: Fully sealed, billet 6061 aluminum catch cans
• SellingPoint05: Protects turbocharged boxer engine from oil blow-by
• SellingPoint06: Helps maintain proper octane levels to reduce detonation
• SellingPoint07: Catch can and filters are fully serviceable
• SellingPoint08: Internal air diverter turbulates air longer to improve oil separation
• SellingPoint09: No cutting or modification required
• SellingPoint10: Offered with black, direct fit hoses
• SellingPoint11: Fits LHD and RHD models
• SellingPoint12: Patent Nos. US ZL 202120175368.7, US ZL 201830621732.1, US D910,727
• SellingPoint13: Mishimoto Lifetime Warranty
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Applications: N/A
• TechSpec Catch Can Diameter (in): N/A
• TechSpec Chassis Codes: N/A
• TechSpec Drain Plug Thread Size: N/A
• TechSpec Engine Codes: N/A
• TechSpec Height (in): N/A
• TechSpec Includes: N/A
• TechSpec Inlet: N/A
• TechSpec Installation Notes: N/A
• TechSpec Material: N/A
• TechSpec Note: N/A
• TechSpec Outlet: N/A

Extended Information:

• Country of Origin: CN
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 5.81 x 5.81 x 5.81 inches
• Weight: 5.48 POUNDS
