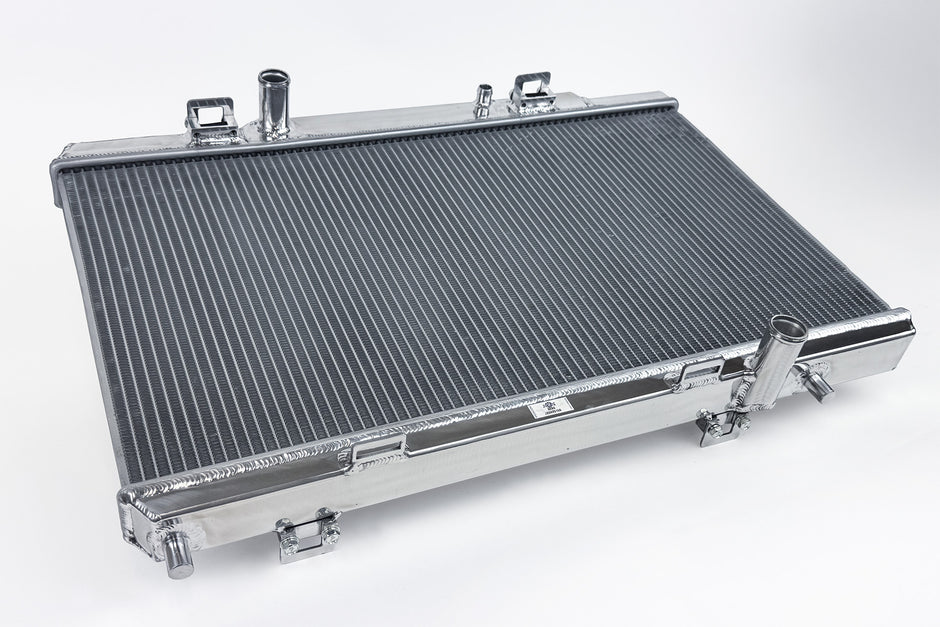

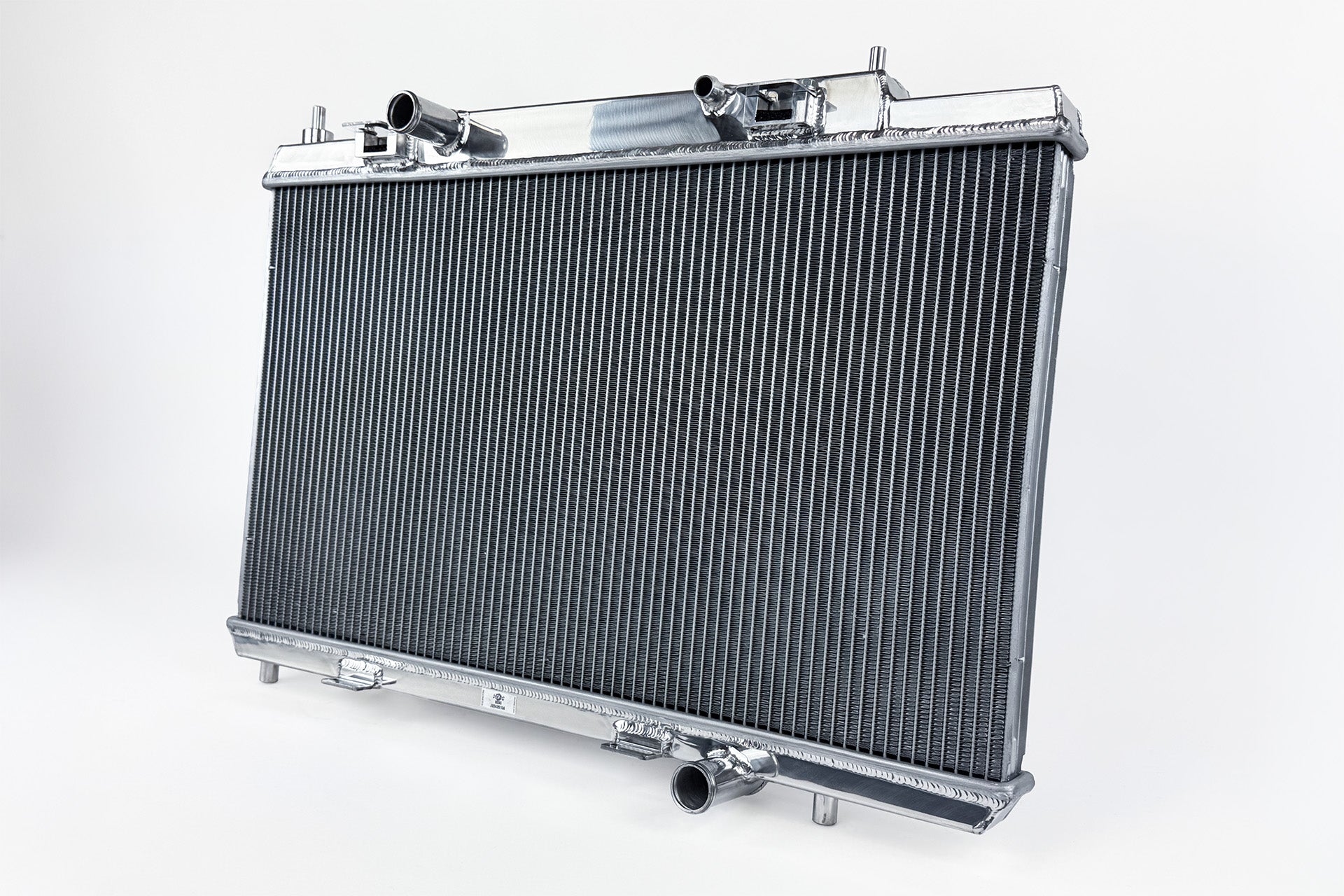

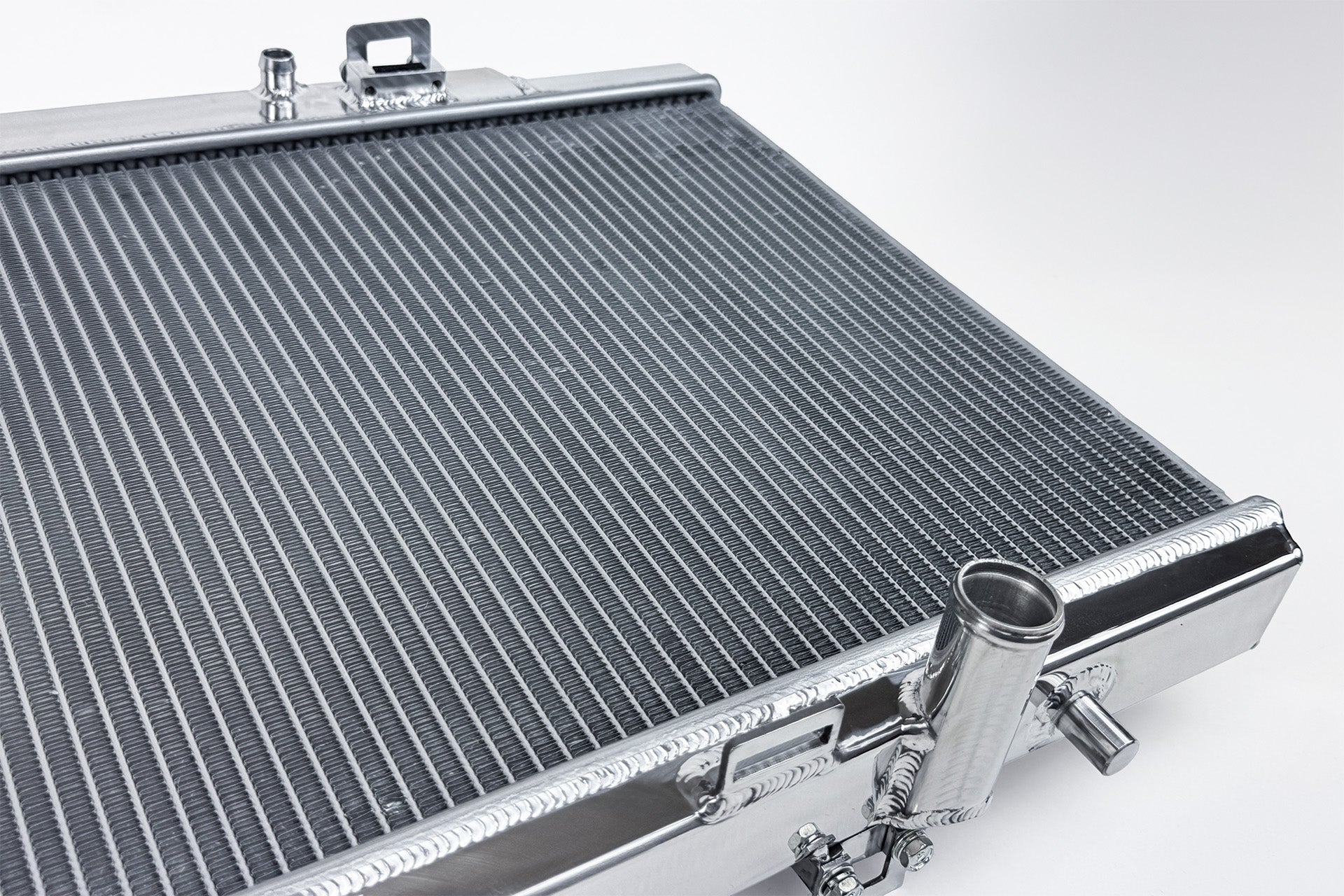

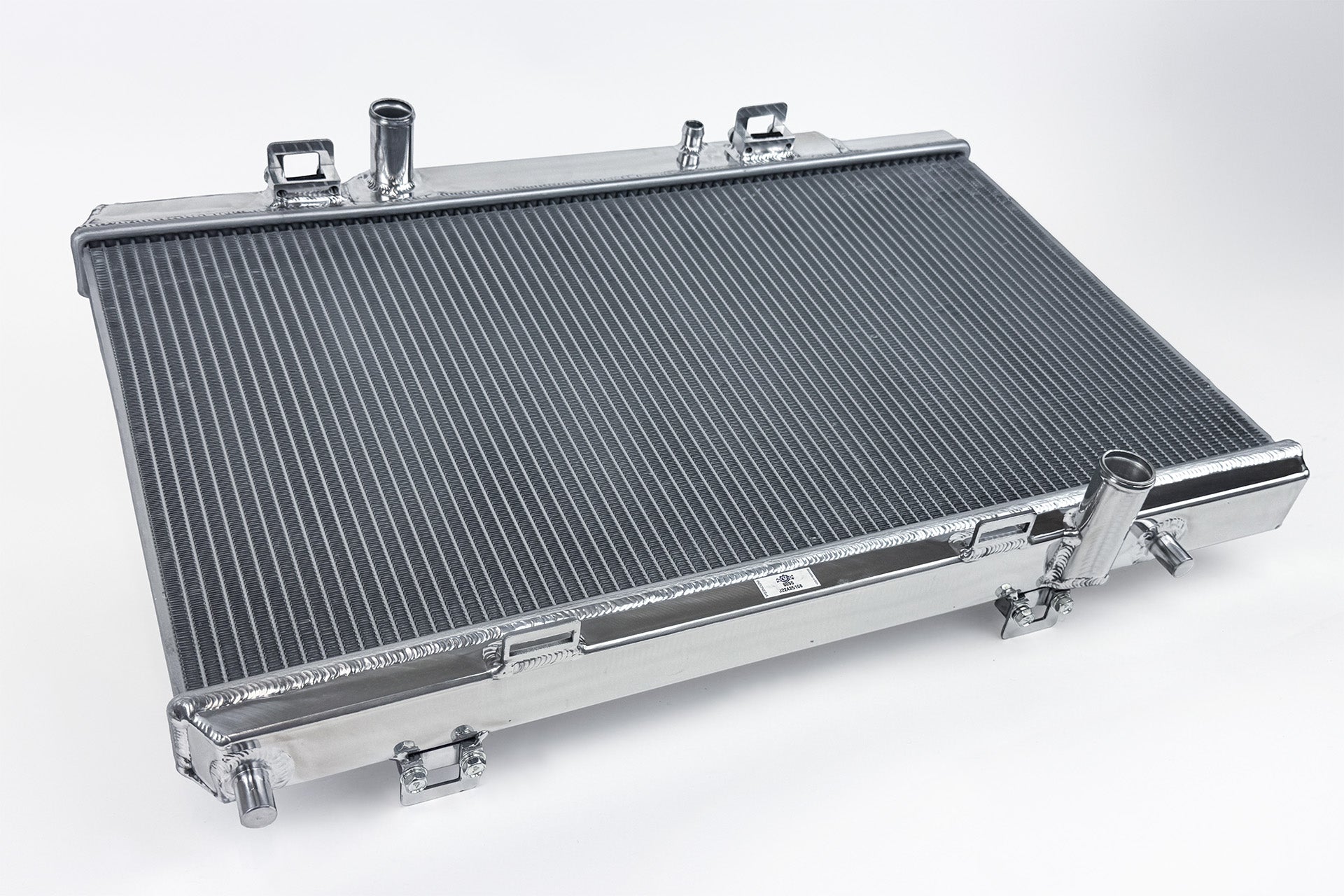

MK6 Ford Fiesta ST High-Performance All-Aluminum Radiator

One of the biggest advantages of the CSF Radiator over the OE Unit is the Triple Pass design. The internal routing of the radiator forces the coolant to flow through the core three times (see diagram below), maximizing heat dissipation and resulting in lower coolant temperatures. This type of configuration ensures more even heat dissipation, reducing hotspots and promoting more consistent cooling.

• 1-Row - 31mm Ultra-High-Performance Core
• 2-Year Limited Warranty
• Triple Pass Flow Configuration Allows Coolant to Flow Across the Core Three Times Before Exiting for Lowest Outlet Temperatures Possible
• Cooling Tubes with CSF's Exclusive B-Tube Technology
• 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
• CNC Machined Mounting Pins and Brackets
• OEM Style Inlet/Outlet
• 100% All Aluminum TIG-Welded Construction
• True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
• Individually Leak and Pressure Tested

Attributes:

• Brand Name: CSF Cooling - Racing & High Performance Division
• GTIN: 00710353072370
• Coolant Hose Inlet Connection Type: OE Type Connection
• Coolant Hose Outlet Connection Type: OE Type Connection
• Core Height: 355mm
• Core Material: Aluminum
• Core Row Quantity: 1
• Core Thickness: 31mm
• Core Width: 635.5mm
• Down Flow Or Cross Flow Type: Down Flow
• Finish/Color: Polished
• Frame Included: No
• Grade Type: Performance
• Inlet Connector Type: Slip On
• Inlet Diameter: 28mm
• Inlet Location: Top Left
• Installation Type: Drop-In Fit Installation
• Internal Engine Oil Cooler: No
• Internal Transmission Oil Cooler: No
• Mounting Hardware Included: No
• Mounting Type: Mounts with OE Hardware
• Outlet Connector Type: Slip On
• Outlet Diameter: 28mm
• Outlet Location: Bottom Right
• Radiator Cap Included: No
• Tank Material: Aluminum
• Thermostat Included: No

Extended Information:

• Country of Origin: ID
• Emissions : 4
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 29 x 22 x 8 inches
• Weight: 15 POUNDS
