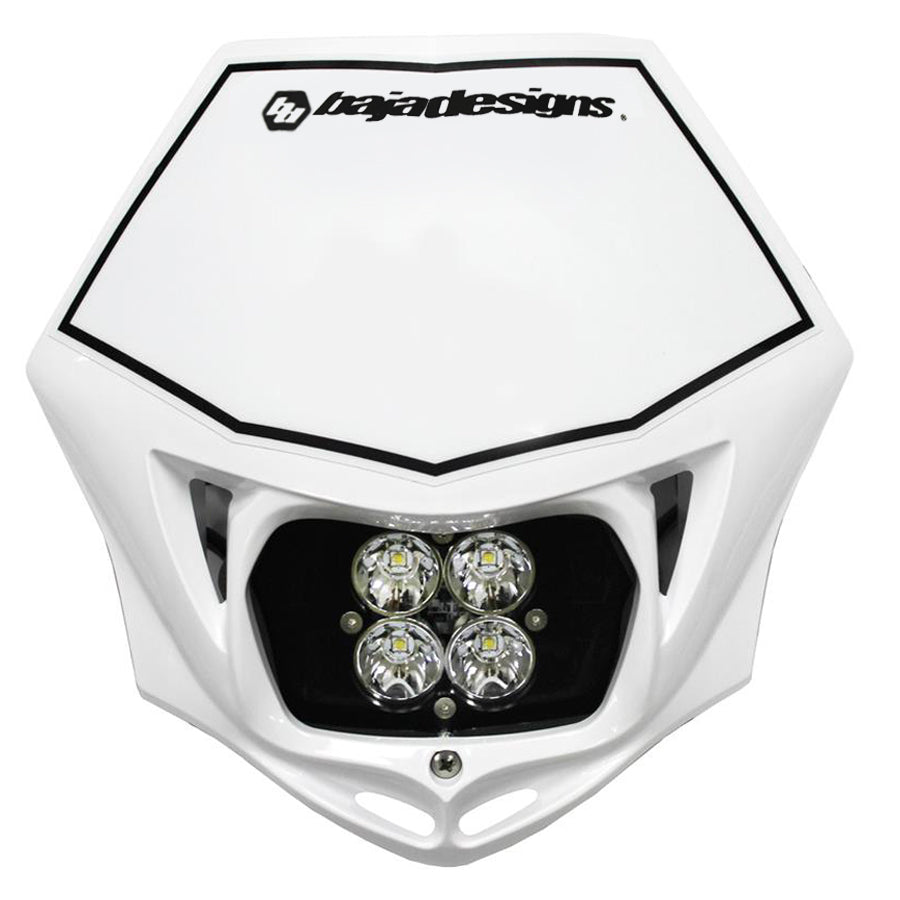

Motorcycle Squadron Sport (D/C) Headlight Kit W/ Shell (White Shell; Spot; Clear)

If you are looking for an off road light that features unique styling and leading edge performance, than the Squadron Sport is the light for you. The Sport produces an impressive 3,150 lumens while only drawing 26 watts, allowing for a longer ride. An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.

• Electric start bikes that require a stator modification or rewind will have to the purchase a switch and wiring harness kit. Please refer to the “STATOR Reference Chart” found under the Tech Info header. For Electric-Start Bikes: Some electric-start bikes require the stator to be modified or rewound as well as the addition of a new rectifier/regulator to run LED lights. If your bike requires a new rectifier/regulator please order part (#12-2004) (please provide year/make/model of bike). Detailed stator modification instructions and hardware is included for all bikes that require a stator modification to run LED lights. If your bike requires the stator to be rewound, please call Baja Designs for an order confirmation number to have this service performed.

Attributes:

• Brand Name: Baja Designs
• GTIN: 00853774007092
• Add-On: Kit Contents-550001-Squadron Sport (Spot; Clear)
• Amperage Rating (A): 2.200
• Average Rated Life (hr.): 49,930
• Beam Pattern: Spot
• Bezel Material: Billet Machined Aluminum
• Brightness (Lumens): 3162
• DES: Motorcycle Squadron Sport (D/C) Headlight Kit w/ Shell
• Depth (in.): 2.770
• Description: White Shell; Spot; D/C Wiring
• EXT: Motorcycle Squadron Sport (D/C) Headlight Kit w/ Shell (White Shell; Spot; Clear)
• Height (in.): 3.070
• Housing Color: Black
• Housing Material: Powder Coated Cast Aluminum
• Length (in.): 3.070
• Lens Color: Clear
• Lens Material: Hardcoated Polycarbonate
• Light Quantity: 1
• Lighting Modes: Beam
• Lighting Quantity: 4
• Lighting Technology: Cree LED
• Lighting Type: Forward Projecting
• Mounting Hardware Description: White Windscreen Shell
• Mounting Hardware Included: Yes
• Mounting Hardware Material: Stainless Steel
• Overvoltage Protection: Built-In
• Product Type: Motorcycle Squadron Sport White D/C Headlight Kit w/ Shell
• Standards/Compliance (Durability): Exceeds MIL-STD810G (Mil-Spec Testing)
• Standards/Compliance (Impact Resistance): IK10 Compliant (Mechanical Impact Testing)
• Standards/Compliance (Water Resistance): IP69K (Waterproof up to 9ft & Pressure Washable)
• Switch Included: Yes
• TLE: Motorcycle Squadron Sport (D/C) Headlight Kit w/ Shell (White Shell; Spot; Clear)
• Wattage (W): 30.360
• Weight (lbs.): 1.800
• Wiring Harness Description: Plug and Play; A/C to D/C Converter
• Wiring Harness Included: Yes

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Weight: 0 POUNDS
