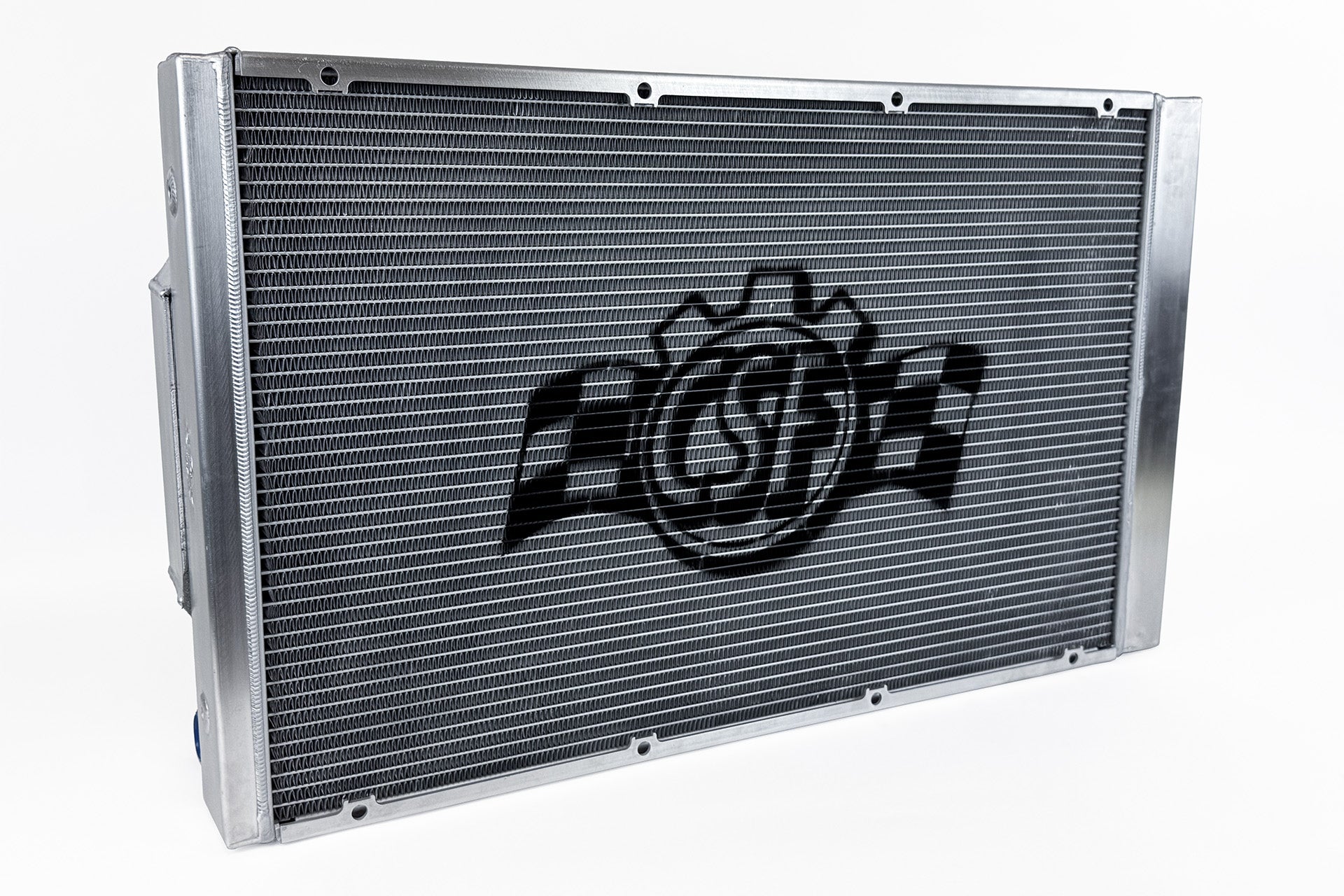

Motorsport Dual-Pass Radiator With Shroud + 14" SPAL Brushless Fans & Harnesses

Most aftermarket fan kits don't include the jumper harnesses (pig tails) and rely on the customer to source their own or rewire in the factory connectors. While this works when replacing factory cooling fans, custom race setups can't always rely on this method. Especially when the radiator will not be mounted in the factory location. CSF includes the jumper harnesses (SPAL SBL-YAZ-PT10) with the #8374 to make the wiring process as easy as possible.

• 100% All Aluminum TIG-Welded Construction

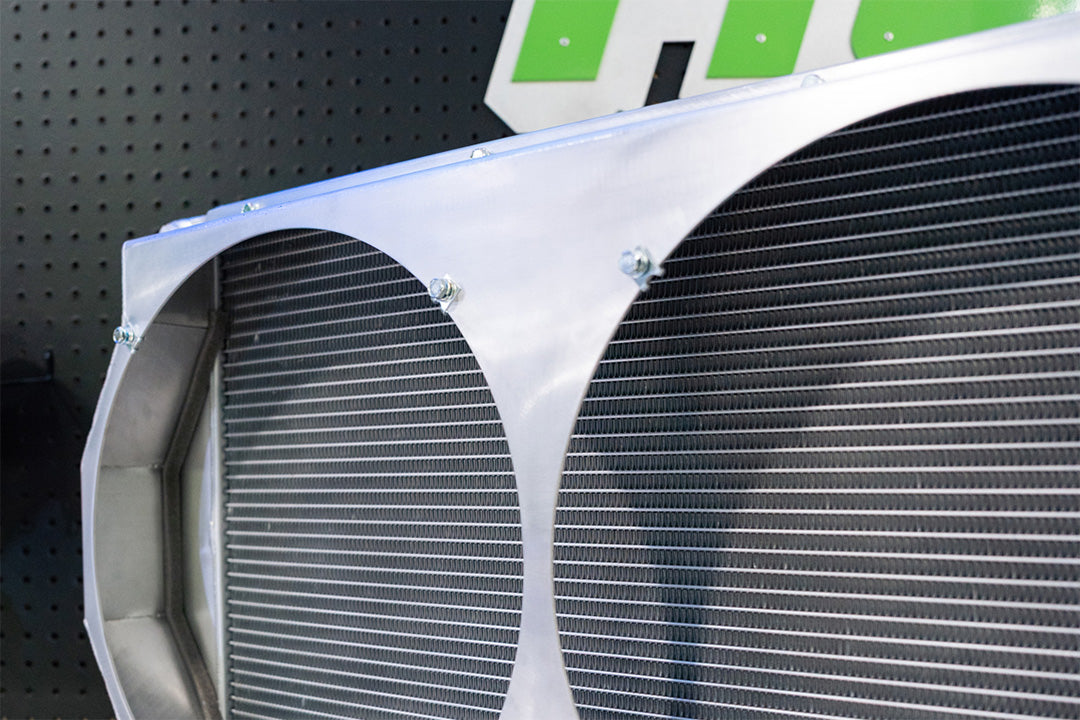

• Removable Fan Shroud - Can Be Mounted on Either Side of the Core with included hardware

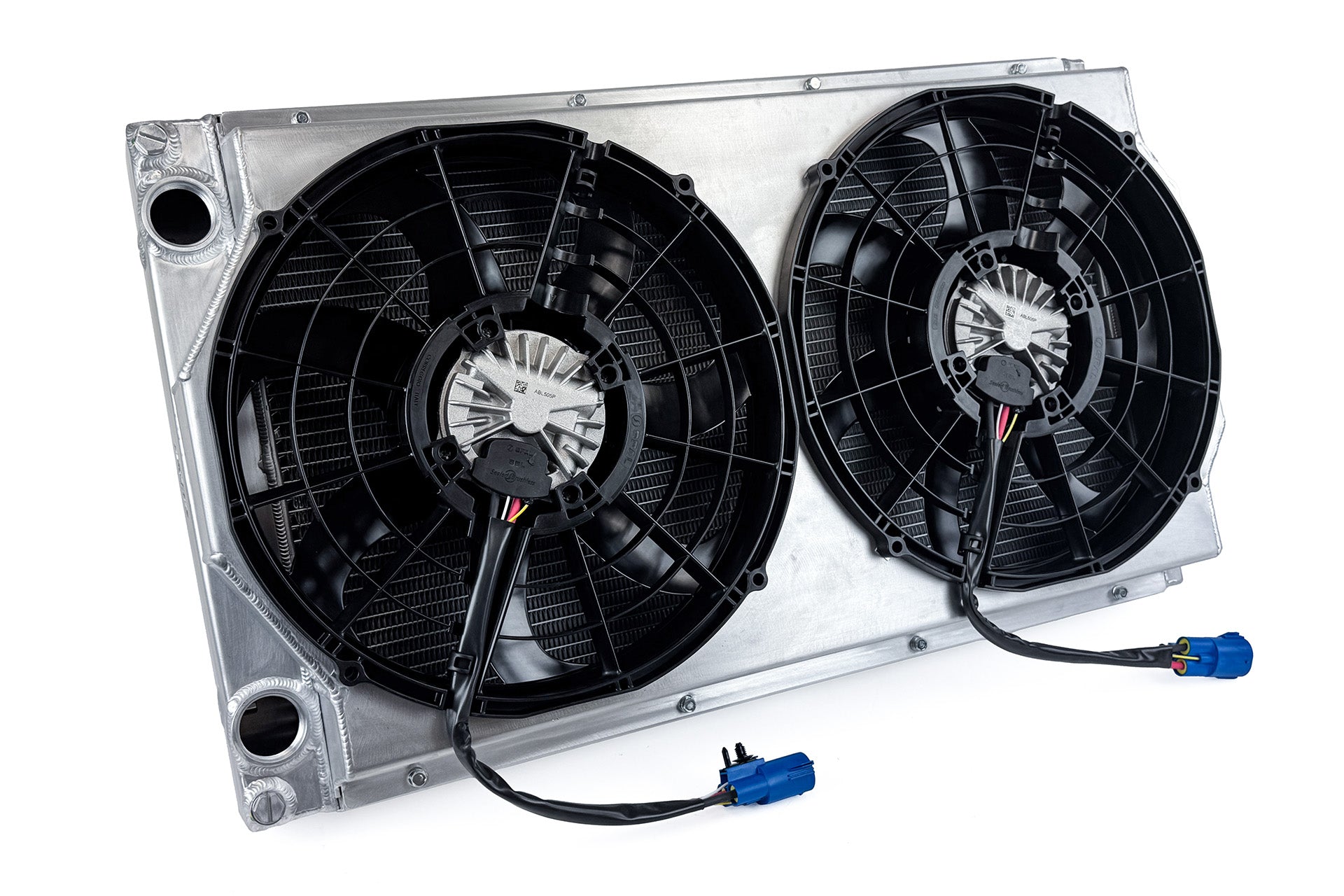

• Dual 14" 500W SPAL Brushless Fans - Total of 4790 CFM (SPAL 30107102)
• Includes Two Jumper Harnesses for the SPAL Fans (SPAL SBL-YAZ-PT10)
• Hand Brushed Satin Finish
• Individually Leak and Pressure Tested
• 2-Year Limited Warranty
• Overall Dimensions Including Shroud & Fans (WxHxD): 794.10 x 470.00 x 172.56 mm (31.264 x 18.661 x 6.749 inches)
• Overall Dimensions Radiator Only (WxHxD): 794.10 x 470.00 x 90.00 mm (31.264 x 18.661 x 3.543 inches)
• 2-Row - 68mm Ultra-High-Performance Dual Pass Core: 705 mm L x 448 mm H (27.75 x 17.5 inches)
• 45 Rows of 8mm Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
• 44 Rows of Cooling Tubes with CSF's Exclusive B-Tube Technology
• Inlet/Outlet: -20AN (1 5/8" - 12) Threaded female ORB bosses - Fittings NOT Included
• 8 total M8x1.25 Mounting Bosses (4 per tank) for mounting versatility
• 2 -12AN (1 1/16"-12) ORB ports for sensor mounting, overflow or expansion tank mounting, and/or bleeding - Fittings NOT Included - only plugs

Attributes:

• Brand Name: CSF Cooling - Racing & High Performance Division
• GTIN: 00710353083741
• Coolant Hose Inlet Connection Type: 20AN (1 5/8" - 12) Threaded female ORB bosses
• Coolant Hose Outlet Connection Type: 20AN (1 5/8" - 12) Threaded female ORB bosses
• Core Height: 705mm
• Core Material: Aluminum
• Core Row Quantity: 2
• Core Thickness: 68mm
• Core Width: 448mm
• Down Flow Or Cross Flow Type: Cross Flow
• Finish/Color: Satin
• Frame Included: No
• Grade Type: Performance
• Inlet Connector Type: Threaded
• Inlet Diameter: 28.5mm
• Inlet Location: Top Right
• Installation Type: Universal Cooling Product
• Internal Engine Oil Cooler: No
• Internal Transmission Oil Cooler: No
• Mounting Hardware Included: No
• Mounting Type: M8x1.25 Mounting Bosses
• Outlet Connector Type: Threaded
• Outlet Diameter: 28.5mm
• Outlet Location: Bottom Right
• Radiator Cap Included: No
• Tank Material: Aluminum
• Thermostat Included: No

Extended Information:

• Country of Origin: Indonesia
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 36 x 22 x 13 inches
• Weight: 50 POUNDS
