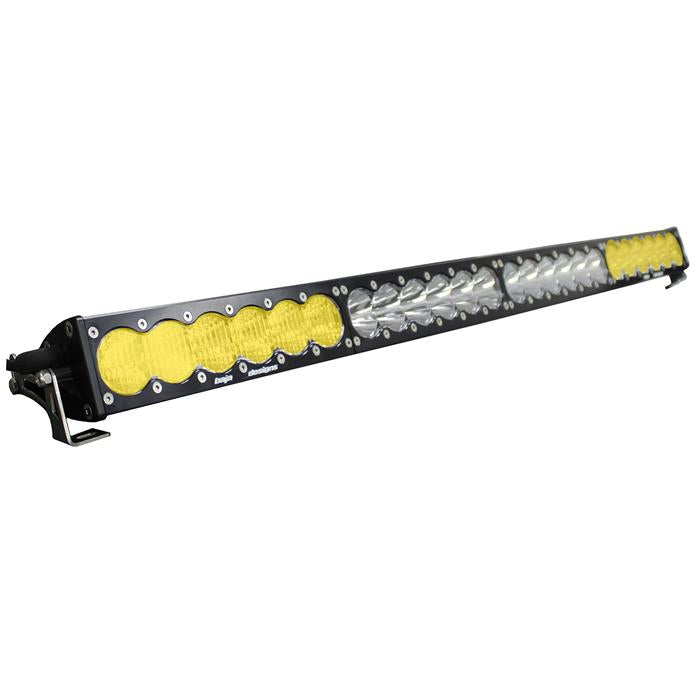

OnX6 Straight Dual Control LED Light Bar (40 Inch; Driving/Combo; Baja Amber/Clear)

Now you can have the best of both worlds with the OnX6 Dual Control LED Light Bar. With the addition of another power cord and switch, you have the ability to control the inner and outer sections individually. This configuration provides a versatile package by allowing you to have one light bar with both amber and white light. An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.

• NOTE: *This light does NOT come with a harness. For basic on/off function you will need (2) 64-0115 wiring harnesses. To access the Hi-Lo function you will need (1) 64-0119 and (1) 64-0115 wiring harnesses.

Attributes:

• Brand Name: Baja Designs
• GTIN: 00819314020099
• Add-On: Accessories-458113-Lens Kit (Spot; Clear)
• Amperage Rating (A): 26.8 (High); 22.4 (Low)
• Average Rated Life (hr.): 49,930
• Beam Pattern: Driving/Combo
• Bezel Material: Billet Machined Aluminum
• Brightness (Lumens): 39,220 (high); 32,760 (Low)
• DES: OnX6 Straight Dual Control LED Light Bar
• Depth (in.): 4.29
• Description: Straight; Driving/Combo; Amber/Clear
• EXT: OnX6 Straight Dual Control LED Light Bar (40 Inch; Driving/Combo; Baja Amber/Clear)
• Height (in.): 2.69
• Housing Color: Black
• Housing Material: Aircraft Grade Aluminum with Mil-Spec Hard Anodize
• Length (in.): 40
• Lens Color: Amber/Clear
• Lens Material: Hardcoated Polycarbonate
• Light Quantity: 1
• Lighting Modes: High Beam/Low Beam
• Lighting Quantity: 24
• Lighting Technology: LED
• Lighting Type: Forward Projecting
• Mounting Hardware Description: Mounting Brackets
• Mounting Hardware Included: Yes
• Mounting Hardware Material: Stainless Steel
• Overvoltage Protection: Built-In
• Product Type: OnX6+ 40 Inch Dual Control LED Light Bar
• Standards/Compliance (Durability): Exceeds MIL-STD810G (Mil-Spec Testing)
• Standards/Compliance (Impact Resistance): IK10 Compliant (Mechanical Impact Testing)
• Standards/Compliance (Water Resistance): IP69K (Waterproof up to 9ft & Pressure Washable)
• TLE: OnX6 Straight Dual Control LED Light Bar (40 Inch; Driving/Combo; Baja Amber/Clear)
• Universal or Specific: Universal
• Wattage (W): 340 (High); 284 (Low)
• Weight (lbs.): 15.05
• Wiring Harness Description: Hi-Low Dongle
• Wiring Harness Included: No

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 48.000 x 5.000 x 5.000 inches
• Weight: 15.000 POUNDS
