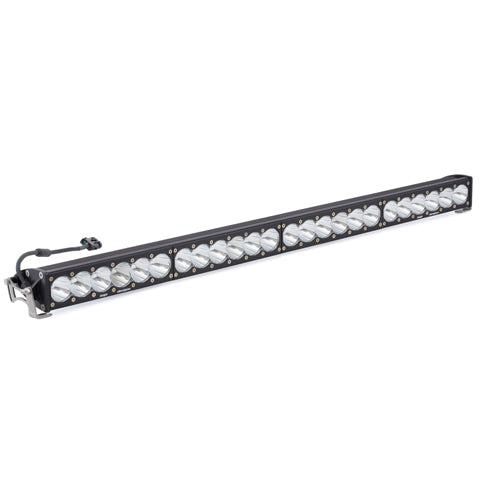

OnX6+ Straight LED Light Bar (40 Inch; Spot; Clear)

At an impressive 39,430 lumens, the brightest just got up to 69 percent brighter than our previous generation. The OnX6 plus LED light bar also integrates Baja Designs’ trademarked High Speed Spot reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet. In addition, the OnX6 plus LED light bar adopts industry standard sizing and is now compatible with aftermarket mounting systems. An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.

• NOTE: *This light does NOT come with a harness, the applicable harness is 640119 OnX6+ wiring harness must be used for 30-50in.

Attributes:

• Brand Name: Baja Designs
• GTIN: 00819314020037
• Add-On: Accessories-458113-Lens Kit (Spot; Clear)
• Amperage Rating (A): 26.8 (High); 22.4 (Low)
• Average Rated Life (hr.): 49,930
• Beam Pattern: Spot
• Bezel Material: Billet Machined Aluminum
• Brightness (Lumens): 38,900 (High); 32,440 (Low)
• DES: OnX6+ Straight LED Light Bar
• Depth (in.): 4.29
• Description: Straight; Spot; Clear
• EXT: OnX6+ Straight LED Light Bar (40 Inch; Spot; Clear)
• Height (in.): 2.69
• Housing Color: Black
• Housing Material: Aircraft Grade Aluminum with Mil-Spec Hard Anodize
• Length (in.): 40
• Lens Color: Clear
• Lens Material: Hardcoated Polycarbonate
• Light Quantity: 1
• Lighting Modes: High Beam/Low Beam
• Lighting Quantity: 24
• Lighting Technology: LED
• Lighting Type: Forward Projecting
• Mounting Hardware Description: Mounting Brackets
• Mounting Hardware Included: Yes
• Mounting Hardware Material: Stainless Steel
• Overvoltage Protection: Built-In
• Product Type: OnX6+ 40 Inch LED Light Bar
• Standards/Compliance (Durability): Exceeds MIL-STD810G (Mil-Spec Testing)
• Standards/Compliance (Impact Resistance): IK10 Compliant (Mechanical Impact Testing)
• Standards/Compliance (Water Resistance): IP69K (Waterproof up to 9ft & Pressure Washable)
• TLE: OnX6+ Straight LED Light Bar (40 Inch; Spot; Clear)
• Universal or Specific: Universal
• Wattage (W): 346 (High); 290 (Low)
• Weight (lbs.): 15.05
• Wiring Harness Description: Hi-Low Dongle
• Wiring Harness Included: No

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 48.000 x 5.000 x 5.000 inches
• Weight: 15.500 POUNDS
