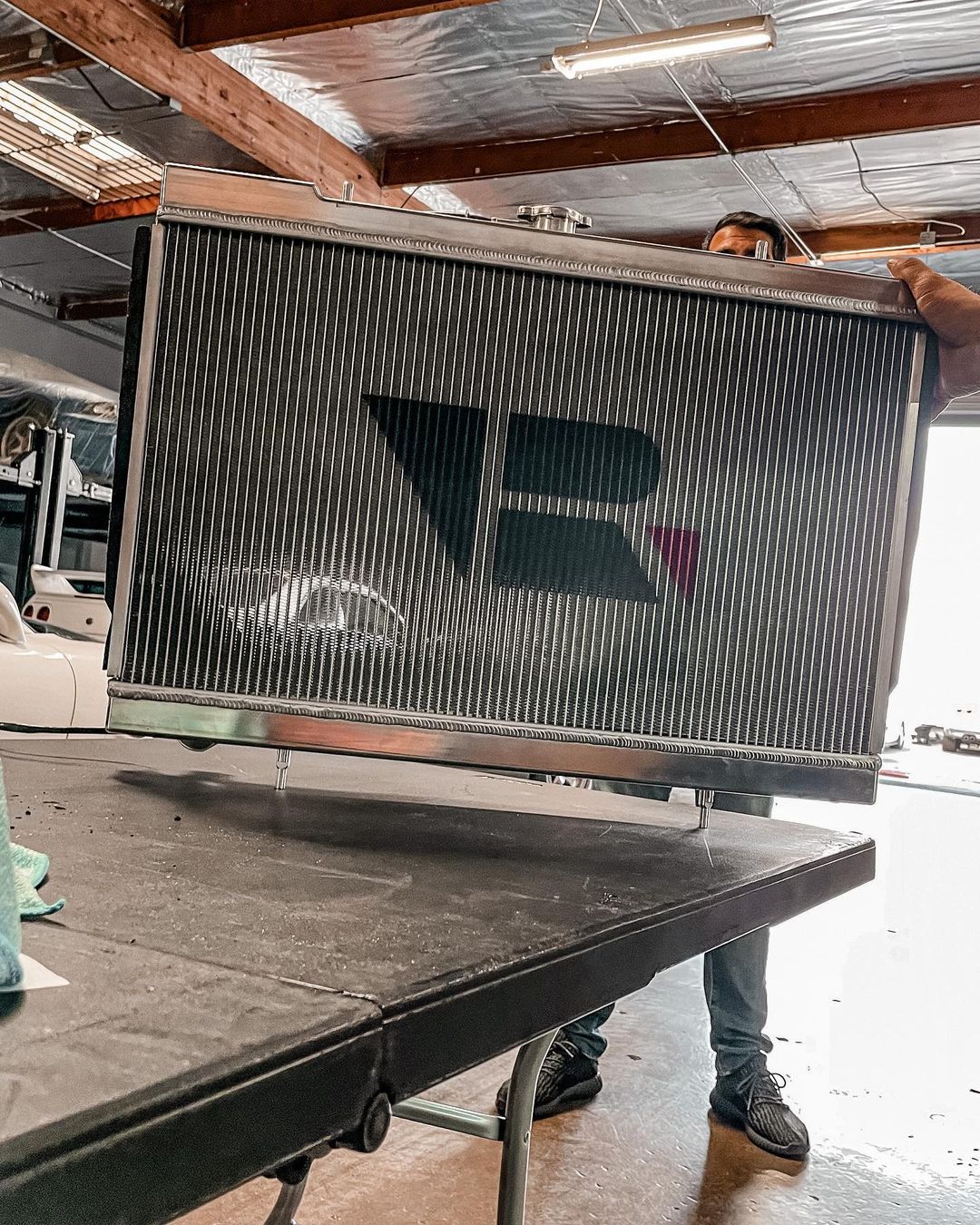

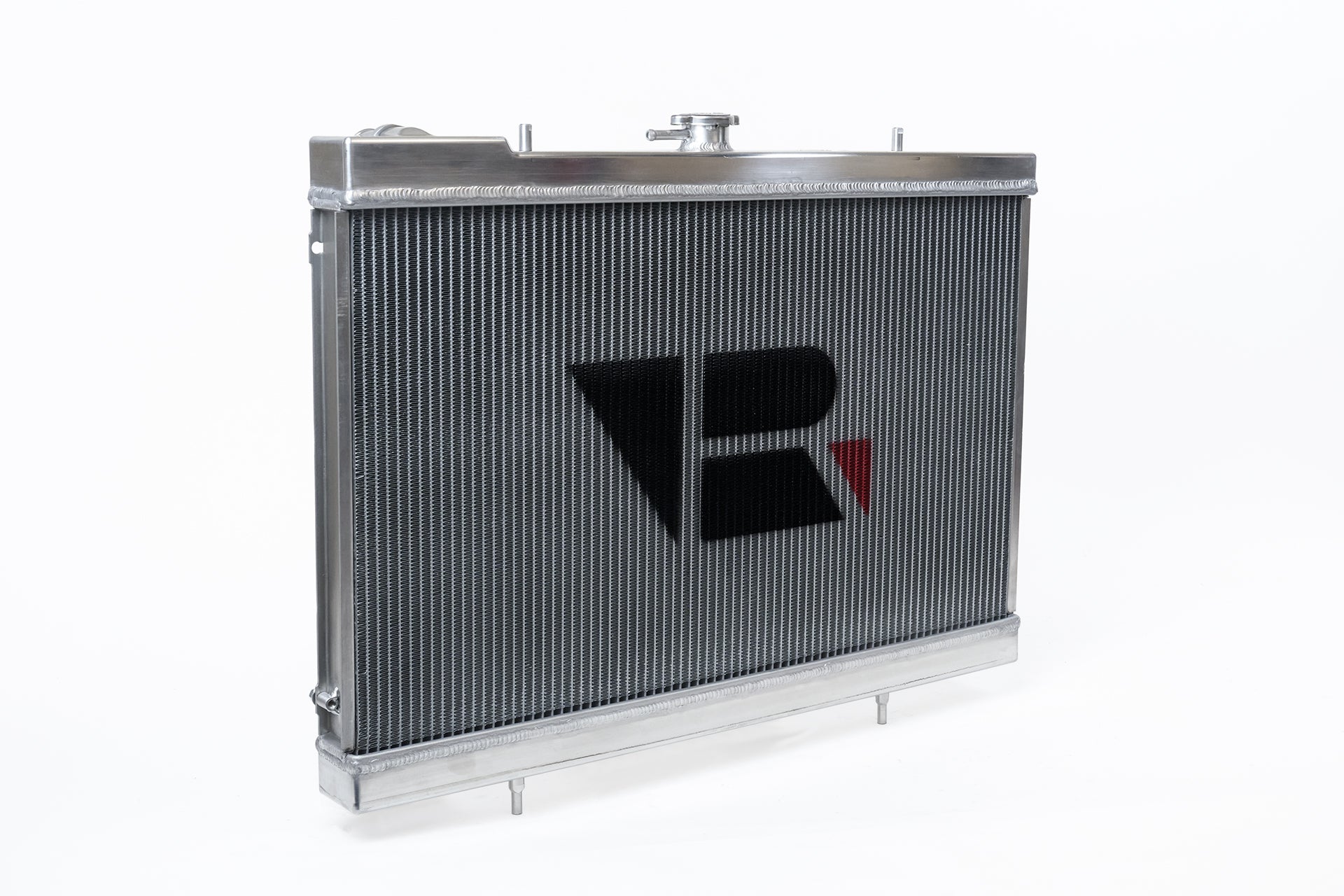

R32 Skyline GT-R/GTS Full Billet Aluminum High-Performance Radiator - Raw Billet

The 2-Row 42mm core greatly not only increases the fluid capacity of the radiator, but also improves the cores ability to dissipate heat. CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. In addition, the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance. More cooling rows also improve the overall efficiency of the radiator. More cooling tubes means more surface area for the coolant's heat to dissipate from. Each end tank is CNC machined billet aluminum giving them incredible strength and durability. CNC machining offers incredible precision and uniformity. The results are perfectly produced end tanks that perfectly match up with the ends of the 42 mm core. Hand TIG welding joins the tanks to the core creating the strongest radiator on the market for the R32 Skyline. Each radiator includes a 1.4 bar high pressure cap with an embossed CSF logo. High pressure radiator caps raise the boiling point of coolant. This helps protect the system from boiling over at higher operating temperatures. While the radiator is designed to keep the system from reaching such temperatures, it is always good to have extra protection for situations where the coolant gets too hot. The CSF #7217 comes in a raw billet aluminum finish. Also available in Black (CSF #7217B).

• CNC Machined 100% Billet Aluminum End Tanks
• Raw Billet Aluminum Finish
• True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
• Individually Leak and Pressure Tested
• OE Location Fan Shroud Mounting Points
• 2-Year Limited Warranty
• Limited Production
• 2-Row - 42mm Ultra-High-Performance Core
• 75 Cooling Tubes with CSF's Exclusive B-Tube Technology
• 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
• CNC Machined Mounting Pins and OEM Style Inlet/Outlet
• 1/8th NPT Temp Sensor Port on Top End Tank
• Top Rank Logo machined into Top End Tank and Painted on Core
• 100% All Aluminum TIG-Welded Construction
• 1.4 Bar (20psi) High Pressure Radiator Cap with CSF logo

Attributes:

• Brand Name: CSF Cooling - Racing & High Performance Division
• GTIN: 00710353072172
• ADD-ON: 7229
• Coolant Hose Inlet Connection Type: OE Type Connection
• Coolant Hose Outlet Connection Type: OE Type Connection
• Core Height: 379.5mm
• Core Material: Aluminum
• Core Row Quantity: 2
• Core Thickness: 42mm
• Core Width: 644.5mm
• Down Flow Or Cross Flow Type: Down Flow
• Finish/Color: Raw Billet Aluminum
• Frame Included: No
• Grade Type: Performance
• Inlet Connector Type: Slip On
• Inlet Diameter: 35mm
• Inlet Location: Top Right
• Installation Type: Drop-In Fit Installation
• Internal Engine Oil Cooler: No
• Internal Transmission Oil Cooler: No
• Mounting Hardware Included: No
• Mounting Type: Mounts with OE Hardware
• Outlet Connector Type: Slip On
• Outlet Diameter: 35mm
• Outlet Location: Bottom Right
• Radiator Cap Included: Yes
• Tank Material: Aluminum
• Thermostat Included: No

Extended Information:

• Country of Origin: ID
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 30 x 23 x 6 inches
• Weight: 20 POUNDS
