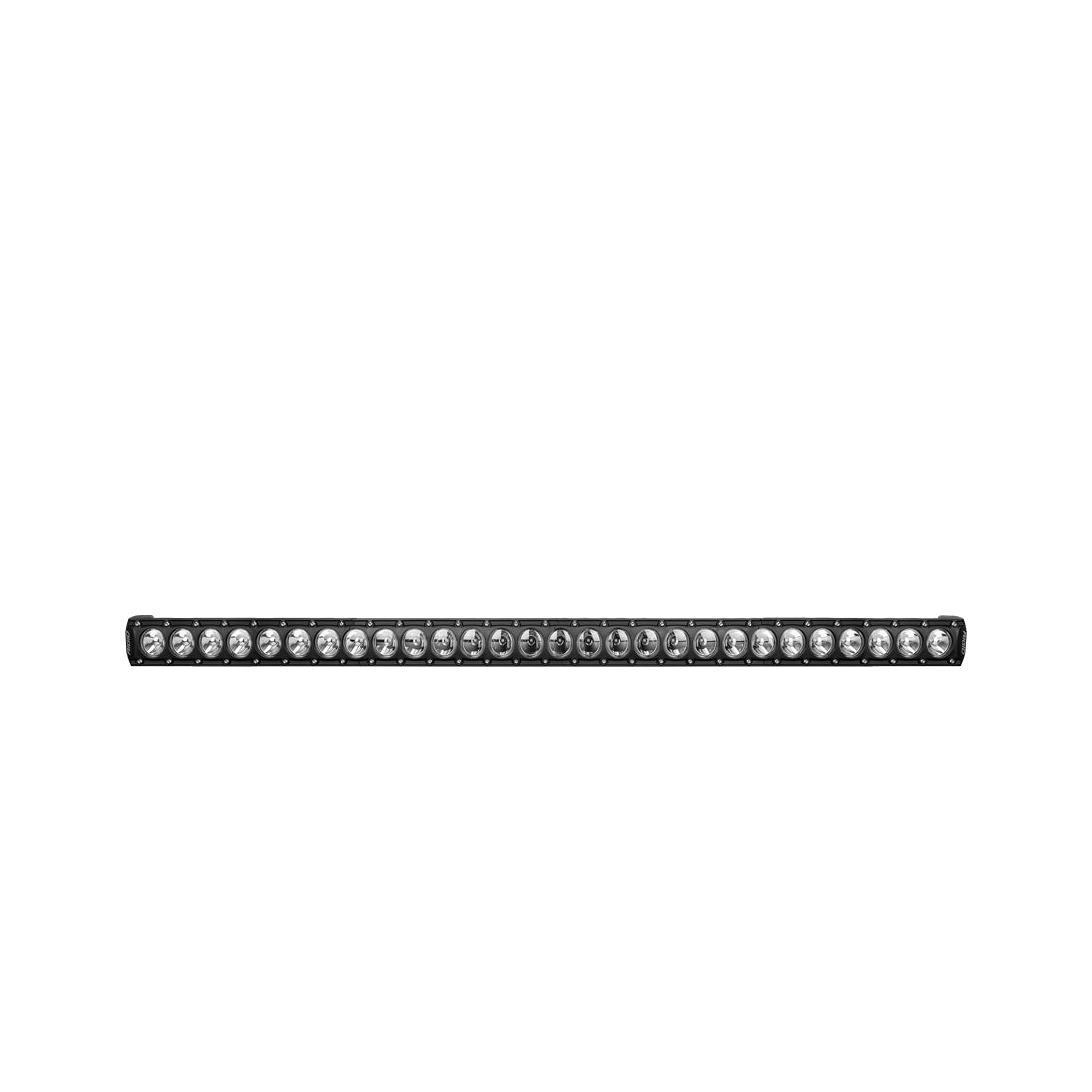

Revolve 40 Inch Bar With White Backlight

RIGID's Revolve Light Bar combines RIGID’s legendary quality in a sleek compact design. The Revolve Light Bar is built with a high-grade aluminum alloy heatsink and is protected by a textured black powder coat. It features an impact resistant nylon bezel that offers an extra layer of protection against road debris and sun exposure. The Revolve Light Bar features a Broad Spot optical system that combines the attributes of spot and flood beam patterns to tackle any road or weather condition. The Revolve Light Bar also features a Max-Bright, auxiliary lighting trim ring available in amber or white that functions as area or work lighting. The Revolve Light Bar comes in 10, 20, 30, 40, and 50 inch sizes.

Attributes:

• Brand Name: RIGID Industries
• GTIN: 00849774033872
• A = LUX at 10 Meters: 3578.83
• AMP Draw @ 14V DC: 9.4
• B = Beam Distance with 1 LUX: 509.1
• C = Beam Distance with .25 LUX: 1196.5
• Field Horizontal (Measured in Degrees): 22
• Field Vertical (Measured in Degrees): 19.2
• Lighting Family: Revolve
• Numbers of LED's: 28
• Peak Beam Intensity (cd): 357883
• Product Weight: 8.1
• Raw Lumens: 20328
• Wattage: 169
• What's In The Package: Revolve 40" Light Bar, Mounting Hardware, SS L-Shape Brackets, Media Pack

Extended Information:

• Country of Origin: MX
• Emissions : 4

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 6 x 43.5 x 6 inches
• Weight: 11.5 POUNDS
