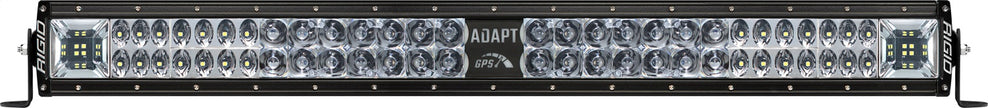

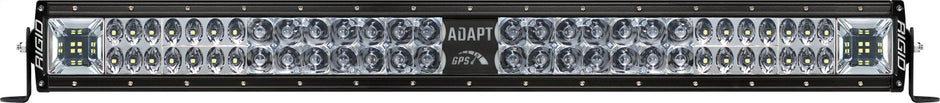

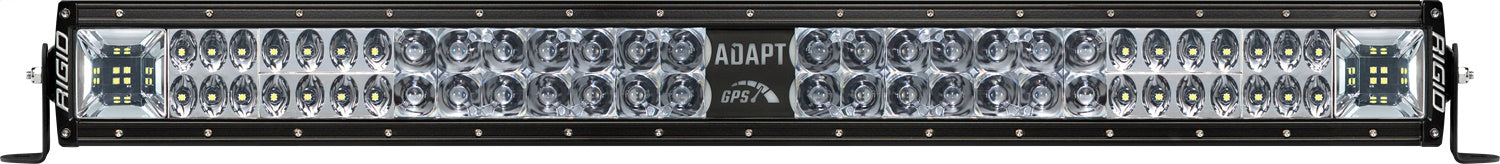

RIGID Adapt E-Series LED Light Bar With 3 Lighting Zones And GPS Module 30 Inch

The RIGID Adapt E-Series LED Light Bar features the same style and construction as RIGIDs legendary E-Series, from the high-strength aluminum heat sink to the unbreakable polycarbonate lens. On the inside, however, the Adapt E-Series contains cutting-edge technology. The Adapt E-Series takes off-road lighting performance to a whole new level with two layers of adaptive response to your vehicle and driving conditions.

• Use In Adapt Mode Or All On

Vehicle Specific

• Universal

Attributes:

• Brand Name: RIGID Industries
• GTIN: 00849774033148
• A = LUX at 10 Meters: 5,364
• ASIN: No
• Add-On: 11001, 11002, 11003, 11008, 46590, 1063, 1067, 1031, 30130, 30140, 30150
• B = Beam Distance with 1 LUX: 732
• C = Beam Distance with .25 LUX: 7,165
• Field Horizontal (Measured in Degrees): 17
• Field Vertical (Measured in Degrees): 16
• Number of LED's: 64
• Peak Beam Intensity (cd): 536,407
• Product Family: Adapt
• Product Weight: 8.78
• Raw Lumens: 20,944
• Size: 30 in.
• Watts: 170
• What's In The Package: Stainless Steel Mounting Brackets, Hardware Kit, Wire Harness, Relay, Switch, Install Instructions
• Zone 1 A: 50
• Zone 1 Amp Draw: 6.3
• Zone 1 B: 71.3
• Zone 1 C: 142.6
• Zone 1 Horizontal Field beam angle: 101.7
• Zone 1 LED's count: 8
• Zone 1 Peak CD: 5,087
• Zone 1 Raw Lm: 8,641
• Zone 1 Vertical Field beam angle: 97.2
• Zone 1 Watts: 88
• Zone 2 A: 1316.77
• Zone 2 Amp Draw: 10.6
• Zone 2 B: 362.9
• Zone 2 C: 725.7
• Zone 2 Horizontal Field beam angle: 49.2
• Zone 2 LED's count: 28
• Zone 2 Peak CD: 131,677
• Zone 2 Raw Lm: 19,040
• Zone 2 Vertical Field beam angle: 23
• Zone 2 Watts: 149
• Zone 3 A: 5364.07
• Zone 3 Amp Draw: 12.1
• Zone 3 B: 732.4
• Zone 3 C: 1464.8
• Zone 3 Horizontal Field beam angle: 17
• Zone 3 LED's count: 28
• Zone 3 Peak CD: 536,407
• Zone 3 Raw Lm: 20,944
• Zone 3 Vertical Field beam angle: 16.1
• Zone 3 Watts: 170
• test series: Universal Fit

Extended Information:

• Country of Origin: MX
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 6 x 33.25 x 6 inches
• Weight: 12 POUNDS
