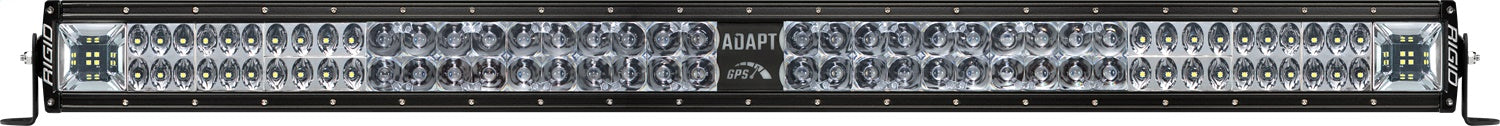

RIGID Adapt E-Series LED Light Bar With 3 Lighting Zones And GPS Module 40 Inch

The RIGID Adapt E-Series LED Light Bar features the same style and construction as RIGIDs legendary E-Series, from the high-strength aluminum heat sink to the unbreakable polycarbonate lens. On the inside, however, the Adapt E-Series contains cutting-edge technology. The Adapt E-Series takes off-road lighting performance to a whole new level with two layers of adaptive response to your vehicle and driving conditions.

• Use In Adapt Mode Or All On

Vehicle Specific

• Universal

Attributes:

• Brand Name: RIGID Industries
• GTIN: 00849774033162
• A = LUX at 10 Meters: 7,425
• ASIN: No
• Add-On: 11001, 11002, 11003, 11008, 46590, 1063, 1067, 1031, 30130, 30140, 30150
• B = Beam Distance with 1 LUX: 862
• C = Beam Distance with .25 LUX: 1,723
• Field Horizontal (Measured in Degrees): 17
• Field Vertical (Measured in Degrees): 16
• Number of LED's: 88
• Peak Beam Intensity (cd): 742,460
• Product Family: Adapt
• Product Weight: 10.84
• Raw Lumens: 29,920
• Size: 40 in.
• Watts: 231
• What's In The Package: Stainless Steel Mounting Brackets, Hardware Kit, Wire Harness, Relay, Switch, Install Instructions
• Zone 1 A: 52.85
• Zone 1 Amp Draw: 6.3
• Zone 1 B: 72.7
• Zone 1 C: 145.4
• Zone 1 Horizontal Field beam angle: 101.6
• Zone 1 LED's count: 8
• Zone 1 Peak CD: 5,285
• Zone 1 Raw Lm: 8,641
• Zone 1 Vertical Field beam angle: 96.4
• Zone 1 Watts: 88
• Zone 2 A: 1580.27
• Zone 2 Amp Draw: 13.5
• Zone 2 B: 397.5
• Zone 2 C: 795.1
• Zone 2 Horizontal Field beam angle: 50.6
• Zone 2 LED's count: 40
• Zone 2 Peak CD: 158,027
• Zone 2 Raw Lm: 25,520
• Zone 2 Vertical Field beam angle: 24.4
• Zone 2 Watts: 189
• Zone 3 A: 7424.6
• Zone 3 Amp Draw: 16.5
• Zone 3 B: 861.7
• Zone 3 C: 1723.3
• Zone 3 Horizontal Field beam angle: 17.5
• Zone 3 LED's count: 40
• Zone 3 Peak CD: 742,460
• Zone 3 Raw Lm: 29,920
• Zone 3 Vertical Field beam angle: 15.9
• Zone 3 Watts: 231
• test series: Universal Fit

Extended Information:

• Country of Origin: Mexico
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 6 x 43.25 x 6 inches
• Weight: 15 POUNDS
