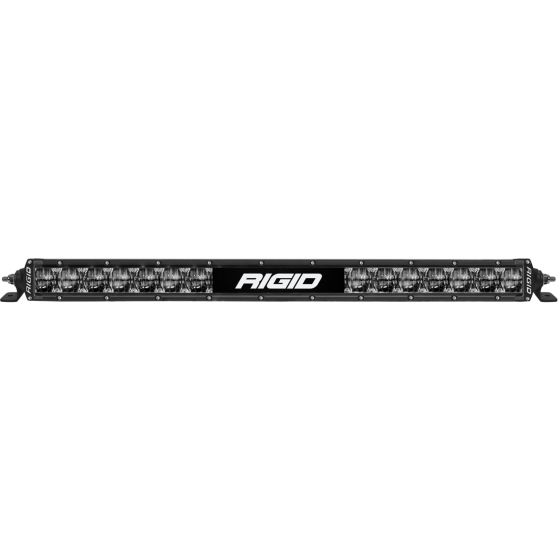

RIGID SR-Series 20 In Dual Function SAE Auxilary High Beam Driving Lights With Amber Backlight

Off-road auxiliary lighting is one thing, but everyone knows that it's important to have lighting that is also safe and legal for on-road use. RIGID's SAE Compliant Fog Lights and Auxiliary High Beam Driving Lights allow them to be used on-the-road and not just off-road. RIGID created the proprietary output spread and height with the new patented Clarilux(TM) optic system. The color temperature of these LEDs was carefully chosen to be a perfect range of pure daylight to penetrate the night for superior clarity on the road. These SAE Compliant lights project long-range high intensity light while drawing very little power and provide up to 50,000 useful hours. As an added function, the SR-Series SAE compliant lights offer Amber backlighting. This feature can be ran independently, or in tandem with the forward projecting LEDs. The low profile design includes a High-Grade Aluminum Alloy Housing with a custom designed oversized heat sink to keep the LEDs running cooler, brighter and longer. Combine this with the strength of a polycarbonate lens

• Toggleable Amber Backlight

Vehicle Specific

• Universal

Attributes:

• Brand Name: RIGID Industries
• GTIN: 00849774033827
• A = LUX at 10 Meters: 342.6
• Amp Draw: 6.8
• B = Beam Distance with 1 LUX: 185.1
• C = Beam Distance with .25 LUX: 370.2
• Field Horizontal (Measured in Degrees): 68.7
• Field Vertical (Measured in Degrees): 10.2
• Lighting Family: SR-Series
• Number of LED's: 28
• Peak Beam Intensity (cd): 34,263
• Product Family: Fog Lights
• Product Weight: 5.3
• Raw Lumens: 8,253
• Watts: 95
• What's In The Package: SR-Series 20 Inch Dual Function SAE Auxiliary High Beam Driving Lights with Amber Backlight, two black powder coated L-shape brackets, mounting Hardware, wiring harness
• test series: Universal Fit

Extended Information:

• Country of Origin: MX
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 6 x 25.3125 x 6 inches
• Weight: 8.7 POUNDS
