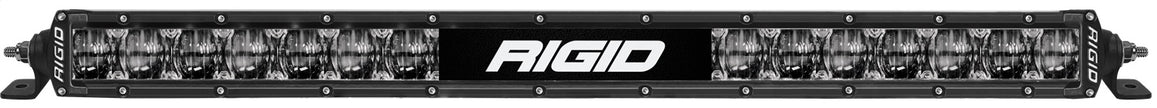

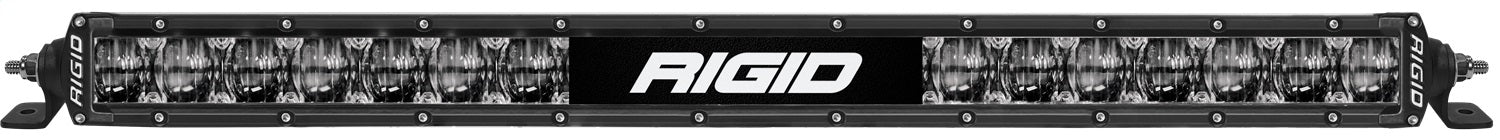

RIGID SR-Series DOT/SAE J581 20 Inch Dual Function White Auxiliary High Beam LED

Off-road auxiliary lighting is one thing, but everyone knows that it is important to have lighting that is also safe and legal for on-road use. RIGID SAE Compliant street legal Fog Lights and Auxiliary High Beam Driving Lights allow them to be used on-the-road and not just off-road. RIGID created the proprietary output spread and height with the new patented optic system. The color temperature of these LEDs was carefully chosen to be a perfect range of pure daylight to penetrate the night for superior clarity on the road. These SAE Compliant lights project long-range high intensity light while drawing very little power and provide up to 50,000 useful hours. Available in many housing sizes, including SR-M, SR-Series single row, E-Series double row and D-Series pods. As an added function, the 20 and 30 Inch SR-Series SAE LED light bars offer a bold backlit RIGID branding plate. This feature can be run independently, or in tandem with the forward projecting LEDs. The low-profile optic design, advanced engineered heat sink, durability and the highest quality of strength of a polycarbonate lens is the ultimate solution for your street-legal lighting needs in North America. Own The Night with RIGIDs street legal LED lights.

• White LED Light

Vehicle Specific

• Universal

Attributes:

• Brand Name: RIGID Industries
• GTIN: 00849774030932
• A = LUX at 10 Meters: 342.6
• ASIN: No
• Add-On: 131664, 131784, 1063, 1067, 1031, 30130, 30140, 30150
• Amp Draw: 6.8
• B = Beam Distance with 1 LUX: 185.1
• C = Beam Distance with .25 LUX: 370.2
• Field Horizontal (Measured in Degrees): 68.7
• Field Vertical (Measured in Degrees): 10.2
• Number of LED's: 28
• Peak Beam Intensity (cd): 34,263
• Product Family: SAE
• Product Weight: 4.7
• Raw Lumens: 8,253
• Watts: 95
• What's In The Package: Light, mounting hardware, harness
• test series: Universal Fit

Extended Information:

• Country of Origin: Mexico
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 22.85 x 6 x 6 inches
• Weight: 9 POUNDS

PDF:
