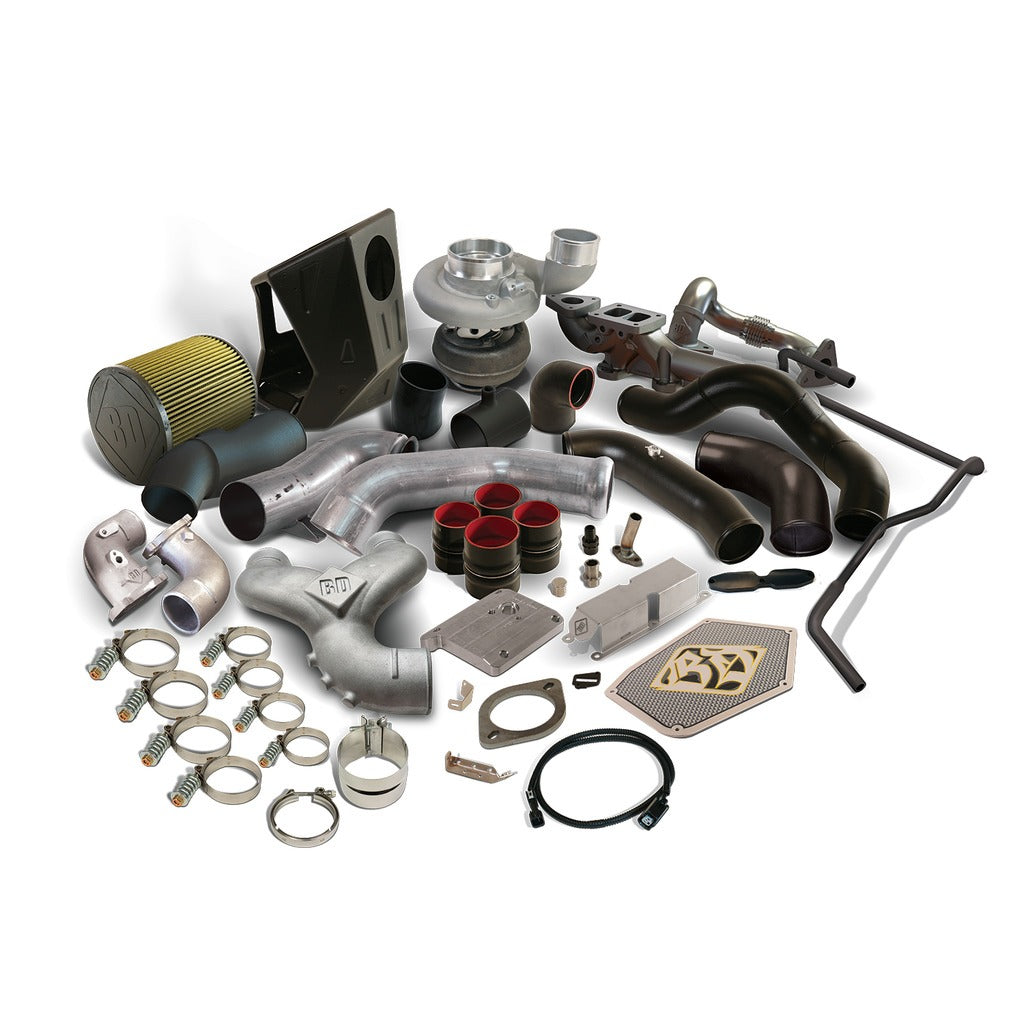

Scorpion S369SX-E Turbo Kit - Ford 2011-2016 6.7L F250/F350

Designed with both reliability and performance in mind, the BD scorpion kit grants you the opportunity to take advantage of high-flow Borg Warner S300 SXE or S400 SXE turbochargers. The turbocharger is mounted directly to a BD cast iron T4 manifold, built to maximize both durability and performance. To minimize EGT's, a smooth-wall Y-bridge evenly distributes air to all eight cylinders. From stock hp levels, to those wanting to push past 700hp, the BD Scorpion Kit is the perfect combination of performance a reliability.

• Borg Warner S369SX-E series turbocharger with FMW
• Race tune required (not included)
• 1.00 AR Ratio
• BD 90-deg compressor cover with 2.75in outlet
• BD high performance T4 flanged exhaust manifold, stainless heatshield and crossover tube
• BD billet aluminum pedestal block with oil drain and feed. Includes 1/8 NPT water feed port if using water cooled waste gate (Or CHRA).
• BD high strength A356 aluminum intake horns
• BD high strength A356 Y-Intake with meth, NOS and boost pressure sensor bosses
• BD custom 4in cold air intake with 8in OD high-flow velocity stacked filter
• BD complete high flow aluminized 4in downpipe that mates to stock flange position for easy install to stock or aftermarket exhaust systems
• BD cold air charge tubes, 3.5in intercooler to intake tubes with pressure sensor provision
• Stainless heat shield keeps heat in and intake temperatures down
• Incorporated dual 1/8 NPT EGT ports as well as the provision to use a factory EGT sensor
• BD Boot Lock ready with boss positions on intake and outlets
• Compatible with stock or aftermarket water-to-air intercooler
• Larger turbochargers available for even higher horsepower

Attributes:

• Brand Name: BD Diesel
• GTIN: 00990011405713
• Box 1 Height: 24.00
• Box 1 Length: 24.00
• Box 1 Weight: 87.00
• Box 1 Width: 24.00
• Box 2 Height: 14.00
• Box 2 Length: 14.00
• Box 2 Weight: 41.00
• Box 2 Width: 14.00
• Engine: 6.7L Powerstroke 11-16
• Make: Ford
• Suggested Product: 1027150
• Wheel Size: S369SX-E

Extended Information:

• Country of Origin: CA
• Emissions : Racing or Pre-Emissions Use Only
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24 x 24 x 38 inches
• Weight: 128 POUNDS
