The Sport system features American made coil springs that are a Dual Rate design allowing for long travel suspension use offroad with a smooth highway ride. The first stage of the spring provides a soft ride with the ability to extend for additional travel. The second stage is designed to handle the payload of the vehicle and address large impact absorption at higher speeds. The Dual Rate coil springs are corner specific to the JL. This keeps the vehicle level side to side while allowing for increased suspension travel. Four bump stops extensions utilize the factory bump stops for compliant cushioning at full compression. The extensions retain the stock down travel to eliminate over cycling of the suspension and driveline. The extended length front and rear sway bar links with urethane bushings reposition the bars to work within the factory operating planes. By extending the length of the links, it prevents the sway bar from going over center and creating bind at full extension travel. A heavy duty rear track bar bracket re-centers the axle while retaining the factory roll center of the vehicle with the increased ride height.

Everything You Will Need To Lift Your Vehicle
Increased Leaf Spring Flexibility
No Welding Or Cutting
Ride Quality Enhancement
Increased Travel And Articulation
Easy Installation

Attributes:

Brand Name: Fabtech
GTIN: 00674866113329
Lift/Drop Height: 3
WARNING CA Proposition 65: Yes
WARNING CA Proposition 65 Message: WARNING: Cancer and Reproductive Harm-www.P65Warnings.ca.gov

Extended Information:

Country of Origin: US
Emissions : CARB Eligible

Packing Information:

Quantity of Each: 1.0
Package UOM: EA
Dimension: 39.0000 x 31.5800 x 15.0000 inches
Weight: 121.3000 POUNDS

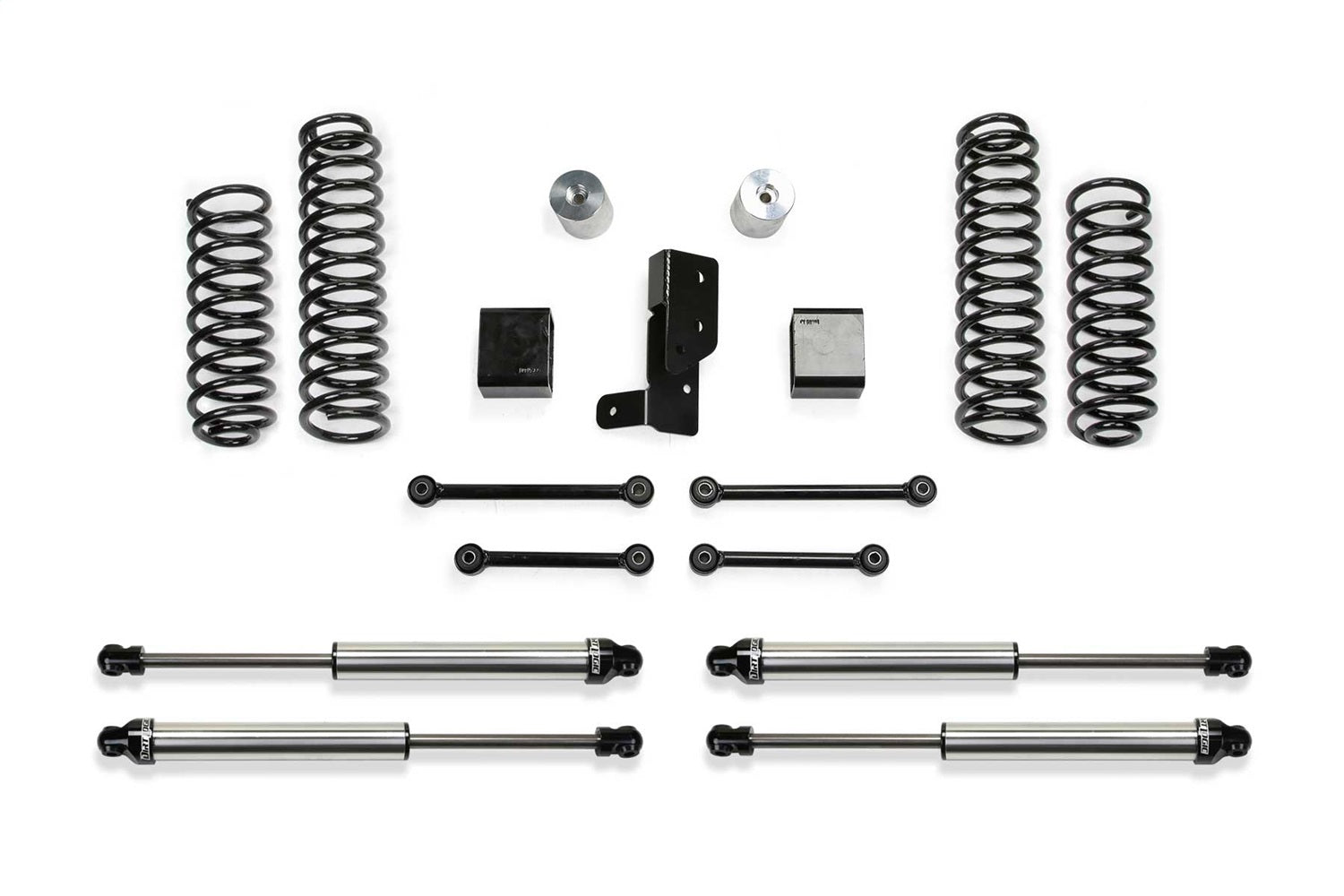

Sport Lift System W/Shock
