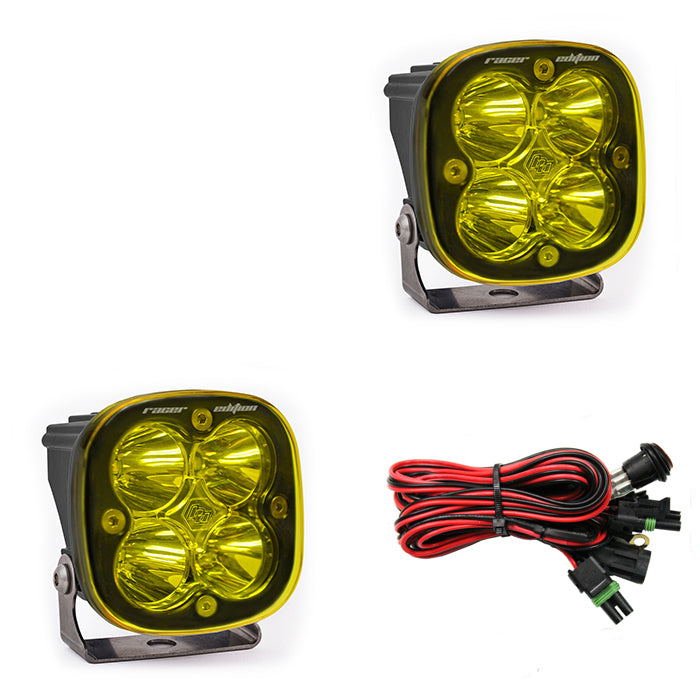

Squadron Racer Edition LED Light Pod Pair (Racer Spot; Baja Amber)

The Baja Designs Squadron Racer Edition LED lights are meant for high-speed night driving where reaction time is paramount. Don’t let the compact size of these lights fool you, with our next generation LEDs offering 2,800 raw lumens at only 45.5W while making the Squadron Racer more efficient giving 81% greater distance over our prior generation model. The tight beam of the Squadron Racer is for those that drive near triple digits speeds, or need to see thousands of feet down the road illuminating Lighting Zone 5. Producing an even tighter beam pattern than our traditional spot offerings, the Squadron Racer Edition lights are recommended to be added to a well-balanced lighting package to avoid separation of spotlights due to the tight pattern. The sleek, black gloss aluminum housing offers enthusiasts the durability needed when traveling at higher speeds. Backed by our 30-Day Satisfaction Guarantee and Lifetime Limited Warranty for the ultimate in purchase protection. NOTE: This light does not come with a wiring harness. The applicable wiring harness for this light is 640117.

• 5W while making the Squadron Racer more efficient giving 81% greater distance over our prior generation model

Attributes:

• Brand Name: Baja Designs
• GTIN: 00819314022017
• Add-On: Accessories-447113-Angled Bezel
• Amperage Rating (A): 3.300
• Average Rated Life (hr.): 49,930
• Beam Pattern: Racer Spot
• Bezel Material: Powder Coated Cast Aluminum
• Brightness (Lumens): 2800
• DES: Squadron Racer Edition LED Auxiliary Light Pod Pair
• Depth (in.): 2.770
• Description: Racer Spot; Amber; Pair
• EXT: Squadron Racer Edition LED Light Pod Pair (Racer Spot; Baja Amber)
• Height (in.): 3.070
• Housing Color: Black
• Housing Material: Hard Anodized and Powder Coated Cast Aluminum
• Length (in.): 3.070
• Lens Color: Amber
• Lens Material: Hardcoated Polycarbonate
• Light Quantity: 2
• Lighting Modes: Beam
• Lighting Quantity: 4
• Lighting Technology: High Intensity Cree LED
• Lighting Type: Forward Projecting
• Mounting Hardware Included: Yes
• Mounting Hardware Material: Stainless Steel
• Overvoltage Protection: Built-In
• Product Type: Squadron Racer Edition LED Light Pod Pair w/ Wiring Harness
• Standards/Compliance (Durability): Exceeds MIL-STD810G (Mil-Spec Testing)
• Standards/Compliance (Impact Resistance): IK10 Compliant (Mechanical Impact Testing)
• Standards/Compliance (Water Resistance): IP69K (Waterproof up to 9ft & Pressure Washable)
• TLE: Squadron Racer Edition LED Light Pod Pair (Racer Spot; Baja Amber)
• Wattage (W): 45.540
• Weight (lbs.): 0.750
• Wiring Harness Included: Yes

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Weight: 0 POUNDS

PDF:
