Brand new for Baja Designs is our SAE certified light. This light is based off of our Squadron series. While there are many visual characteristics that stayed the same the pattern, and circuitry are optimized in order to give our SAE light a street legal punch! We’ve put this light through rigorous tests to ensure that it would be an upgrade from most LED, HID, and Halogen factory fog lights.
- NOTE: uService(R) is NOT a feature of SAE products. If tampered, it will void the warranty. Our Limited Lifetime Warranty is valid only if sent back for repairs.
Attributes:
-
Brand Name: Baja Designs
-
GTIN: 00810031747412
-
Add-On: Accessories-447113-Angled Bezel
-
Amperage Rating (A): 2.1
-
Average Rated Life (hr.): 49930
-
Beam Pattern: SAE Fog
-
Bezel Material: Powder Coated Cast Aluminum
-
Brightness (Lumens): 2420
-
DES: Squadron SAE LED Auxiliary Light Pod Pair
-
DOT Approved: No
-
Depth (in.): 2.770
-
Description: SAE Fog; Clear; Pair
-
EXT: Squadron SAE LED Light Pod Pair (SAE Fog; Clear)
-
Height (in.): 3.070
-
Housing Color: Black
-
Housing Material: Hard Anodized and Powder Coated Cast Aluminum
-
Length (in.): 3.070
-
Lens Color: Clear
-
Lens Material: Hardcoated Polycarbonate
-
Light Quantity: 2
-
Lighting Modes: Beam
-
Lighting Quantity: 4
-
Lighting Technology: Forward Projecting
-
Lighting Type: Cree LED
-
Mounting Hardware Included: Yes
-
Mounting Hardware Material: Stainless Steel
-
Overvoltage Protection: Built-In
-

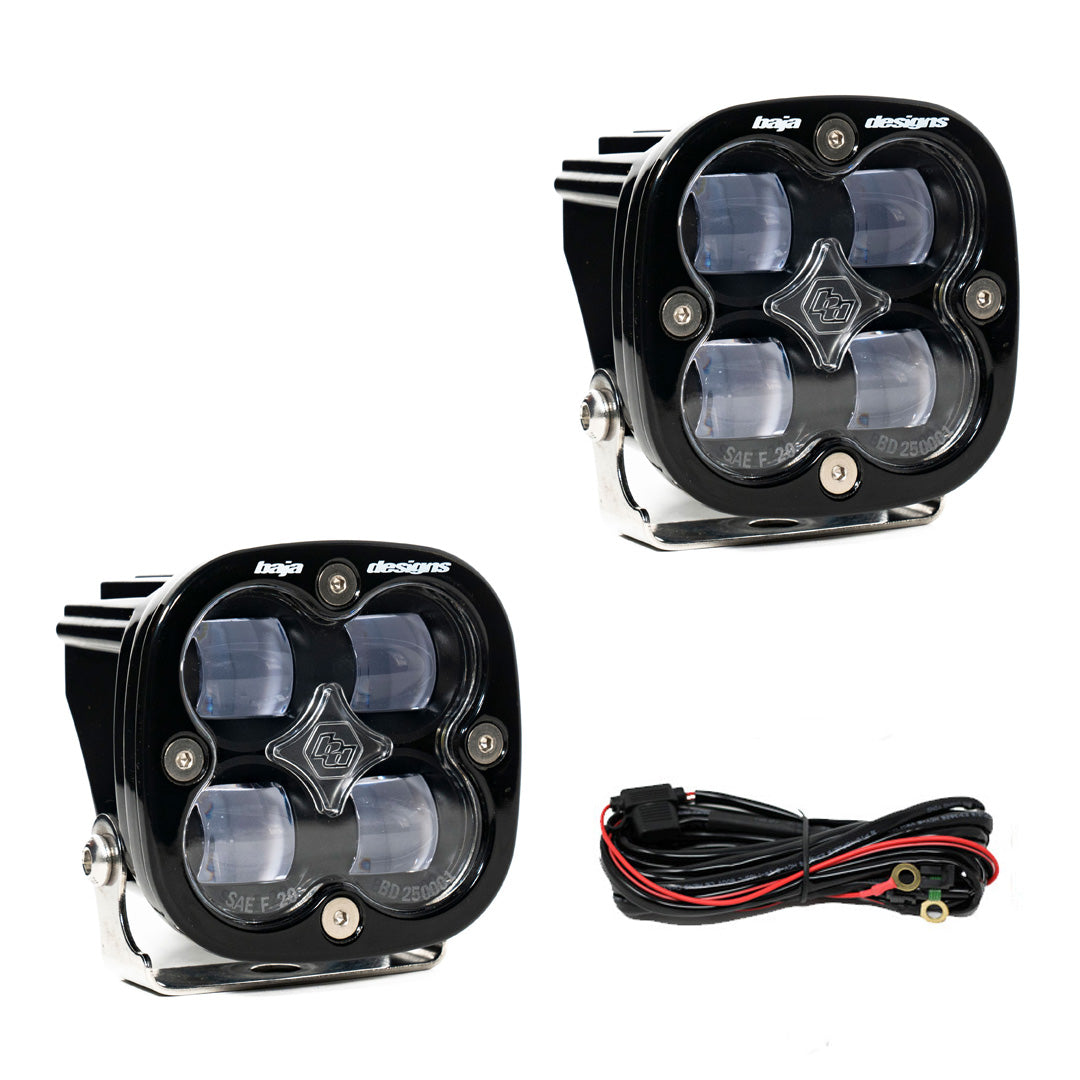

Product Type: Squadron SAE LED Light Pod Pair w/ Wiring Harness
-
Standards/Compliance (Durability): Exceeds MIL-STD810G (Mil-Spec Testing)
-
Standards/Compliance (Impact Resistance): IP69K (Waterproof up to 9ft & Pressure Washable)
-
Standards/Compliance (SAE): SAE Standard J583
-
Standards/Compliance (Water Resistance): IK10 Compliant (Mechanical Impact Testing)
-
Street Legal: Yes
-
TLE: Squadron SAE LED Light Pod Pair (SAE Fog; Clear)
-
Wattage (W): 29
-
Weight (lbs.): 0.750
-
Wiring Harness Included: Yes
Extended Information:
-
Country of Origin: US
-
Emissions : Emissions Compliance Exempt
-
Life Cycle Status: Available To Order
Packing Information:
-
Quantity of Each: 1
-
Package UOM: EA
-
Weight: 0 POUNDS
