Super B Killer SX-E S361 Turbo Kit - Dodge 1994-2002 5.9L

All kits come with everything you need to allow for an easy install. Now get these kits with Borg Warner SX-E turbo options and expect even more. A BD exclusive feature of the SX-E turbos is that they are waste-gated to mount on stock T3 manifolds.

• BD Single Turbo kits cover a range of turbos that are an easy complete bolt-on performance replacement for your OEM turbo, providing enough air for more power, response and reliability
• BD's HD Waste gate and bracket holds boost and prevents over speed damage
• Turnbuckle Boost Control allows for ease of adjustment for altitude and extreme tuning

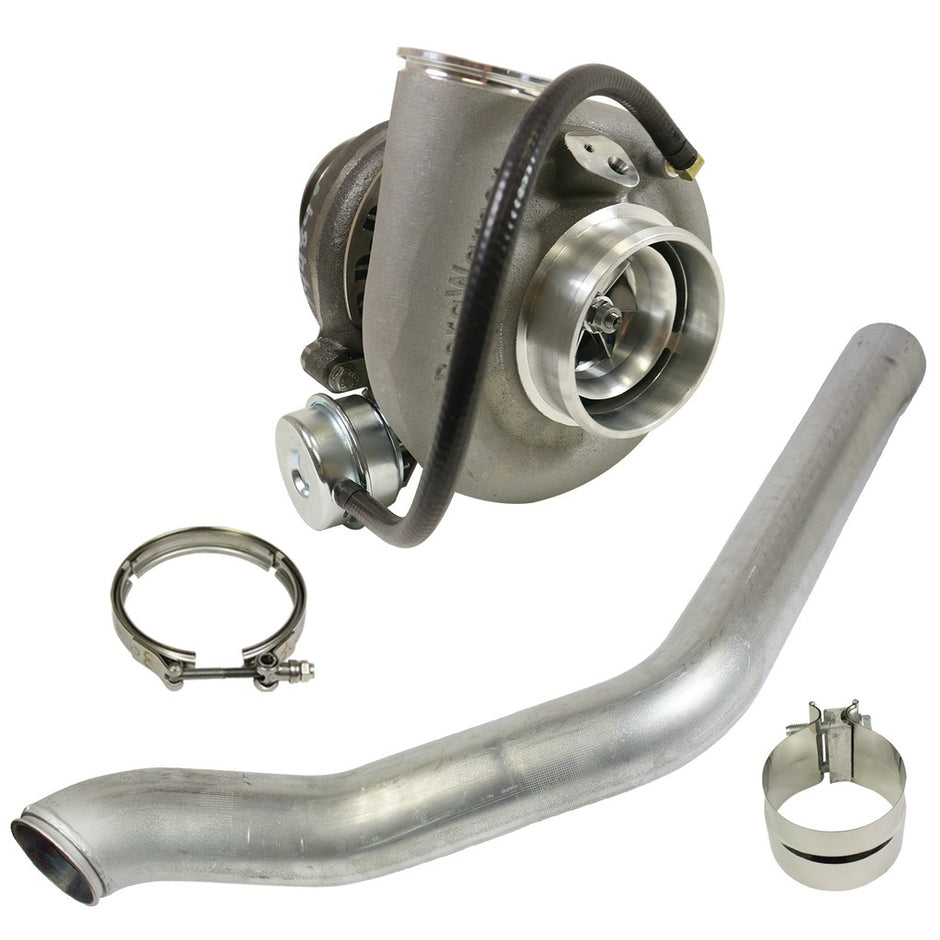

• Kit comes with downpipe, V-band clamp, band clamp
• Comp Wheel: 61.44mm 2.42in
• Turbine Wheel: 76mm 2.99in
• A/R Ratio: 0.80
• Flow: 77 Lb./min
• Approximate rated 500hp (depending on truck configuration)
• The SX-E turbo was designed for performance with a 360 thrust bearing and enhanced compressor wheel and housing
• Larger compressor blade surface but with a smaller inducer results in quicker spooling, more flow than similar sized wheels
• The high strength FMW Forged Milled Wheels are lighter and stronger and withstand higher wheel speeds
• BD exclusive feature of a heavy sprung waste-gated T3 turbine housing that mounts onto stock exhaust manifolds

Attributes:

• Brand Name: BD Diesel
• GTIN: 00990011405546
• Engine: 5.9L Cummins 98.5-02 24-Valve
• Make: Dodge
• Suggested Product: 1453521

Extended Information:

• Country of Origin: CA
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 64 x 14 x 13 inches
• Weight: 62 POUNDS
