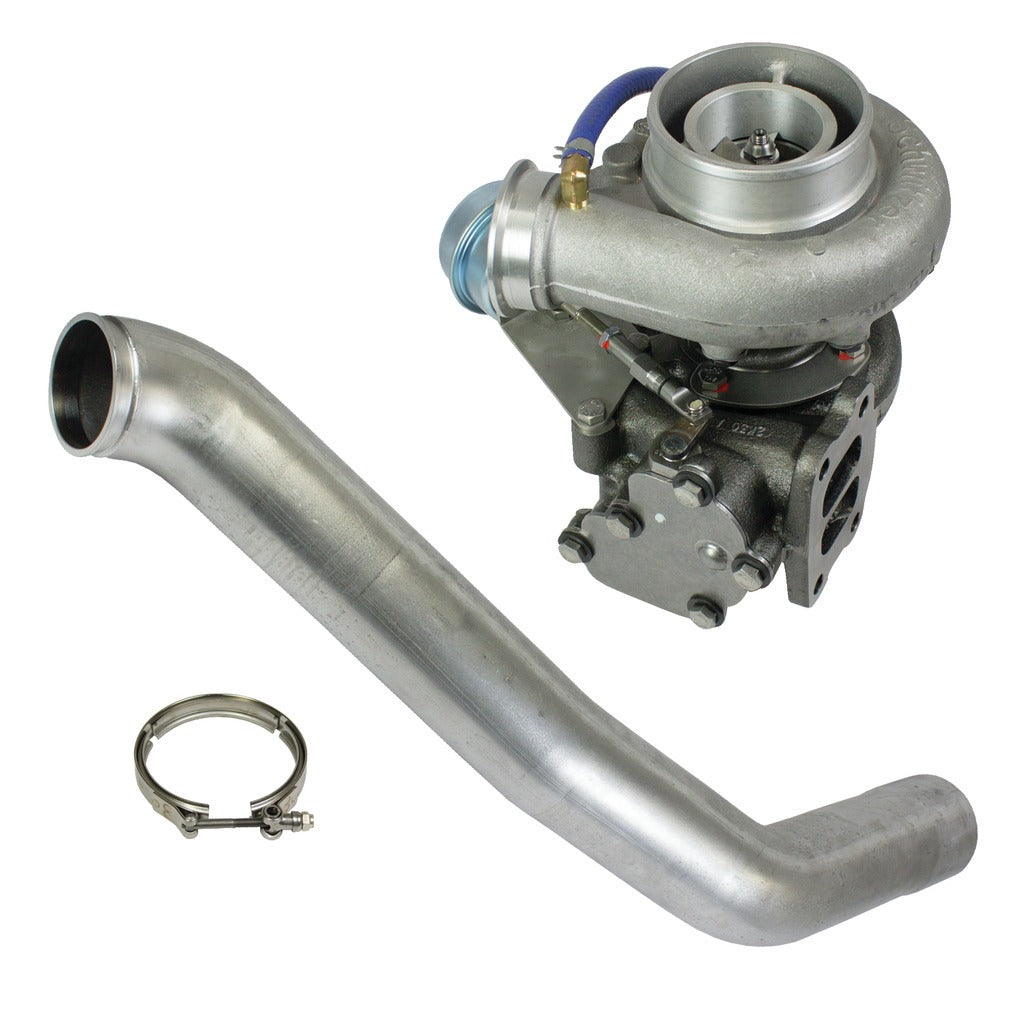

Super B Single SX S358 Turbo Kit W/FMW Billet Wheel - Dodge 1994-2002 5.9L

Designed for 1994-2007 5.9L Dodge trucks, the Super B Single supports modified applications making 250-425 rwhp. Featuring Borg Warner's unique Extended Tip compressor wheel technology and low inertia, full-floating journal bearings, these turbos utilize BD's unique dual-volute turbine housing. This proven design utilizes low rpm exhaust pulses for improved turbine response, while the dual-action waste gate bleeds off turbine drive pressure from both volutes. BD's turbo systems also feature a heavy-duty waste gate actuator that prevents premature opening caused by high exhaust pressure. You can even fine-tune for ambient temperature and barometric pressure changes using BD's adjustable waste gate control. The Super B single offers quick spool-up, cooler EGT's and no compressor surge. All kits come with everything you need to allow for an easy install.

• Forged Milled Billet Wheel
• Quick spool-up with no surging
• Cooler EGTs & less smoke
• Special low inertia, full-floating 6-pad thrust bearings, not 3 pad like box turbos
• Dual volute T3 turbine housing utilizes low rpm exhaust pulses for improved turbine response
• Efficient positive boost-to-drive pressure ratio yields high power with low EGTs
• Perfect fitment to the stock turbocharger inlet connection points
• BD's HD Waste gate and bracket holds boost and prevents over speed damage
• Turnbuckle Boost Control allows for ease of adjustment for altitude and extreme tuning
• Most systems can be upgraded to a twin system for more power or even better towing performance
• 870 CFM / 450 HP
• Comp Wheel: 58mm 2.28in
• A/R Ratio: 0.80
• Downpipe, V-Band Clamp, Band Clamp
• Turbine Wheel: 74mm 2.91in
• Custom built to BD specifications, not a box turbo

Attributes:

• Brand Name: BD Diesel
• GTIN: 00990011401678
• Engine: 5.9L Cummins 98.5-02 24-Valve
• Make: Dodge
• Suggested Product: 1041550

Extended Information:

• Country of Origin: Canada
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 64 x 14 x 13 inches
• Weight: 65.4 POUNDS

PDF:
