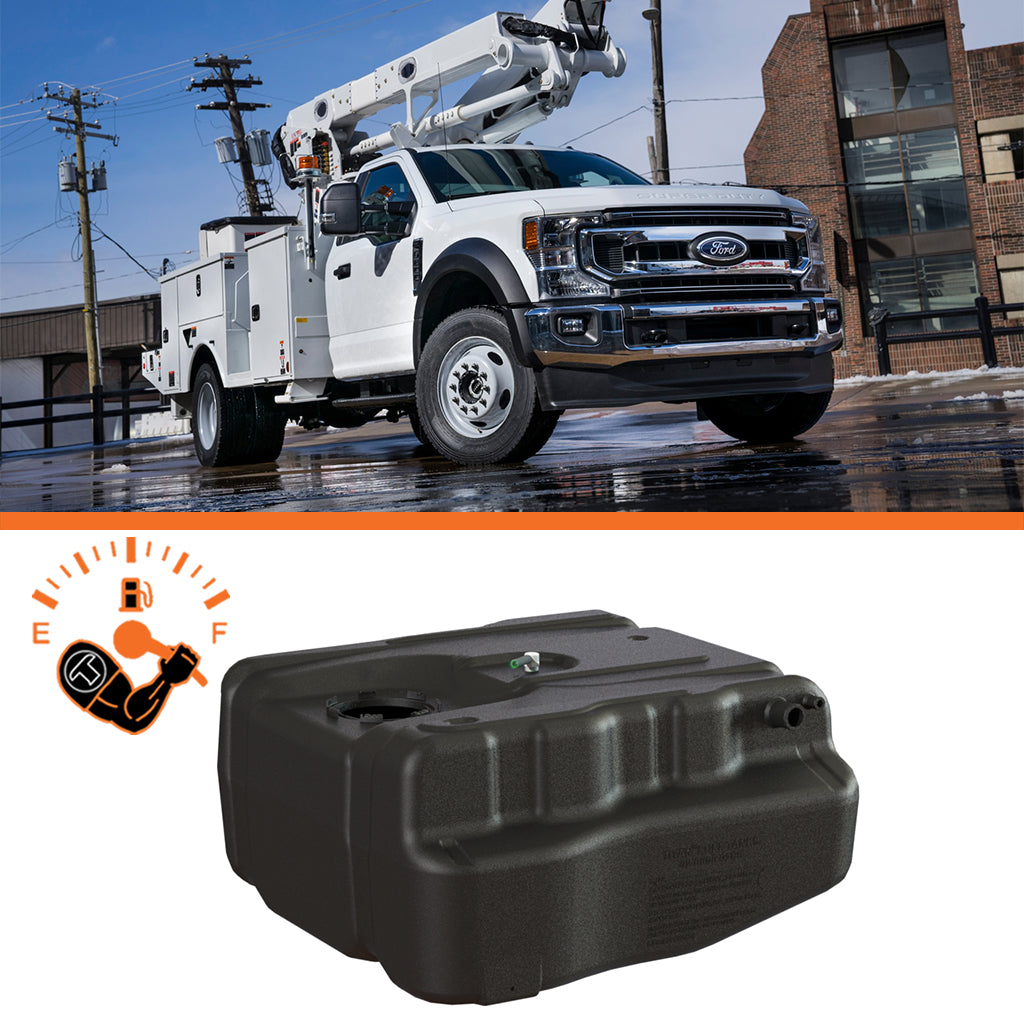

Titan Fuel Tanks After-Axle Auxiliary Tank - 4020217

Additional Details. TITAN's Electronic Controller provides complete fuel control with a single touch. The operator has complete and total flexibility in managing how extra fuel capacity is used. The fuel can be held in reserve or transferred on-the-go as the need arises. The controller's illuminated user interface indicates the tank's fuel level and features a single-touch button that starts the fuel transfer sequence. With one touch, fuel begins transferring from the auxiliary tank to the vehicle's primary fuel tank, the pump will run for approximately 10 minutes, transferring 5 gallons of fuel. If the primary tank fills during that time, the pump will automatically stop pumping fuel. A great feature is that TITAN's Controller only requires a power wire and a ground. It does not invade the trucks wiring harness or computers. Optional filler neck assembly is also available. (P/N 9900025). Replacement fuel pump filters are available at your local auto parts store. Hastings Part Number: GF3 or Baldwin Part Number: BF836

• Super Durable Military Grade Polymer, Cross-Linked Polyethylene (XLHDPE)
• Nearly 200 Times Less Heat & Cold conductive than Metal Tanks
• No Condensation, No Corrosion, and Easy to Install
• Compatible with most bio-diesel fuel
• Exclusive TITAN Sending Unit Mounting System

Vehicle Specific

• 2017-2022 FORD F-350 F-450 & F-550(Regular Extended & Crew Cab-Cab and Chassis)

Attributes:

• Brand Name: Titan Fuel Tanks
• GTIN: 00848135001604
• California Restriction: No
• Increased Capacity (US Gallons): 40
• Merch Code: Fuel Distribution Parts/Accessories (Automotive)
• Position: N/A
• Sales in Canada: Yes
• Stock Tank Capacity (US Gallons): 26.5
• TITAN Tank Capacity (US Gallons): 40
• Truck Freight: No
• USMCA Origin Criterion: B

Extended Information:

• Country of Origin: US
• Emissions : 4
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each:
• Package UOM:
• Dimension: 19 x 36 x 31 inches
• Weight: 60 POUNDS
