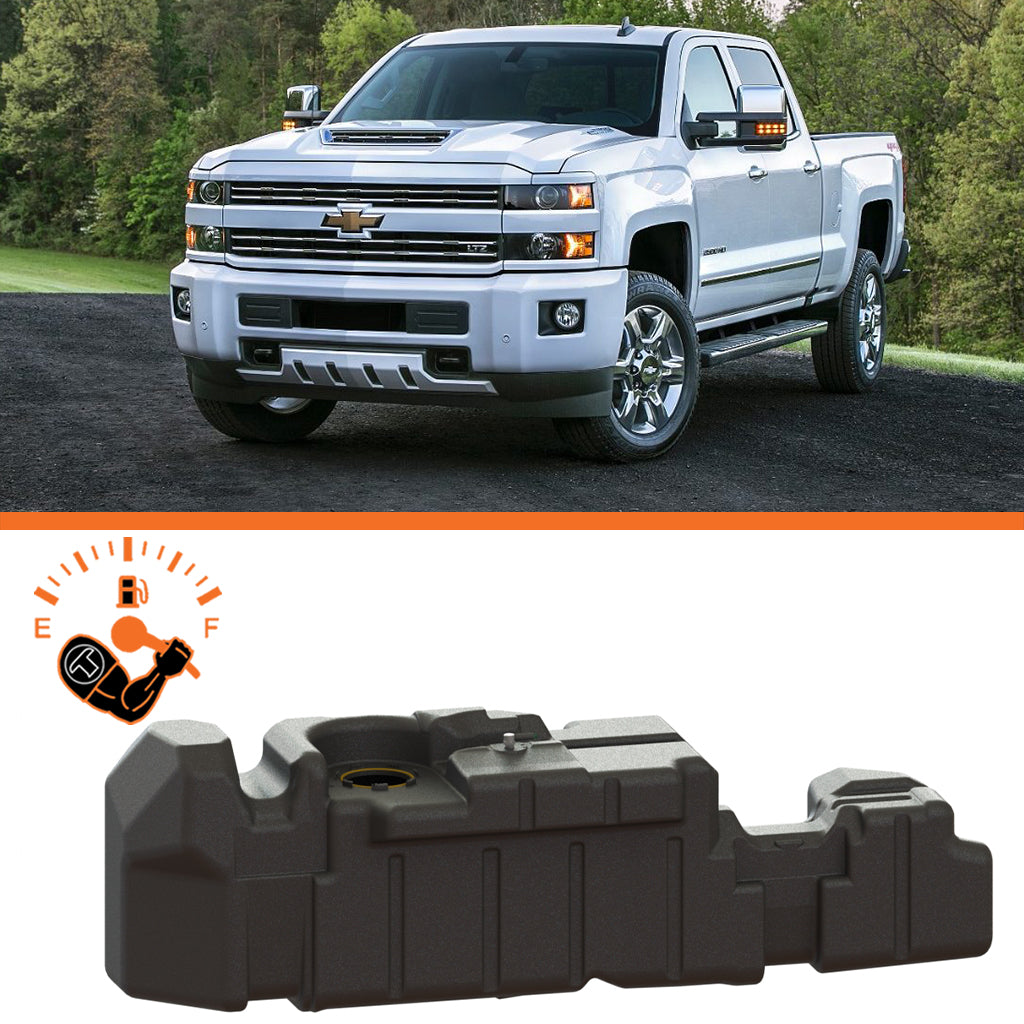

Titan Fuel Tanks Extra Large Midship Tank - 7010217

The TITAN tank is 20 gallons larger at 56 gallons. The stock tank is only 36 gallons. Will not interfere with powered steps, air bag systems. Our mid-ship, direct replacement fuel tanks are designed to use your trucks stock/OE sending unit. However, our tanks are compatible with Fleece, AirDog, FASS, etc. This tank does not fit with the B&W model 1016 Turnoverball Hitch or the Curt model 60642.Technical Service Bulletin. Affected vehicles: 2019+ GM 6.6L diesel trucks. Issue: Fuel gauge drops to empty after Initial Install and during normal operation. Explanation: GM trucks have the ability through programming and monitoring to know exactly how much fuel is in the tank, as well as fuel consumption based on miles driven and fuel economy. Any large capacity fuel tank causes the float to move slower than the computer thinks is acceptable. When the computer sees this, it will run a system check and drop the fuel gauge to empty. When the fuel level comes off full, the gauge should return to the correction position after restarting the vehicle. Solution: Although we were told early on that trucks have fixed themselves after several tanks of fuel when following a specific process, we are no longer able to confirm this or any other permanent fix for this issue. If this is a concern for you, we recommend using an aftermarket digital monitor to confirm accurate fuel level when this occurs.

• Super Durable Military Grade Polymer, Cross-Linked Polyethylene (XLHDPE)
• Nearly 200 Times Less Heat & Cold conductive than Metal Tanks
• No Condensation, No Corrosion, and Easy to Install
• Compatible with most bio-diesel fuel
• Exclusive TITAN Sending Unit Mounting System

Vehicle Specific

• 2017-2019 GM 2500 & 3500(Crew Cab-Short Bed)

Attributes:

• Brand Name: Titan Fuel Tanks
• GTIN: 00848135001628
• California Restriction: No
• Increased Capacity (US Gallons): 20
• Merch Code: Fuel Distribution Parts/Accessories (Automotive)
• Position: N/A
• Sales in Canada: Yes
• Stock Tank Capacity (US Gallons): 36
• TITAN Tank Capacity (US Gallons): 56
• Truck Freight: No
• USMCA Origin Criterion: B

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each:
• Package UOM:
• Dimension: 21 x 69 x 22 inches
• Weight: 60 POUNDS
