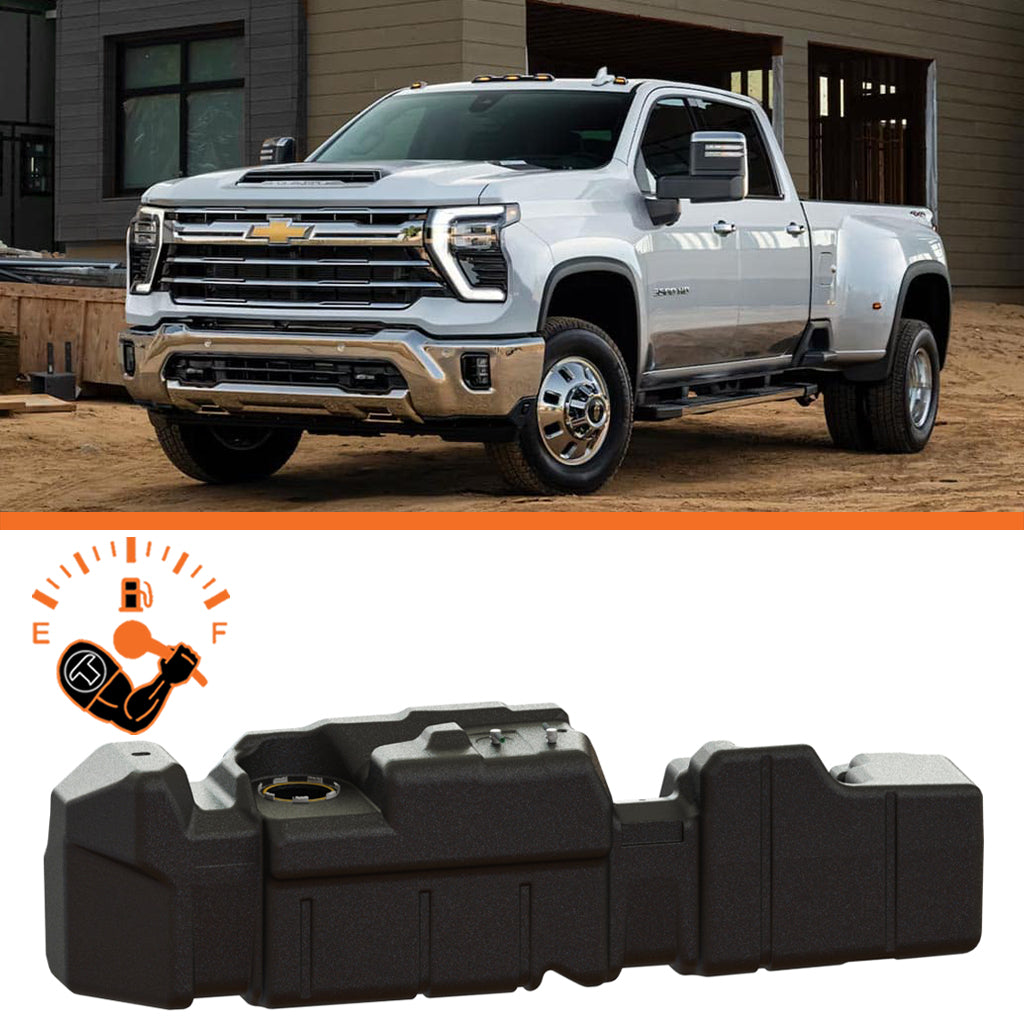

Titan Fuel Tanks Extra Large Midship Tank - 7010320

The TITAN tank is 24 gallons larger at 60 gallons. The stock tank is only 36 gallons. Hellwig aftermarket rear sway bar #7782 is not compatible with this tank. Will not interfere with powered steps, air bag systems and most other accessories. Our mid-ship, direct replacement fuel tanks are designed to use your trucks' stock/OE sending unit. However, our tanks are compatible with Fleece, AirDog, FASS, etc. Technical Service Bulletin. Affected vehicles: 2019+ GM 6.6L diesel trucks. Issue: Fuel gauge drops to empty after Initial Install and during normal operation. Explanation: GM trucks have the ability through programming and monitoring to know exactly how much fuel is in the tank, as well as fuel consumption based on miles driven and fuel economy. Any large capacity fuel tank causes the float to move slower than the computer thinks is acceptable. When the computer sees this, it will run a system check and drop the fuel gauge to empty. When the fuel level comes off full, the gauge should return to the correction position after restarting the vehicle. Solution: Although we were told early on that trucks have fixed themselves after several tanks of fuel when following a specific process, we are no longer able to confirm this or any other permanent fix for this issue. If this is a concern for you, we recommend using an aftermarket digital monitor to confirm accurate fuel level when this occurs.

• Super Durable Military Grade Polymer, Cross-Linked Polyethylene (XLHDPE)
• Nearly 200 Times Less Heat & Cold conductive than Metal Tanks
• No Condensation, No Corrosion, and Easy to Install
• Compatible with most bio-diesel fuel
• Exclusive TITAN Sending Unit Mounting System

Vehicle Specific

• 2020-2026 GM 2500 & 3500(Crew Cab-Long Bed)

Attributes:

• Brand Name: Titan Fuel Tanks
• GTIN: 00848135001703
• Attached Sump: No
• Baffled Sump: Yes
• California Restriction: No
• Capacity: 60
• Color: Black
• Fuel Pump Included: No
• Fuel System Compatibility: Electronic Fuel Injection
• Grade Type: Performance
• Increased Capacity (US Gallons): 24
• Material: Polyethylene (PE)
• Material Thickness: 6.35
• Merch Code: Fuel Distribution Parts/Accessories (Automotive)
• Mounting Straps Included: Yes
• O-Ring Included: Yes
• Position: N/A
• Sales in Canada: Yes
• Sending Unit Included: No
• Stock Tank Capacity (US Gallons): 36
• TITAN Tank Capacity (US Gallons): 60
• Truck Freight: No
• USMCA Origin Criterion: B

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each:
• Package UOM:
• Dimension: 20 x 75 x 23 inches
• Weight: 80 POUNDS
