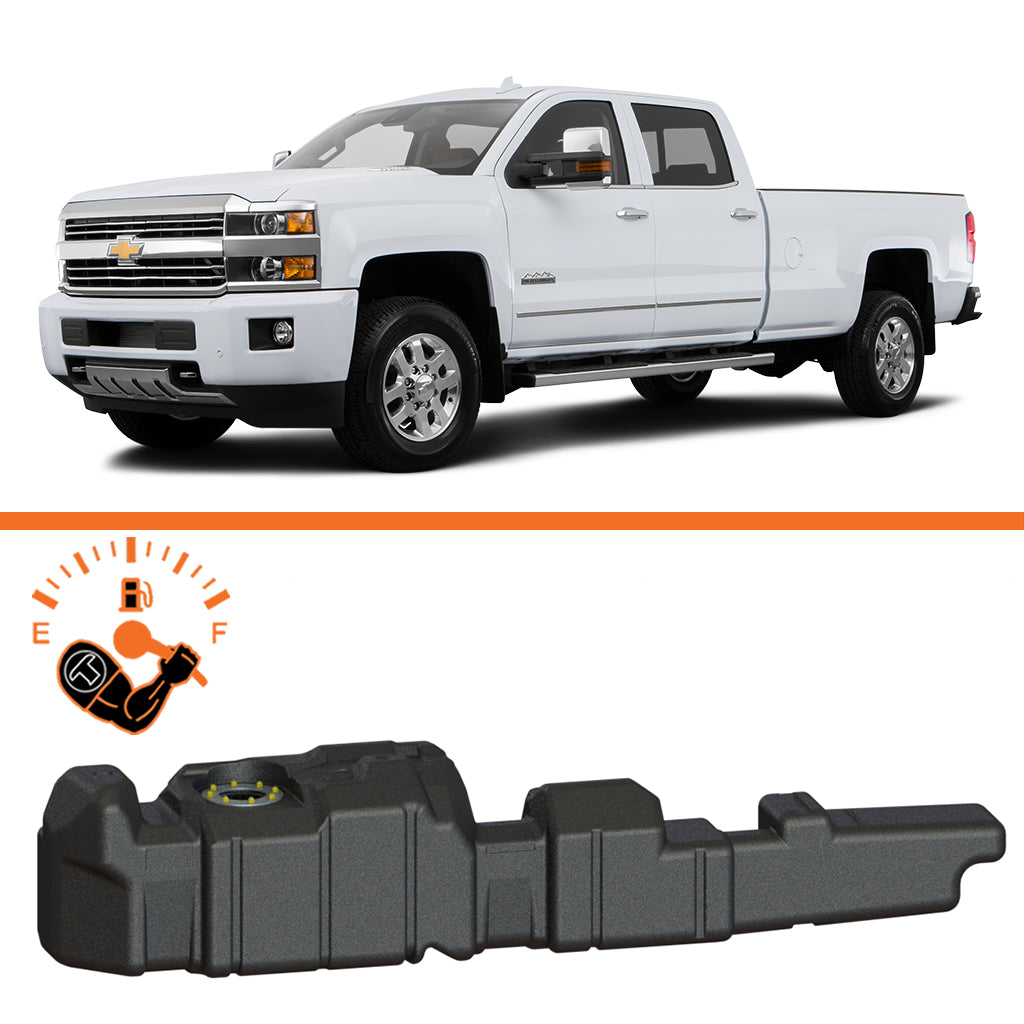

Titan Fuel Tanks Extra Large Midship Tank - 7010511

The tank comes complete with a black-coated, galvanized steel mounting strap and front support system. Plus, with its exclusive low fuel trap design all 60 gallons are usable capacity. We could advertise a larger capacity, but we chose to only market usable capacity to set honest and reasonable expectations for our customers. The Titan XXL tank also features minimal hang down below the bottom of the stock tank (approximately only 1.5"lower than stock tank shield).Application. For model years 2011-2016.For 2500HD and 3500HD Models with Duramax Engines. For use with diesel fuel ONLY! Additional Details. The TITAN tank is 24 gallons larger at 60 gallons. The stock tank is only 36 gallons. Will not interfere with powered steps, air bag systems and most other accessories. Our mid-ship, direct replacement fuel tanks are designed to use your trucks' stock/OE sending unit. However, our tanks are compatible with Fleece, AirDog, FASS, etc.

• Super Durable Military Grade Polymer, Cross-Linked Polyethylene (XLHDPE)
• Nearly 200 Times Less Heat & Cold conductive than Metal Tanks
• No Condensation, No Corrosion, and Easy to Install
• Compatible with most bio-diesel fuel
• Exclusive TITAN Sending Unit Mounting System

Vehicle Specific

• 2011-2016 GM 2500 & 3500(Crew Cab-Long Bed)

Attributes:

• Brand Name: Titan Fuel Tanks
• GTIN: 00848135000089
• California Restriction: No
• Increased Capacity (US Gallons): 26
• Merch Code: Fuel Distribution Parts/Accessories (Automotive)
• Position: N/A
• Sales in Canada: Yes
• Stock Tank Capacity (US Gallons): 34
• TITAN Tank Capacity (US Gallons): 60
• Truck Freight: Yes
• USMCA Origin Criterion: B

Extended Information:

• Country of Origin: US
• Emissions : 4
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each:
• Package UOM:
• Dimension: 22 x 95 x 16 inches
• Weight: 80 POUNDS
