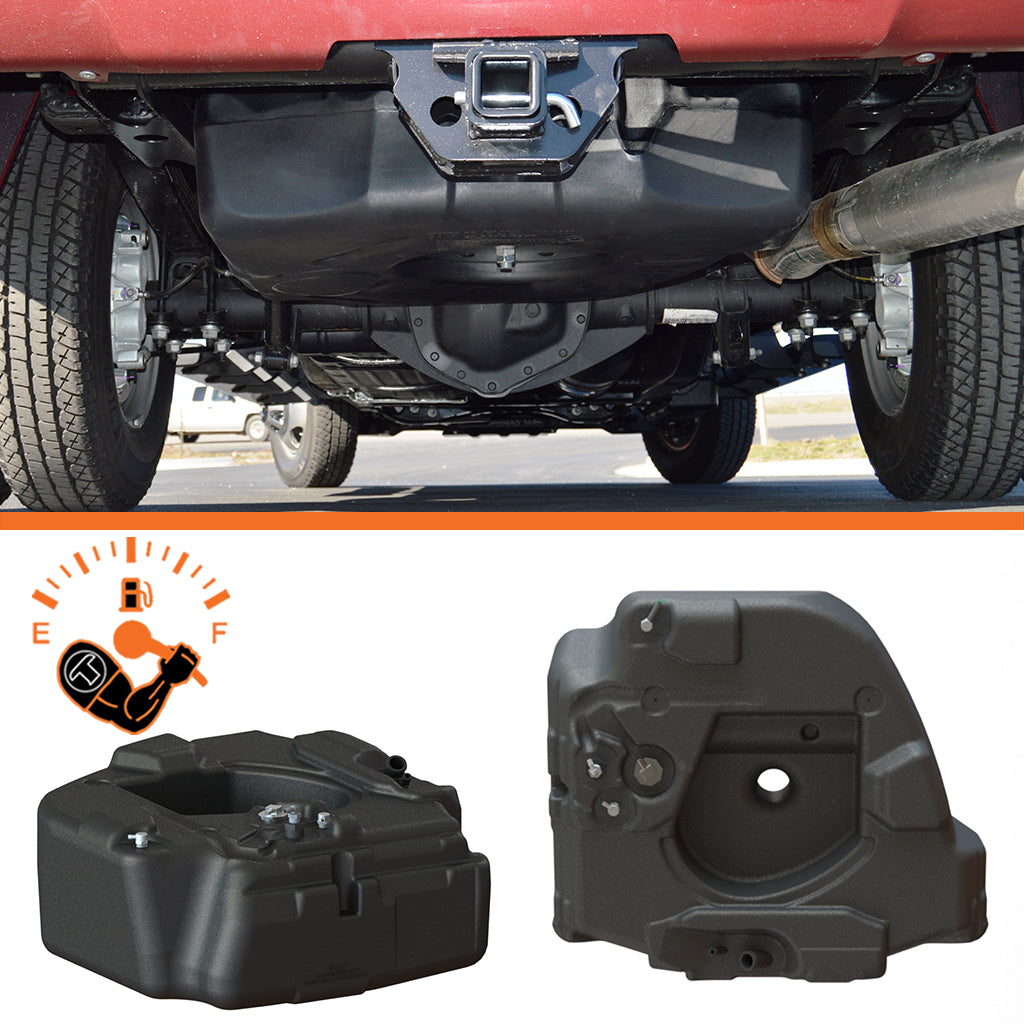

Titan Fuel Tanks Spare Tire Auxiliary Fuel System - 4020299

The fuel can be held in reserve or transferred on-the-go as the need arises. The controller's illuminated user interface indicates the tank's fuel level and features a single-touch button that starts the fuel transfer sequence. With one touch, fuel begins transferring from the auxiliary tank to the vehicle's primary fuel tank, the pump will run for approximately 10 minutes, transferring 5 gallons of fuel. If the primary tank fills during that time, the pump will automatically stop pumping fuel. A great feature is that TITAN's Controller only requires a power wire and a ground. It does not invade the truck's wiring harness or computers. Its underbody location means that it has no impact on the truck bed's hauling space. In many cases where aftermarket custom wheels and tires are installed on a vehicle, they are not the same size as standard which means the original equipment spare cannot be used anyway. The STAFS(tm) comes with a universal filler kit featuring an attractive black aluminum door that can be installed on the vehicle's exterior sidewall or on an inside wall of the truck bed. All the mounting brackets, hoses, valves, and pump are included with each system. Note: TITAN's(tm) STAFS(tm) must only be installed on vehicles equipped with heavy Class V (5) hitches, standard on most full-sized diesel pickups

• Super Durable Military Grade Polymer, Cross-Linked Polyethylene (XLHDPE)
• Nearly 200 Times Less Heat & Cold conductive than Metal Tanks
• No Condensation, No Corrosion
• Compatible with most bio-diesel fuel
• TITAN Exclusive Product – Award winning

Vehicle Specific

• 1999-2007 FORD F250 F350 & F450(All cabs-All beds)

Attributes:

• Brand Name: Titan Fuel Tanks
• GTIN: 00848135000959
• California Restriction: No
• Increased Capacity (US Gallons): 30
• Merch Code: Fuel Distribution Parts/Accessories (Automotive)
• Position: N/A
• Sales in Canada: Yes
• TITAN Tank Capacity (US Gallons): 30
• Truck Freight: No
• USMCA Origin Criterion: B

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each:
• Package UOM:
• Dimension: 19 x 32 x 35 inches
• Weight: 68 POUNDS
