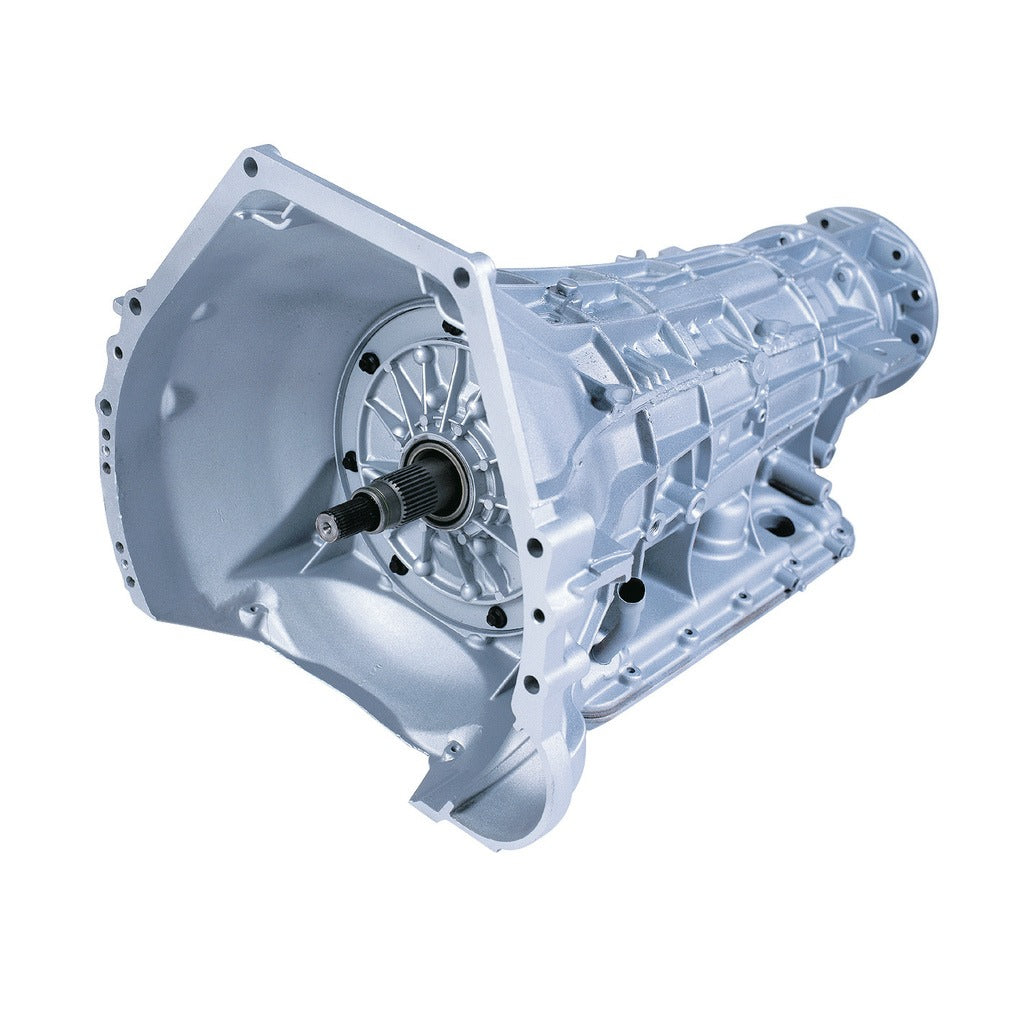

Transmission Stage 4 Kit - 1999-2003 Ford 4R100 2WD PTO

The stock transmission is designed to handle the output of the stock engine, but not much more. Increase the durability of your drivetrain with a BD transmission. All transmissions come with BD's heavy duty transmission pan and most packages come bundled with our auxiliary transmission filter kit for added protection!

• Increase the durability of your drivetrain
• Clutch Count: INTERMEDIATE 4 (33% increase over stock)
• Clutch Count: OVERDRIVE 4 (33% increase over stock)
• BD aluminum HD deep pan, increases oil capacity by 6qt
• Each transmission is dyno tested

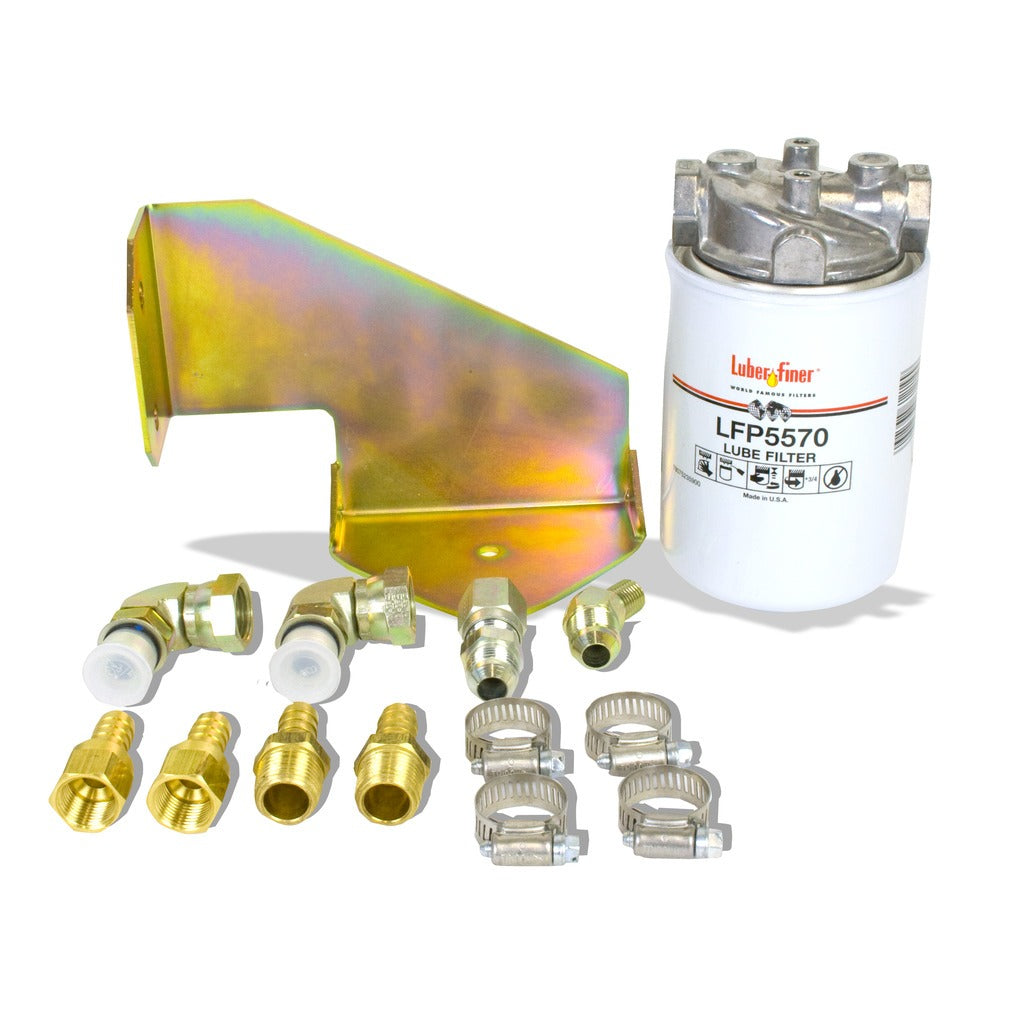

• 1990-2003 include auxiliary frame mounted full flow filter kit
• OEM equipt transmission mounted PTO
• Re-calibrated accumulator body
• Quicker, firmer shifts
• Full shift kit with line mod valve to increase pressures
• Increased pressure to converter
• Upgraded OD snap ring
• Added lube circuits to OD planet
• Added lube and support to output and intermediate shafts
• Drilled and tapped direct and intermediate feeds to prevent leaks at case
• Machined center support
• Reworked front pump
• Fully rollerized geartrain
• Clutch Count: COAST CLUTCH 2
• Clutch Count: FORWARD 5 (25% increase over stock)
• Clutch Count: DIRECT 5
• Clutch Count: LOW REVERSE 7 (17% increase over stock)

Attributes:

• Brand Name: BD Diesel
• GTIN: 00990011402538
• 4:88 or Lower Rear End: No
• Drivetrain: 2WD
• Engine: 7.3L Powerstroke 99-03
• Make: Ford
• PTO Provision: Yes
• Suggested Product: 1030223

Extended Information:

• Country of Origin: Canada
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 23.5 x 44.5 x 27.3 inches
• Weight: 260 POUNDS
