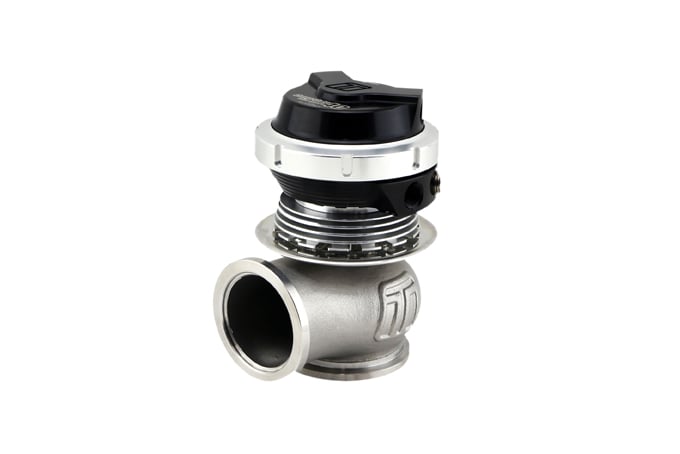

Turbosmart - TS-0552-1102 - Turbocharger Wastegate

The GenV Motorsport Range takes the GenV modular range of External Wastegates and incorporates a CFD Designed and Real World Validated Heatsink between the Wastegate body and the actuator. While all GenV Wastegates include a Ceramic isolator between the body and actuator to ensure the least possible heat transfer occurs (for maximum life), the Motorsporexternal wastegates and incorporates a CFD-designed and real-world validated heatsink between the wastegate version takes this further by putting more distance between the two, while also using both convection within the engine compartment and physical shielding to eliminate harmful levels of heat from ever reaching the actuator. This also aids in valve and guide cooling, extending service life in demanding environments. The Motorsport Variant is, without doubt, the most suitable for the extreme conditions associated with the endurance styles of motorsport!

• CFD Driven heatsink design
• 40mm V-Band Fitment and Also Suits Peer 44mm V-Band Fitment
• Nitronic 60 Valve Guide and High Temp 347 Separately Body
• 17-7 PH Stainless Steel Springs
• Strap Type V-band clamps
• Class Leading Thermal Performance
• Class Leading CFD and Bench Validated Flow Performance
• Class Leading Fatigue Resistance
• Optional Liquid Actuator Cooling
• Optional Position Sensor Available Separately
• Rotatable / Clock-able Actuator Housing

Vehicle Specific

• Universal

Attributes:

• Brand Name: Turbosmart
• GTIN: 09329677018684
• Available in: 40mm CompGate40M - TS-0552-1102, 45mm HyperGate45M - TS-0553-1102

Extended Information:

• Country of Origin: AU
• Emissions : Racing or Pre-Emissions Use Only

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 17 x 14 x 14 centimeters
• Weight: 1.474 KILOGRAMS
