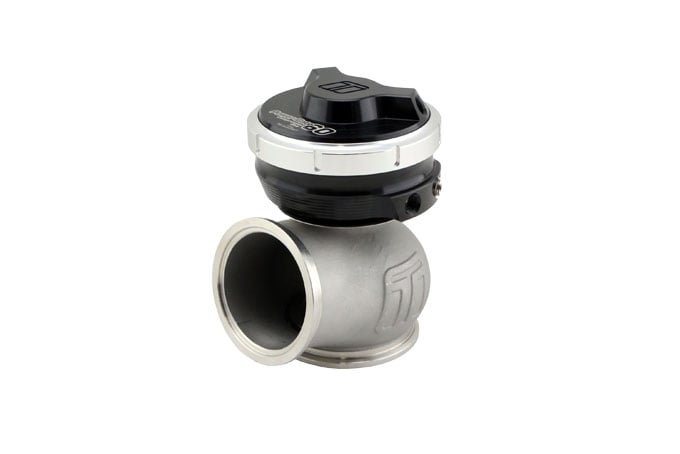

Turbosmart - TS-0555-1202 - Turbocharger Wastegate
Increments of 1
Minimum of 1
Maximum of
0Low stock
0In stock, ready to ship
Sale price
$783.28
-0%
Regular price
$783.28
Regular price
$783.28
Unit price
per
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Description
The GenV PowerGate60 Compressed Gas external wastegate is a cost-effective, high performing 60mm external wastegate designed for control strategies that actively bias the top chamber with increased pressure for large boost bandwidth operation, such as CO2 drag racing or compressed air applications. The Compressed Gas / C02 external wastegate range features an inverted diaphragm suitable for high-pressure CO2 or compressed air systems and large pressure differentials.
- Base Spring Options of 3 & 5 PSI
- 60mm V-Band Fitment
- Nitronic 60 Valve Guide & High Temp 347 SS Body
- 17-7 PH Stainless Steel Springs
- Strap Type V-band clamps
- Class Leading, Thermal Performance
- Class Leading CFD & Bench Validated Flow Performance
- Class Leading Fatigue Resistance
- Optional Liquid Actuator Cooling
- Optional Position Sensor Available Separately
- Rotatable / Clock-able Actuator Housing
- Universal
Attributes:
- Brand Name: Turbosmart
- GTIN: 09329677019063
- Available in: TS-0555-1202: Standard Version (Up to 5psi Base Pressure); TS-0555-1242: HP High Pressure Version (up to 26psi Base Pressure)
Extended Information:
- Country of Origin: AU
- Emissions : 3
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 22 x 17 x 13 centimeters
- Weight: 2.5 KILOGRAMS
