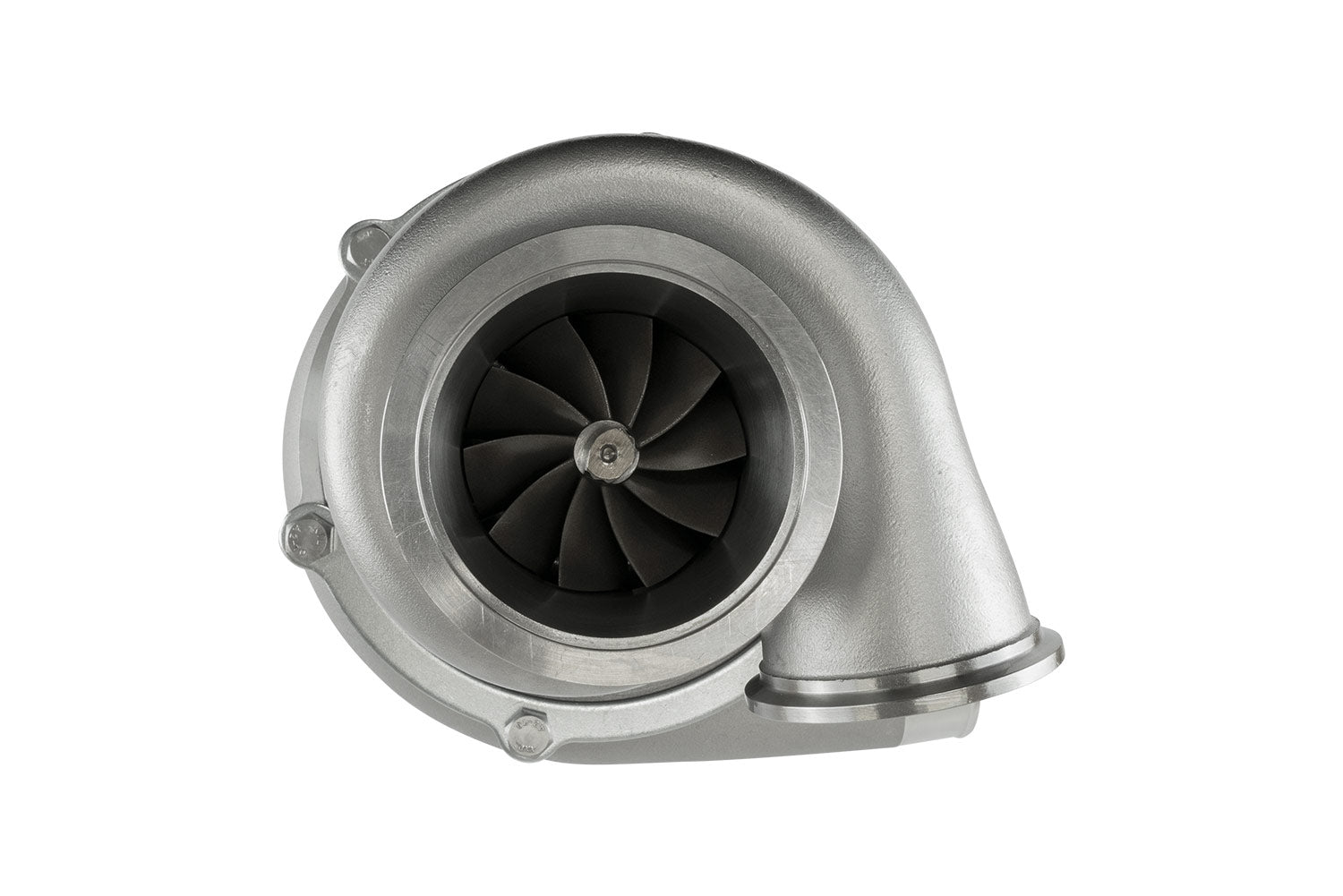

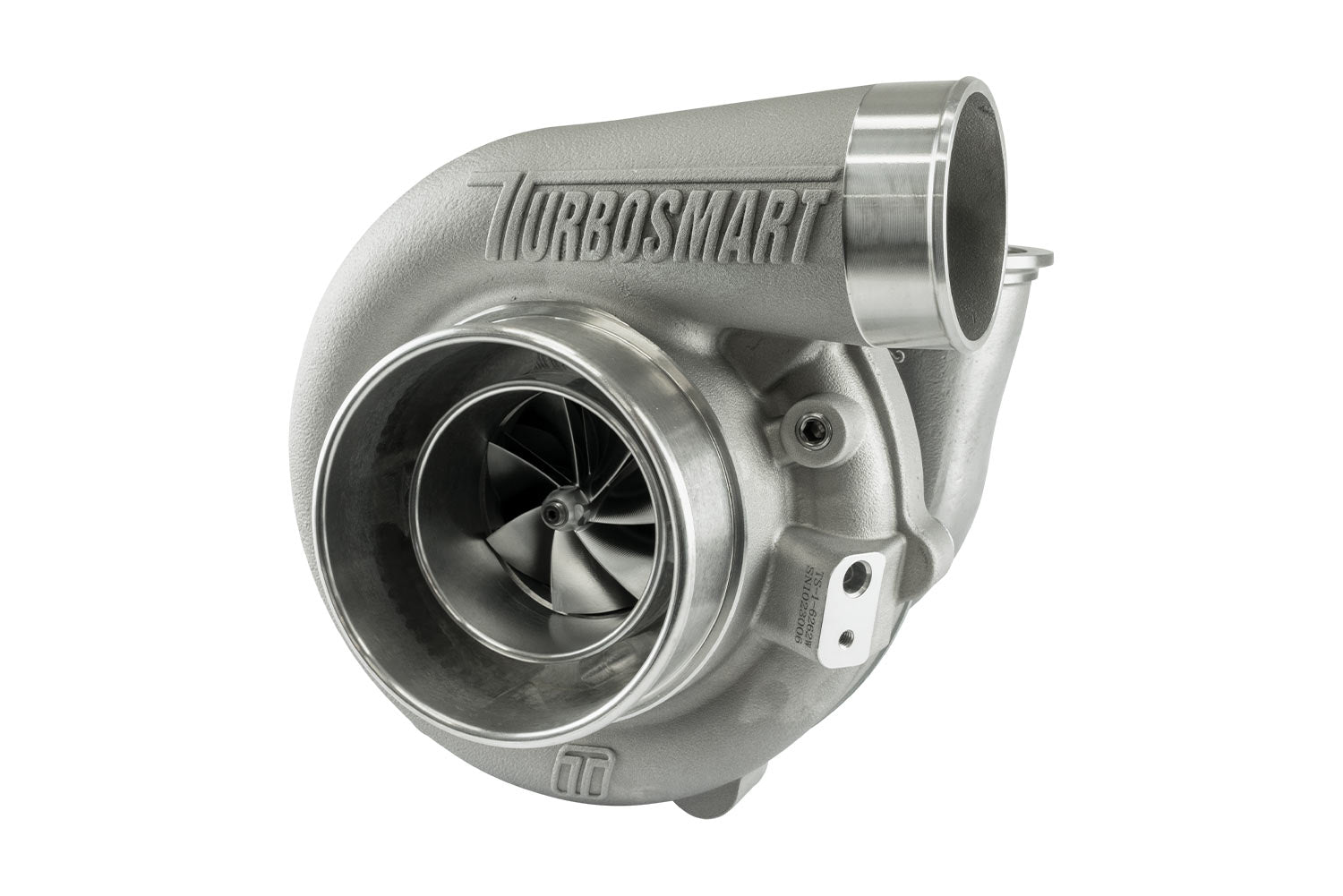

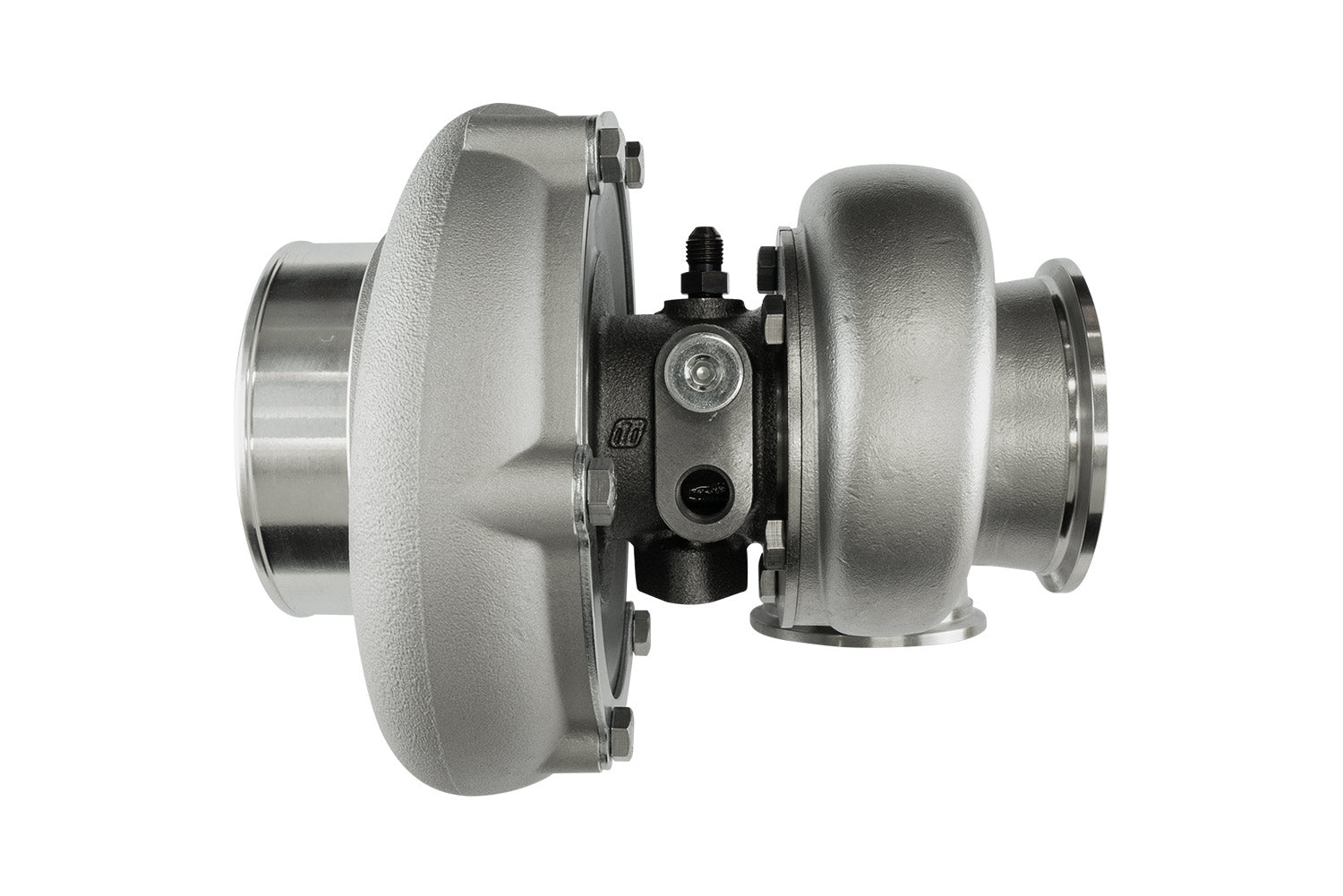

Turbosmart - TS-2-7170VB096E - Turbocharger

Smaller, Lighter & Faster - The Turbosmart TS-2 turbocharger series has been developed to leverage modern materials, design and manufacturing techniques to create a Turbocharger range that meets the demands of both motorsport, and performance enthusiasts alike.

• Unparalleled transient response
• Aggressive aerodynamics with 7+7 splitter wheels
• Lightweight 310s stainless steel investment cast turbine housings
• Lightweight, Aluminum compressor covers
• CFD driven designed housings for optimal AR's and flow
• T14 Inconel turbine wheel for extreme EGT's
• VSR speed balanced
• Proprietary dual ceramic bearing system
• Integrated Iron backplate on center housing

Vehicle Specific

• Universal

Attributes:

• Brand Name: Turbosmart
• GTIN: 09329677029192
• Available in: TS-1 oil cooled turbochargers; TS-2 oil and water cooled turbochargers; V-Band, various T3 Flange and T4 Flange options; Reverse rotation (Selected Sizes); Various AR's options; Internal and external wastegated options available
• Compressor Inducer: 71mm
• Compressor Inlet: 4.0 in. / 101.6mm
• Package Contents: (1x) Turbosmart Performance Turbocharger, (1x) Weld Flanges (Turbine outlet), (1x) V-Band Clamps (Turbine outlet), (1x) Oil drain gasket
• Turbine AR: 0.96
• Turbine Exducer: 70mm
• Turbine Inlet: V-Band (2.25 in.)
• Turbine Outlet: V-Band (3.00 in.)
• Weight: 6.06kg / 13.3lbs

Extended Information:

• Country of Origin: Australia
• Emissions : Racing or Pre-Emissions Use Only

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 25.7 x 29.1 x 30.2 centimeters
• Weight: 4.1 KILOGRAMS
