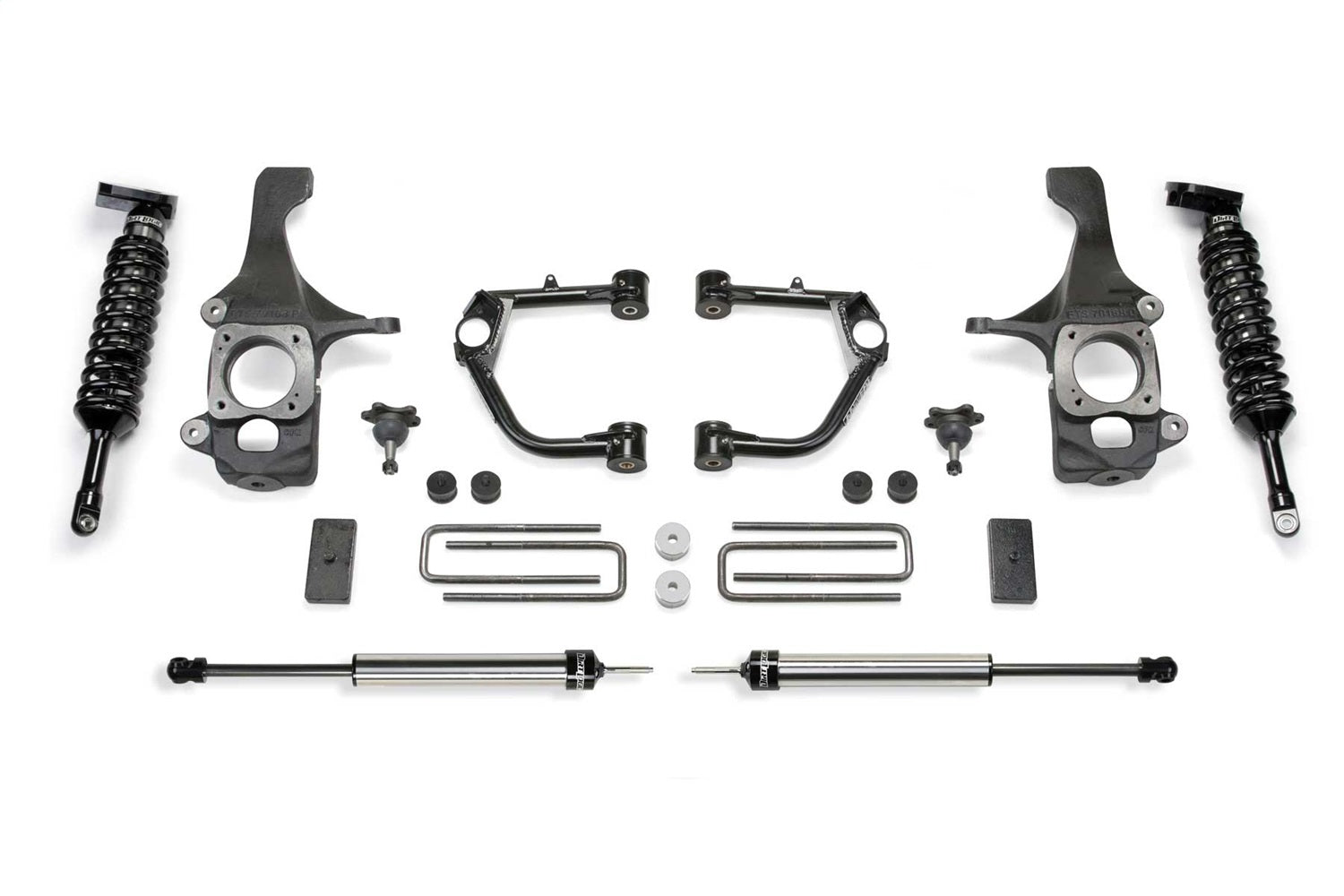

Uniball UCA Lift System W/Shocks

This Tundra TRD PRO lift kit has been designed specifically for the owner that wants a little more ride height out of their truck for clearance of 35 in. tires along with improved suspension performance. Fabtech's Upper Control Arm lift kit provides a 2 in. increased ride height on TRD PRO models without creating suspension bind at full droop. These vehicles have a factory 2 in. lift. With the addition of this 2 in. lift kit the vehicle will sit as high as a standard model with a 4 in. lift kit and clear a 35 in. tall tire. The heart of this quality lift kit is the stainless steel Dirt Logic 2.5 Coilover shocks. They provide lift and offer excellent damping capacity for offroad use and a smooth highway ride. The stainless steel body and NitroSteel(R) piston rods of the Dirt Logics provide maximum corrosion resistance for durability and longevity. To maximize the performance of the Dirt Logic Coilovers Fabtech includes tubular Ball Joint Upper Control Arms. They are built with .120 wall DOM tubing and have heavy duty extended range ball joints that provide additional strength to the front suspension. Working in conjunction with the Fabtech Upper Control Arms there are extended length ductile iron steering knuckles that allow for increased travel without bind and additional caster to handle oversized tires. The front differential is relocated to keep the CV angles operating freely during the full range of travel. Front bump stops extensions control the compression travel eliminating over cycling of the suspension. Rear lift comes from 1 in. blocks and u-bolts. Some owners may opt to not install the rear blocks if they desire to level the stance of the vehicle. Legendary stainless steel Dirt Logic 2.25 rear shocks are provided for a superior ride quality both on and offroad. This Tundra TRD PRO lift kit is an excellent choice for owners looking to increase ride height for 35 in. tall tires while enhancing the suspension performance of the vehicle.

• Arms Eliminate Upper Ball Joint
• Arms Super Strong 1 in. ID Stainless American Uniball
• 17-4 Stainless Steel Heat Treated Uniball Pin
• Arms Are Direct Replacements For Factory Arms
• For Suspensions That Require Additional Strength/Alignability

Attributes:

• Brand Name: Fabtech
• GTIN: 00674866109100
• Lift/Drop Height: 2
• WARNING CA Proposition 65: Yes
• WARNING CA Proposition 65 Message: WARNING: Cancer and Reproductive Harm-www.P65Warnings.ca.gov.

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 35.7500 x 30.2500 x 22.0000 inches
• Weight: 203.2000 POUNDS
