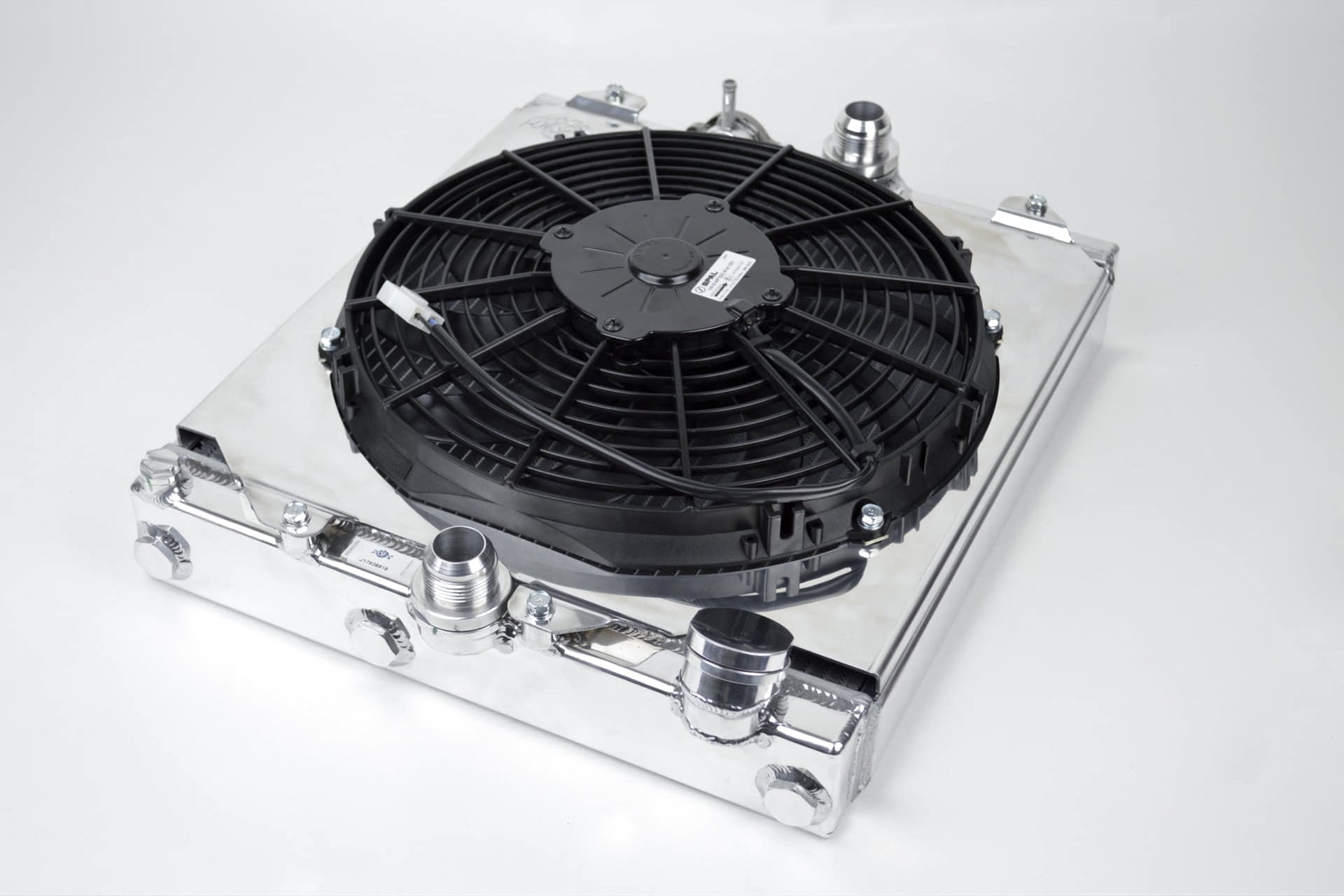

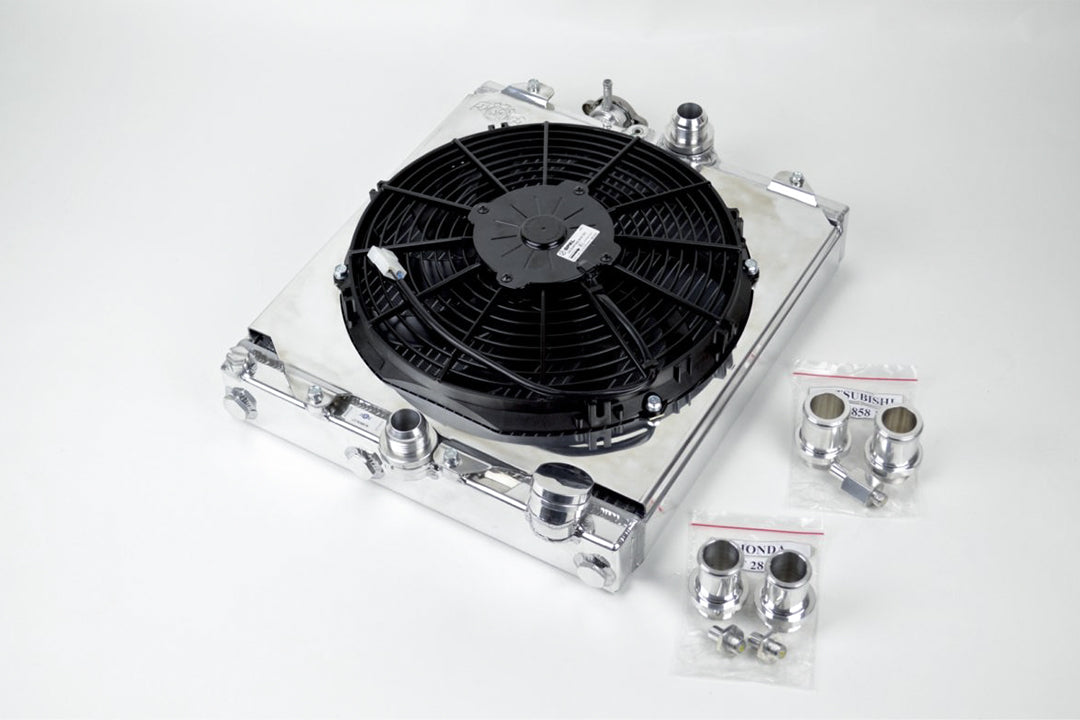

Universal Half Radiator - Evo 7/8/9 / 92-00 Civic - W/ SPAL Fan & Shroud

CSF has created the Ultimate Half radiator with direct fitment for the most popular 92-00 Honda Civic platform. Even better, it can be used as a universal radiator and comes with a direct-fitment kit for Mitsubishi Evolution 7/8/9 models as well. A true innovation of the industry's #1 selling model. Take your set up to the next level with this Half sized radiator. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.

• 2-Row 42mm Core (Dual Core) Featuring CSF's Exclusive B-Tube Technology
• Core Features an Ultra-Efficient Fin with 6.5mm Fin Height and Multi-Louvered Design for Maximum Surface Area Contact
• CNC Machined "Quick-Connect" Inlet/Outlet Connections
• CNC Machined Brackets and Fittings for Superb Fit and Durability
• All-Aluminum Race Style Drain Plug
• 1-Hour "Mirror Finish" Hand Polish
• "Drop-in Fit" Requiring No Modifications to Install - Accepts All Attaching OEM Components Including "Quick Connect" Hoses, AC Condenser, Mounting Brackets and Fan Shroud

Attributes:

• Brand Name: CSF Cooling - Racing & High Performance Division
• GTIN: 00710353028582
• Coolant Hose Inlet Connection Type: Threaded bungs accepting 1.25-inch slip-on fittings and -16 inlet/outlet connections (Kit included)
• Coolant Hose Outlet Connection Type: Threaded bungs accepting 1.25-inch slip-on fittings and -16 inlet/outlet connections (Kit included)
• Core Height: 13.75 in.
• Core Material: Aluminum
• Core Row Quantity: 2
• Core Thickness: 1.625 in.
• Core Width: 13.6875 in.
• Down Flow Or Cross Flow Type: Down Flow
• Finish/Color: Polished
• Frame Included: No
• Grade Type: Performance
• Inlet Connector Type: Slip On or AN Fitting
• Inlet Diameter: 1.25 in.
• Inlet Location: Top Center
• Installation Type: Universal Cooling Product
• Internal Engine Oil Cooler: No
• Internal Transmission Oil Cooler: No
• Mounting Hardware Included: No
• Mounting Type: Mounts with OE Hardware
• Outlet Connector Type: Slip On or AN Fitting
• Outlet Diameter: 1.25 in.
• Outlet Location: Bottom Center
• Radiator Cap Included: Yes
• Tank Material: Aluminum
• Thermostat Included: No

Extended Information:

• Country of Origin: Indonesia
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 21 x 9 x 21 inches
• Weight: 20 POUNDS
