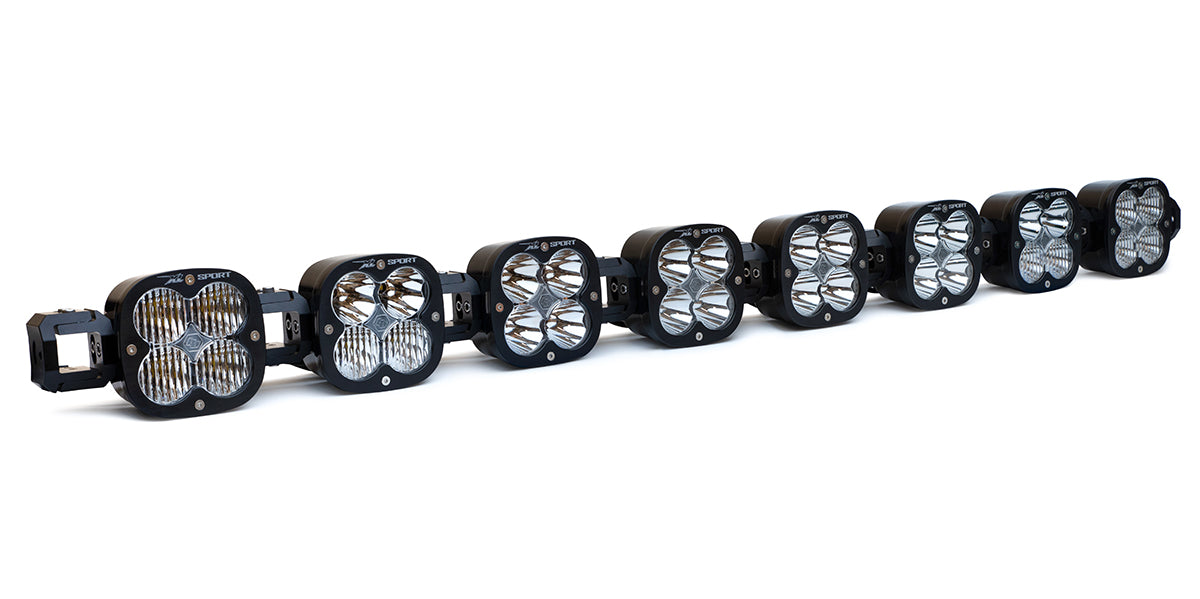

XL Sport Linkable LED Light Bar (8 XL; Clear)

Experience full adjustment and total performance with the Baja Designs XL Sport Linkable LED light bar kit, engineered for enthusiasts seeking to take charge with a lighting package that is completely customizable. Built around our popular XL shallow moto housing, each light offers 3,162 raw lumens each from our next generation LEDs and can be configured with 3 up to 9 forward projecting lights that provide a smooth blend due to the use of multiple lens pattens illuminating zones 1, 2, 3 and 4 simultaneously. The unique feature of our XL Linkable system provides 45 degrees of vertical pitch adjustment within each light or the entire unit. Completely independent horizontal adjustment per light allows for straight or arc configurations to perfectly match the lines of your vehicle’s bumper or roofline. The wiring comes fully crimped and trimmed, allowing for easy installation and the ability to add links down the road, and black rock guards are included to protect the lights when not in use. If you're looking to have a lighting system that performs as well as it looks, this is the auxiliary light kit for you!

• Built around our popular XL shallow moto housing, each light offers 3,162 raw lumens each from our next generation LEDs and can be configured with 3 up to 9 forward projecting lights that provide a smooth blend due to the use of multiple lens pattens illuminating zones 1, 2, 3 and 4 simultaneously

Attributes:

• Brand Name: Baja Designs
• GTIN: 00810031741267
• Add-On: Accessories-660104-Lens Kit (Driving/Combo; Clear)
• Amperage Rating (A): 16
• Average Rated Life (hr.): 49,930
• Beam Pattern: Multi-Pattern
• Bezel Material: Powder Coated Cast Aluminum
• Brightness (Lumens): 25,200
• DES: XL Sport Linkable LED Light Bar
• Depth (in.): 2.8
• Description: 8XL Sport; Multi-Pattern; Clear
• EXT: XL Sport Linkable LED Light Bar (8 XL; Clear)
• Height (in.): 4.43
• Housing Color: Black
• Housing Material: Hard Anodized and Powder Coated Cast Aluminum
• Length (in.): 51.52
• Lens Color: Clear
• Lens Material: Hardcoated Polycarbonate
• Light Quantity: 8
• Lighting Modes: Beam
• Lighting Quantity: 32
• Lighting Technology: LED
• Lighting Type: Forward Projecting
• Mounting Hardware Description: Pre-Load Kit; Links; Rock Guards
• Mounting Hardware Included: Yes
• Mounting Hardware Material: Stainless Steel
• Overvoltage Protection: Built-In
• Product Type: XL Linkable LED Light Bar
• Standards/Compliance (Durability): Exceeds MIL-STD810G (Mil-Spec Testing)
• Standards/Compliance (Impact Resistance): IK10 Compliant (Mechanical Impact Testing)
• Standards/Compliance (Water Resistance): IP69K (Waterproof up to 9ft & Pressure Washable)
• TLE: XL Sport Linkable LED Light Bar (8 XL; Clear)
• Universal or Specific: Universal
• Wattage (W): 208
• Wiring Harness Included: Yes

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Weight: 0 POUNDS
