XL40 KTM LED Headlight Kit W/Shell (17-19)
Increments of 1
Minimum of 1
Maximum of
0Low stock
0
Sale price
$466.95
-0%
Regular price
$466.95
Regular price
$466.95
Unit price
per
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Description

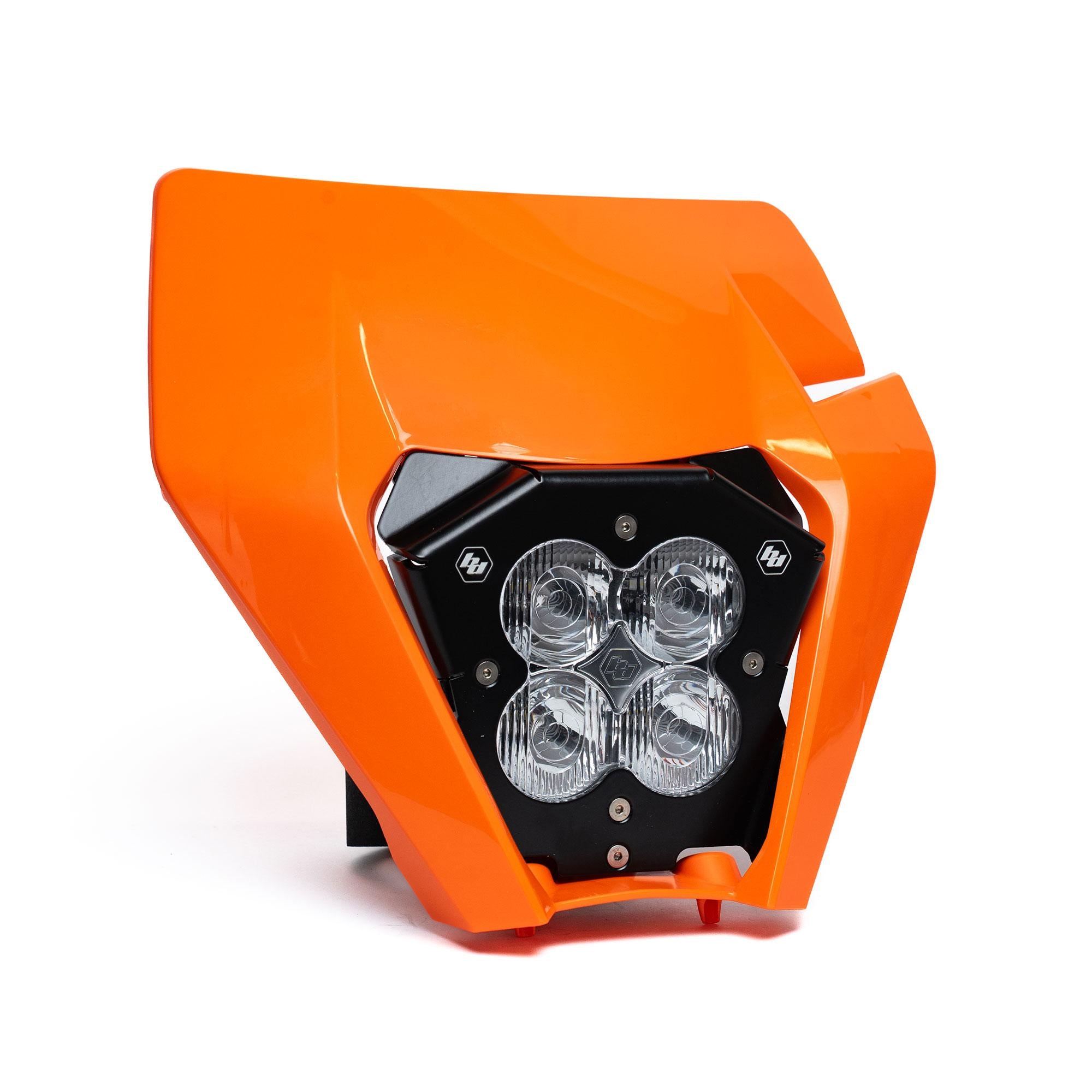

Upgrade your off-road lighting with the Baja Designs XL40 (D/C) LED Headlight Kit — purpose-built for 2017–2019 KTM XC-W, XC-W TPI, and EXC-F motorcycles. Inspired by the performance of the XL80, the XL40 delivers 5,224 lumens of trail-proven illumination to a wider range of bikes. Engineered for dirt bikes with lower-output OEM stators, it draws just 43.5W — a powerful upgrade without the large power draw.
- 5W — a powerful upgrade without the large power draw
Attributes:
- Brand Name: Baja Designs
- GTIN: 00810160464822
- Amperage Rating (A): 3.4
- Average Rated Life (hr.): 49930
- Beam Pattern: Trail
- Bezel Material: Powder Coated Cast Aluminum
- Brightness (Lumens): 5,224 (Hi) / 1,435 (Low)
- DES: XL40 (D/C) LED Headlight Kit w/ KTM '17-19 Shell
- Depth (in.): 3.65
- Description: Trail; Clear
- EXT: XL40, KTM LED Headlight Kit w/Shell, (17-19)
- Effective Lighting Score (ELS): High: 92°/5.9/226’/5224; Low: 74°/5.9/119’/1435
- Height (in.): 4.43
- Housing Color: Black
- Housing Material: Powder Coated Cast Aluminum
- Length (in.): 4.43
- Lens Color: Clear
- Lens Material: Hardcoated Polycarbonate
- Light Quantity: 1
- Lighting Modes: Beam
- Lighting Quantity: 4
- Lighting Technology: LED
- Lighting Type: Forward Projecting
- Mounting Hardware Included: Yes
- Mounting Hardware Material: Stainless Steel
- Overvoltage Protection: Built-In
- Product Type: XL40
- Standards/Compliance (Durability): Exceeds MIL-STD810G (Mil-Spec Testing)
- Standards/Compliance (Impact Resistance): IK10 Compliant (Mechanical Impact Testing)
- Standards/Compliance (Water Resistance): IP69K (Waterproof up to 9ft & Pressure Washable)
- TLE: XL40, KTM LED Headlight Kit w/Shell, (17-19)
- Universal or Specific: Universal
- Wattage (W): 43.5
- Weight (lbs.): 2.45
- Wiring Harness Included: No
Extended Information:
- Country of Origin: MX
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Weight: 0 POUNDS
