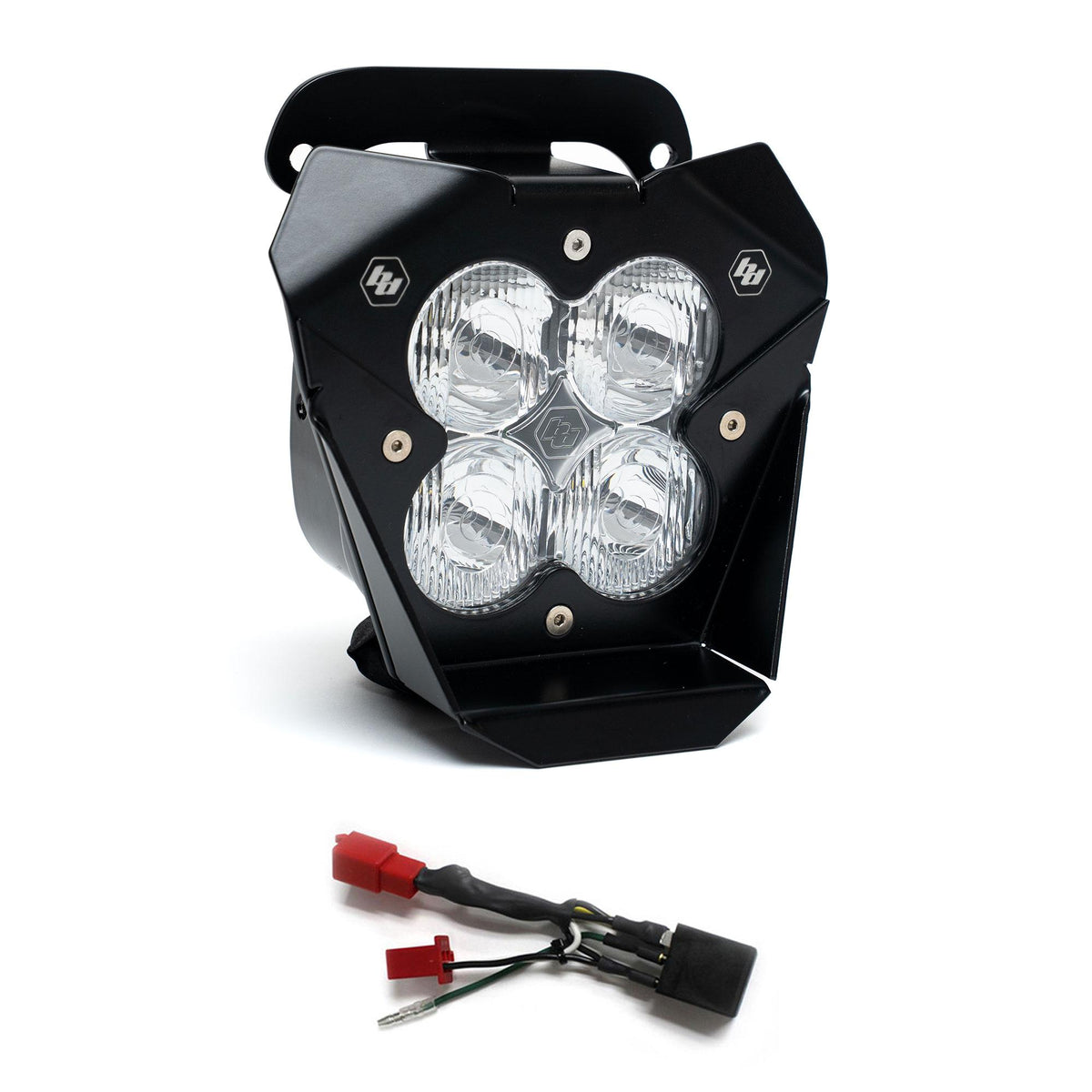

XL40 LED KTM 690 (2019-On) Kit

The Baja Designs XL40 (D/C) LED Headlight Kit for the KTM 690 Enduro R/SMC-R motorcycles is an all-new, moto-specific LED headlight that delivers outstanding performance for trail riders, dual‑sport enthusiasts, and desert riders who need reliable visibility when daylight turns to night. Inspired by the performance of the XL80, the XL40 carries forward the same trail-proven pedigree, delivering 5,224 lumens of usable illumination to a wider range of motorcycles. Engineered specifically for dirt bikes equipped with lower-output OEM stators, the XL40 draws just 43.5W—making it a powerful lighting upgrade without a large power draw. With the low beam functionality of the XL40, riders can reduce output by 25% in low‑beam mode, producing 1,434 lumens when full output is not needed. Paired with our signature XL Trail Lens, the XL40 produces both a vertical and horizontal beam pattern with exceptional near-field and peripheral visibility. Designed for tight, technical singletrack, the Trail Lens redistributes center beam intensity to eliminate harsh hot spots, improving clarity through vertical transitions, quick elevation changes, and tight corners. The result is a smooth, evenly distributed field of light that inspires confidence in the most demanding terrain. The XL40 LED Headlight kit replaces the stock OEM headlight and comes with our Hi/Low harness, making this a plug-and-play kit for ease of installation. Every kit is backed by our 30-day satisfaction guarantee and Lifetime Limited Warranty, ensuring complete peace of mind on every ride.

• 5W‚Äîmaking it a powerful lighting upgrade without a large power draw

Attributes:

• Brand Name: Baja Designs
• GTIN: 00810160464686
• Amperage Rating (A): 3.4
• Average Rated Life (hr.): 49930
• Beam Pattern: Trail
• Bezel Material: Powder Coated Cast Aluminum
• Brightness (Lumens): 5,224 (Hi) / 1,435 (Low)
• DES: XL40 (D/C) LED Headlight Kit
• Depth (in.): 3.65
• Description: Trail; Clear
• EXT: XL40, LED KTM 690 (2019-On) Kit
• Effective Lighting Score (ELS): High: 92°/5.9/226’/5224; Low; 74°/5.9/119’/1435
• Height (in.): 4.43
• Housing Color: Black
• Housing Material: Powder Coated Cast Aluminum
• Length (in.): 4.43
• Lens Color: Clear
• Lens Material: Hardcoated Polycarbonate
• Light Quantity: 1
• Lighting Modes: Beam
• Lighting Quantity: 4
• Lighting Technology: LED
• Lighting Type: Forward Projecting
• Mounting Hardware Included: Yes
• Mounting Hardware Material: Stainless Steel
• Overvoltage Protection: Built-In
• Product Type: XL40
• Standards/Compliance (Durability): Exceeds MIL-STD810G (Mil-Spec Testing)
• Standards/Compliance (Impact Resistance): IK10 Compliant (Mechanical Impact Testing)
• Standards/Compliance (Water Resistance): IP69K (Waterproof up to 9ft & Pressure Washable)
• TLE: XL40, LED KTM 690 (2019-On) Kit
• Universal or Specific: Universal
• Wattage (W): 43.5
• Weight (lbs.): 2.45
• Wiring Harness Included: Yes

Extended Information:

• Country of Origin: Mexico
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Weight: 0 POUNDS
