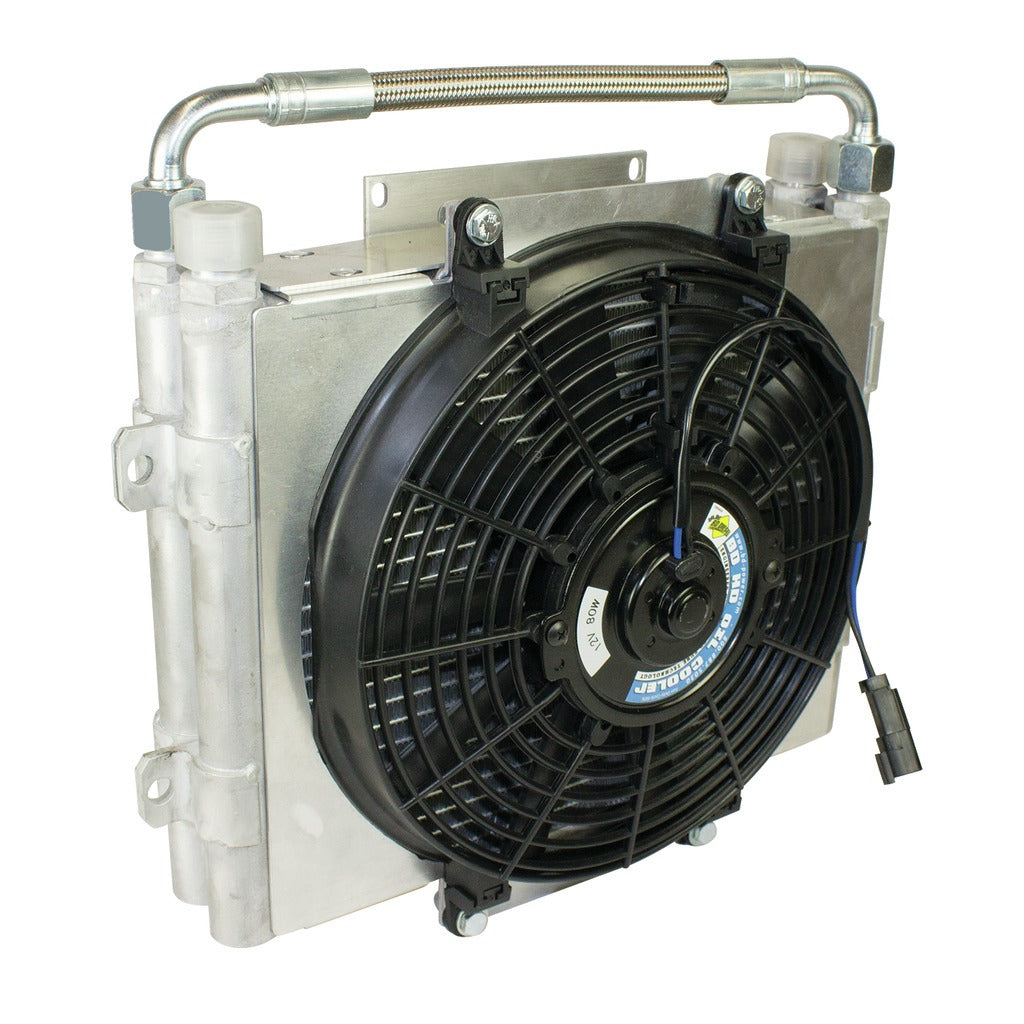

Xtrude Trans Cooler Double Stacked (No Install Kit)

HOT transmission oil has to be COOLED to keep you on the track. Double stacked cores deliver over 40,000 BTU/HR of cooling and over 350% temperature drop versus the factory system - 36% better temperature drop than BD's standard single core kit. The 200 Micro Extruded passages provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling. Large 5/8-inch ports prevents inlet/outlet restriction and furnace brazed rails have been tested to 300psi of pressure. The thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan offers ultimate automatic oil temperature control.

• Cooler Assembly Only
• Double stacked cores deliver over 40,000 BTU/HR of cooling
• Over 350% temperature drop versus the factory system
• 136% better temperature drop than XTRUDED single core kit
• Motor is IP54 with 65% duty cycle

Attributes:

• Brand Name: BD Diesel
• GTIN: 00990011403962
• Engine: 6.7L Powerstroke 17-up
• Engine0: 6.7L Cummins 19-up
• Engine1: 5.9L Cummins 04.5-07
• Engine2: 6.7L Cummins 13-18
• Engine3: 6.7L Cummins 07.5-12
• Engine4: 6.4L Powerstroke 08-10
• Engine5: 6.0L Powerstroke 03-07
• Engine6: 5.9L Cummins 98.5-02 24-Valve
• Engine7: 5.9L Cummins 94-98 12 Valve
• Engine8: Duramax 6.6L 17-up L5P
• Make: Ford

Extended Information:

• Country of Origin: China
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 23 x 16 x 11 inches
• Weight: 14 POUNDS
