Xtruded Trans Oil Cooler - 3/8 Inch Cooler Lines

Coolers, providing 22% more cooling over other designs. The 200 Micro Extruded passages provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling. Large 5/8-inch ports prevents inlet/outlet restriction and furnace brazed rails have been tested to 300psi of pressure. The thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan offers ultimate automatic oil temperature control. This combination gives BD's Xtruded Transmission Oil Cooler a rating of 33,930 BTU/HR and in excess of 30,000 GVW! Xtruded Transmission Oil Cooler packages come complete with all fittings, clamps, hoses, hardware and a Build-It-Yourself galvanized bracket kit for quicker and cleaner installation - no wasting time fabricating brackets out of scrap metal. The pre-wired loomed harness with fuse and relay comes with OEM style sealed connectors to resist elements and give factory-like install look.

• 22% more cooling over other designs
• Furnace brazed rails have been tested to 300psi of pressure
• Thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan
• 33,930 BTU/HR and in excess of 30,000 GVW!

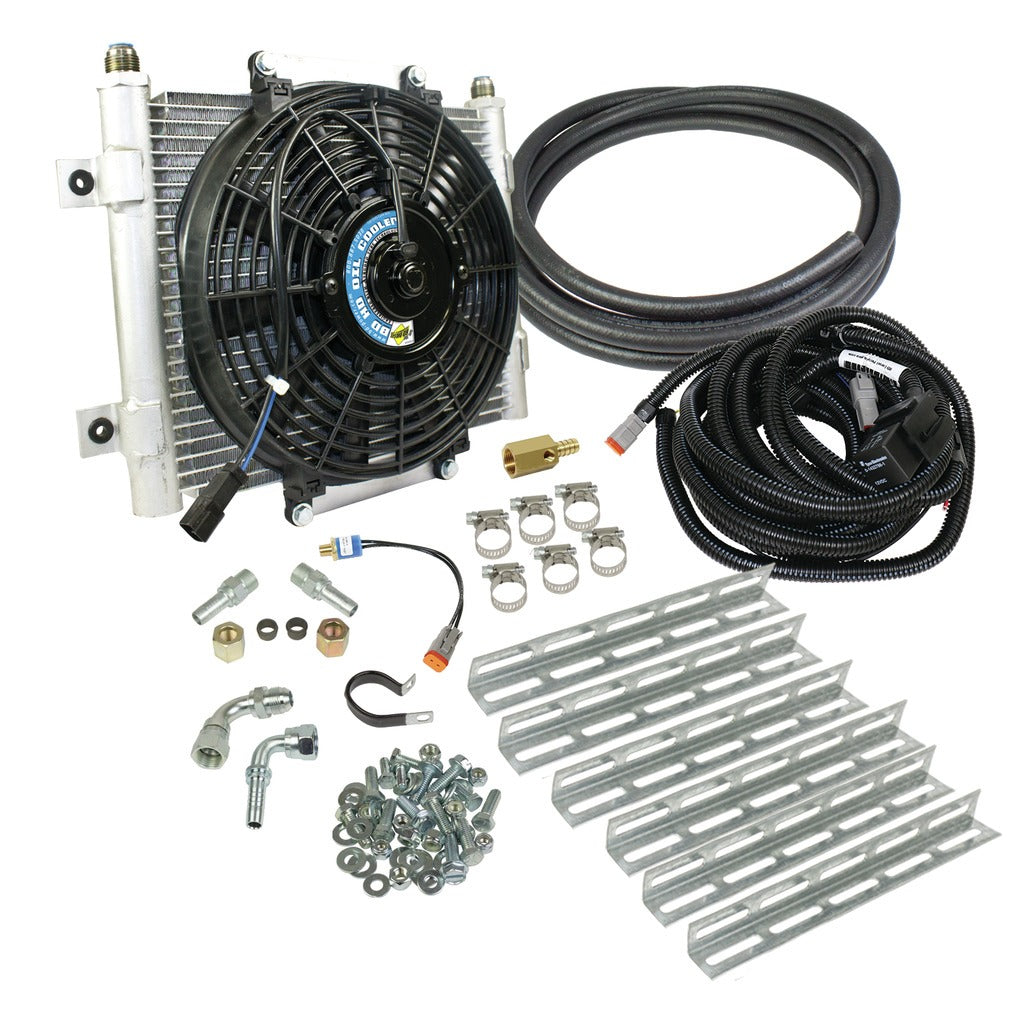

• Kits complete with all fittings, clamps, hoses and hardware
• Build-It-Yourself galvanized bracket kit for quick and easy installation - no wasting time fabricating brackets out of scrap metal
• The pre-wired loomed harness with fuse and relay comes with plug-in connectors
• Chevy 1999-2000 4L80E - 3/8-inch Cooler Lines
• Ford 1999-2003 4R100 - 3/8-inch Cooler Lines
• 200 Micro Extruded passages
• Large surface area to transfer heat for external air flow cooling
• Turbulent oil flow design promotes a more complete cooling
• Large 5/8-inch ports prevents inlet/outlet restriction

Attributes:

• Brand Name: BD Diesel
• GTIN: 00990011403405
• Engine: Motorhome Diesel Power
• Make: Ford
• Suggested Product: 1061830

Extended Information:

• Country of Origin: CN
• Emissions : Released

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 22 x 15.6 x 10.8 inches
• Weight: 17.4 POUNDS
