Xtruded Trans Oil Cooler - 5/8 Inch Cooler Lines
$720.95
Skip to product information
Coolers, providing 22% more cooling over other designs. The 200 Micro Extruded passages provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling. Large 5/8-inch ports prevents inlet/outlet restriction and furnace brazed rails have been tested to 300psi of pressure. The thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan offers ultimate automatic oil temperature control. This combination gives BD's Xtruded Transmission Oil Cooler a rating of 33,930 BTU/HR and in excess of 30,000 GVW! Xtruded Transmission Oil Cooler packages come complete with all fittings, clamps, hoses, hardware and a Build-It-Yourself galvanized bracket kit for quicker and cleaner installation - no wasting time fabricating brackets out of scrap metal. The pre-wired loomed harness with fuse and relay comes with OEM style sealed connectors to resist elements and give factory-like install look.
Xtruded Trans Oil Cooler - 5/8 Inch Cooler Lines
$720.95
- 22% more cooling over other designs
- Thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan
- 33,930 BTU/HR and in excess of 30,000 GVW!

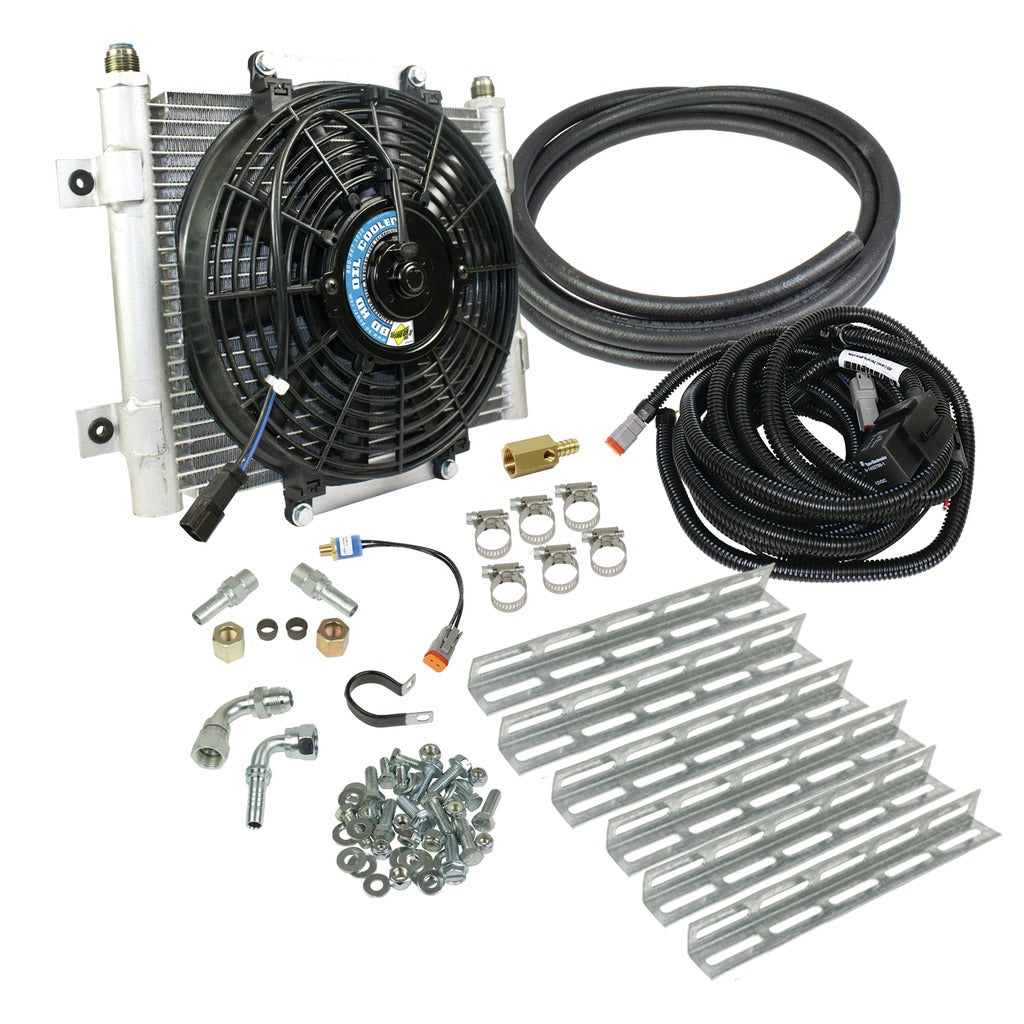

- Kits complete with all fittings, clamps, hoses and hardware
- Build-It-Yourself galvanized bracket kit for quick and easy installation - no wasting time fabricating brackets out of scrap metal
- The pre-wired loomed harness with fuse and relay comes with plug-in connectors
- Chevy Allison 1000 - 5/8-inch Cooler Lines
- 200 Micro Extruded passages
- Large surface area to transfer heat for external air flow cooling
- Turbulent oil flow design promotes a more complete cooling
- Large 5/8-inch ports prevents inlet/outlet restriction
- Furnace brazed rails have been tested to 300psi of pressure
Attributes:
- Brand Name: BD Diesel
- GTIN: 00990011403429
- Engine: Motorhome Diesel Power
- Make: Chevy/GM
- Suggested Product: 1061825
Extended Information:
- Country of Origin: China
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 22 x 15.6 x 10.8 inches
- Weight: 17.6 POUNDS
