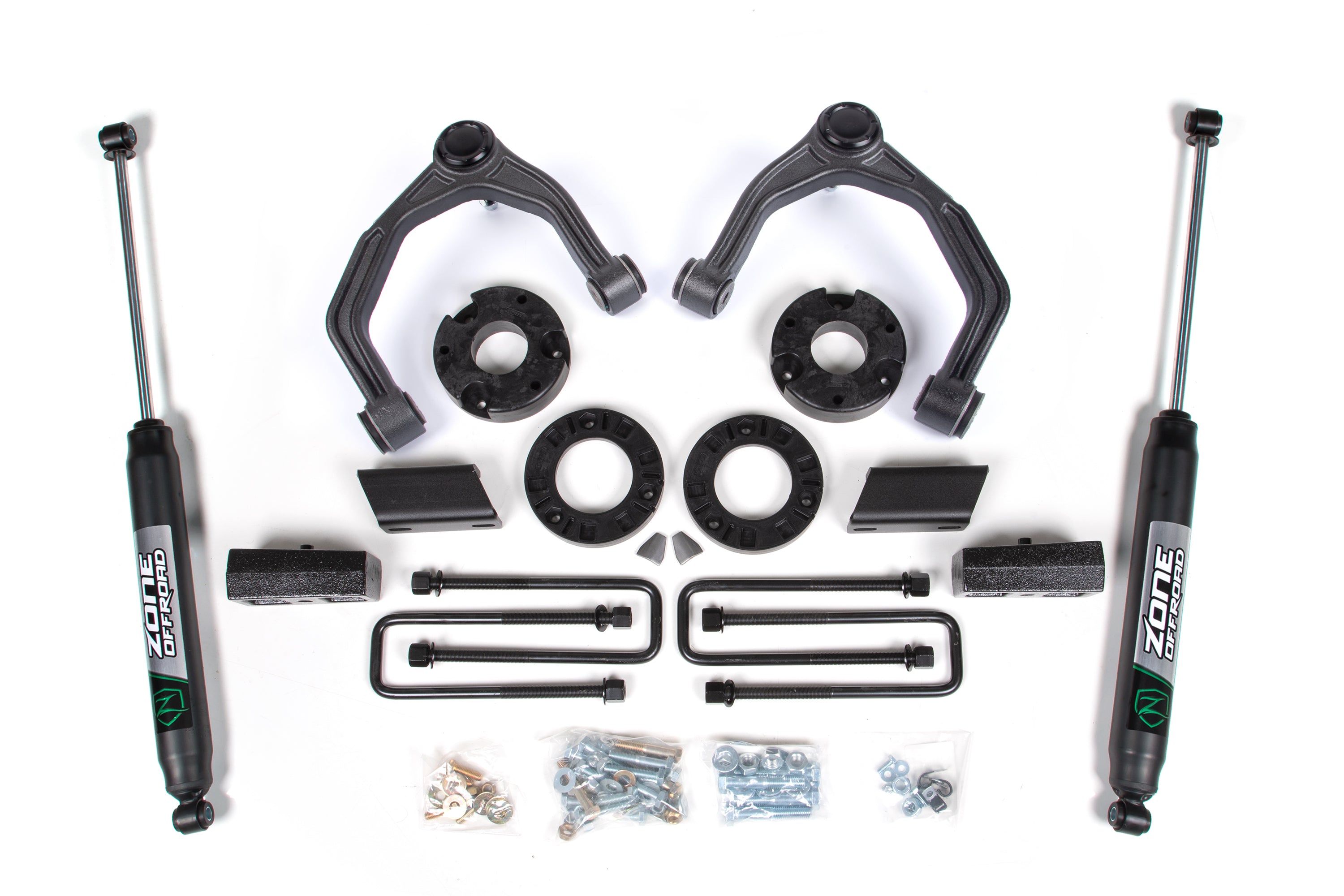

Zone 3.5" Adventure Series Lift Kit

More than a leveling kit, this 3.5" Adventure Series kit takes advantage of Adventure Series upper control arms to offer improved performance and off-road capability with clearance for up to 35" tires. These high strength UCAs allow for increased suspension travel, improved strength and durability, and easy maintenance. Lift is provided by a 2-piece, combination top-mount and preload strut spacers design to provide a full 3.5" of lift without overextending the suspension at full droop (as is the case with kits using just a top mounted spacer). Optional weld-in steering stops are supplied allowing clearance for up to 35" tires. In the rear of this kit, a cast 2" lift block lifts and levels.

• High strength UCAs are cast, ductile iron and specially designed with an indexed ball joint cup to correct ball joint operating angle for more suspension travel
• Utilizes a combination top-mount and preload strut spacers to correctly lift vehicle
• Retain factory ride quality without over extending suspension/drivelines at full suspension droop
• Maintains ride and handling characteristics with clearance for larger tires
• 2" rear lift blocks and heavy duty u-bolts to level the stance
• Nitro series gas or FOX 2.0 adventure series gas shocks to improve performance
• Optional Steering Stops included for larger wheel/tire combinations

Attributes:

• Brand Name: Zone Offroad
• GTIN: 00810156360886
• Accommodates Factory Wheels: No
• Adjustable: No
• Back Spacing: 5.5"
• Finish: Powdercoat
• Front Lift Height: 3.5"
• Front Lift Method: Strut Spacers
• Installation Difficulty: 3 out of 5
• Installation Time: 3-4 hrs
• Lift Type: Lift Kit
• Material: Steel
• Max Tire Size: 35x12.50 (Chevy)
• Max Tire Size 2: 33x12.50 (GMC)
• Rear Lift Method: Cast Blocks
• Required Tools: Cut-off Tool; Strut Compressor
• Requires Metal Cutting: No
• Requires Welding: No
• Wheel Size: 20 x 9

Extended Information:

• Country of Origin: US
• Emissions : 1

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 48.0000 x 40.0000 x 24.0000 inches
• Weight: 65.6000 POUNDS
