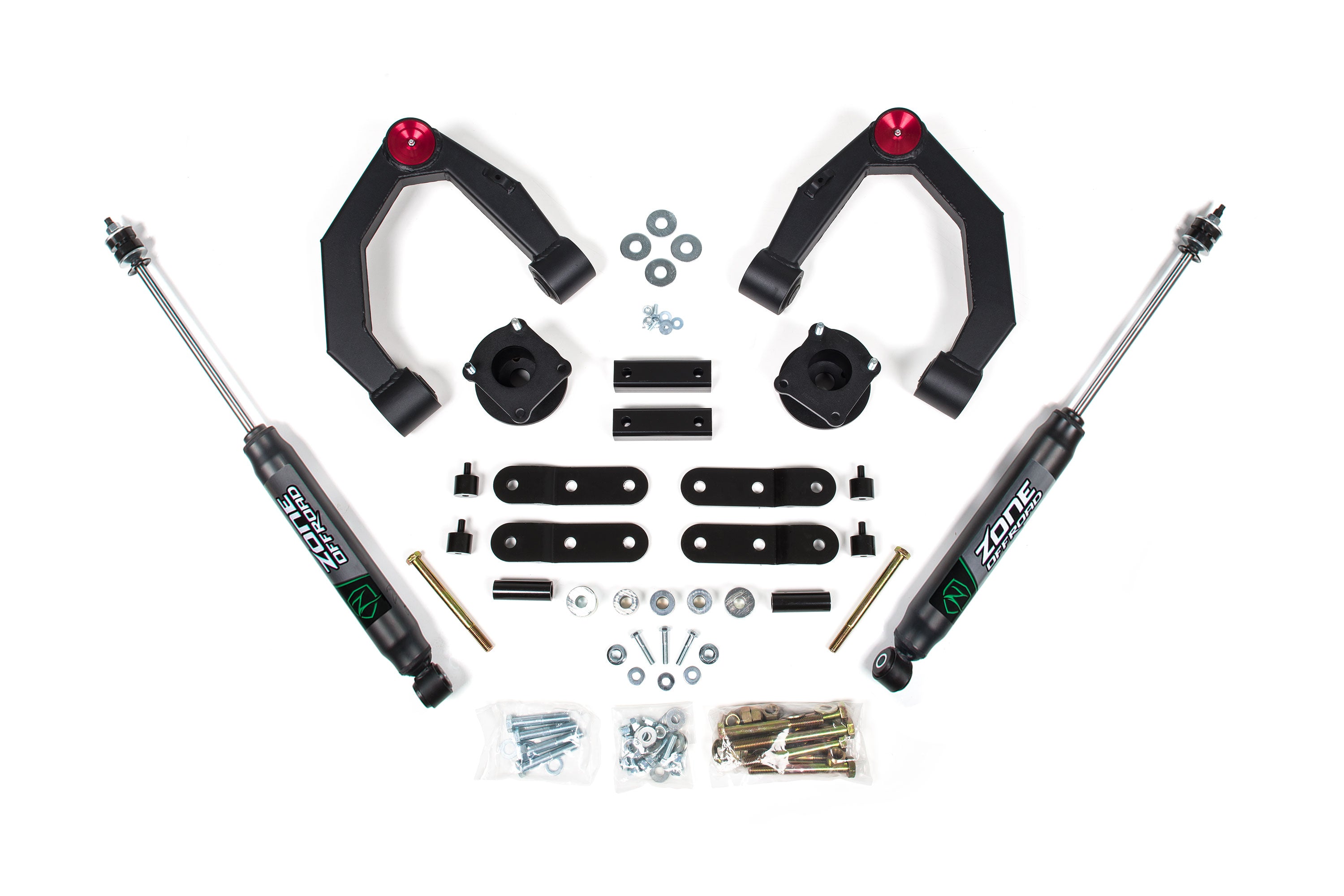

Zone 3.5" Adventure Series Lift Kit

Engineered to take advantage of your truck's factory suspension design, this system offers smooth on road ride quality while increasing wheel travel for when you hit the trails. At the core of this system is a pair of Adventure Series upper control arms with a repositioned ball joint mount to provide improved suspension travel while eliminating the ball joint binding and premature wear. The arms are constructed from 1/8" steel with CNC-machined ball joint and bushing cups. MOOG ball joints come pre-installed and ready to handle off-road abuse. At the frame mount, the arms use factory-style rubber bushings for quiet, low maintenance operation. A pair of top-mounted, steel strut spacers provide lift while retaining factory ride quality and speeding up installation time by not requiring strut disassembly. Factory bump stops are relocated, as is the sway bar. Differential drop spacers and longer hardware keep the CV axle angles at a minimum while still allowing the use of the factory front driveline. In the rear, replacement shackles provide 1" of lift to level the vehicle's stance.

• Fully Welded, Heavy Duty Boxed Upper Control Arms That Dwarf The Factory Arms
• CNC-Machined UCA Bushing & Ball Joint Cups
• OE Style Rubber Bushings & Greasable Style Ball Joints For Quiet, Reliable, & Low Maintenance Operation
• Improved UCA Range Of Motion Compared To Stock Arms
• UCAs Utilize Replaceable Ball Joints and Bushings
• Top Mounted Strut Spacer Retains Factory Ride Quality & Offers Easy Installation
• Differential Relocation to Correct CV Shaft Operating Angle
• Long Lasting Black Powdercoat Finish
• Limited Lifetime Warranty

Attributes:

• Brand Name: Zone Offroad
• GTIN: 00810156367953
• Accommodates Factory Wheels: Yes
• Adjustable: No
• Back Spacing: 6-6.25"
• Back Spacing 2: 6-6.25"
• Finish: Powdercoat
• Front Lift Height: 3.5"
• Front Lift Method: Strut Spacers
• Installation Difficulty: 3 out of 5
• Installation Time: 3-4 hrs
• Lift Type: Lift Kit
• Material: Steel Tube
• Max Tire Size: 305/70
• Max Tire Size 2: 295 / 60
• Rear Lift Height: 1" - 2"
• Requires Metal Cutting: No
• Requires Welding: No
• Wheel Size: 18 x 9
• Wheel Size 2: 20 x 9

Extended Information:

• Country of Origin: US
• Emissions : 1

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 48.0000 x 40.0000 x 24.0000 inches
• Weight: 68.4000 POUNDS
