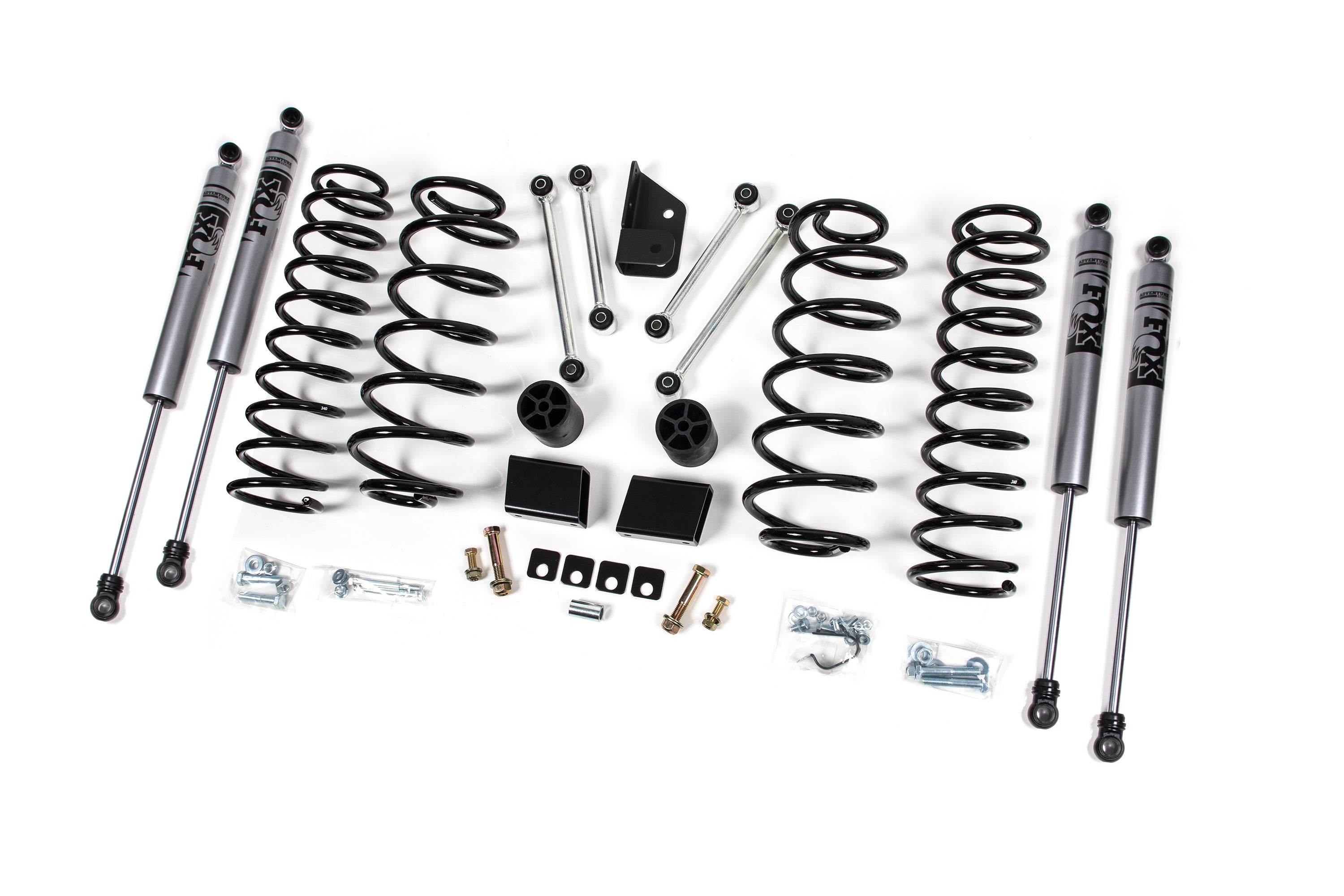

Zone 3" Suspension Lift Kit

Designed as a complete system, this 3" lift includes everything necessary to properly lift your new Wrangler JL while allowing clearance for 35-37" tires. The extra ride height comes from a set of replacement JL-specific coil springs at each corner. These springs are engineered for additional ride height, improved suspension articulation, and to provide an custom-tailored "spring rate" to compensate for the mass of aftermarket wheels/tires and extra gear / off-roading equipment. In additional to replacement coil springs and shocks, this kit includes front lower control arm cam washers to correct caster alignment. Extended-length, heavy-duty front and rear sway bar links are supplied to correct sway bar geometry, while bump stop extensions limit suspension up-travel. Wrapping up this kit is a heavy-duty rear track bar bracket, used to re-center the rear axle and all the necessary hardware required to complete the full install.

• F/R coil springs to set ride height, maintain ride and improve articulation
• Nitro-series gas shocks for smooth on/off-road performance
• F/R extended sway bar links to correct sway bar operating angle
• F/R bump stop extensions to properly limit suspension up travel
• Front LCA cam washers to correct front end caster
• Rear track bar bracket to recenter rear axle
• Allows clearance for 35-37" tires

Attributes:

• Brand Name: Zone Offroad
• GTIN: 00810156367502
• Accommodates Factory Wheels: No
• Adjustable: No
• Back Spacing: 4.5"
• Finish: Powdercoat
• Front Lift Height: 3"
• Front Lift Method: Coil Springs
• Installation Difficulty: 2 out of 5
• Installation Time: 2.5 hrs
• Lift Type: Lift Kit
• Material: Steel
• Max Tire Size: 35 x 12.5
• Rear Lift Height: 3"
• Rear Lift Method: Coil Springs
• Required Tools: Torx Bit / Socket Set; Wrenches: Standard
• Requires Metal Cutting: No
• Requires Welding: No
• Wheel Size: 17 x 9

Extended Information:

• Country of Origin: US
• Emissions : 1

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 48.0000 x 40.0000 x 24.0000 inches
• Weight: 79.6000 POUNDS
