Zone 4 Inch Suspension Lift Kit

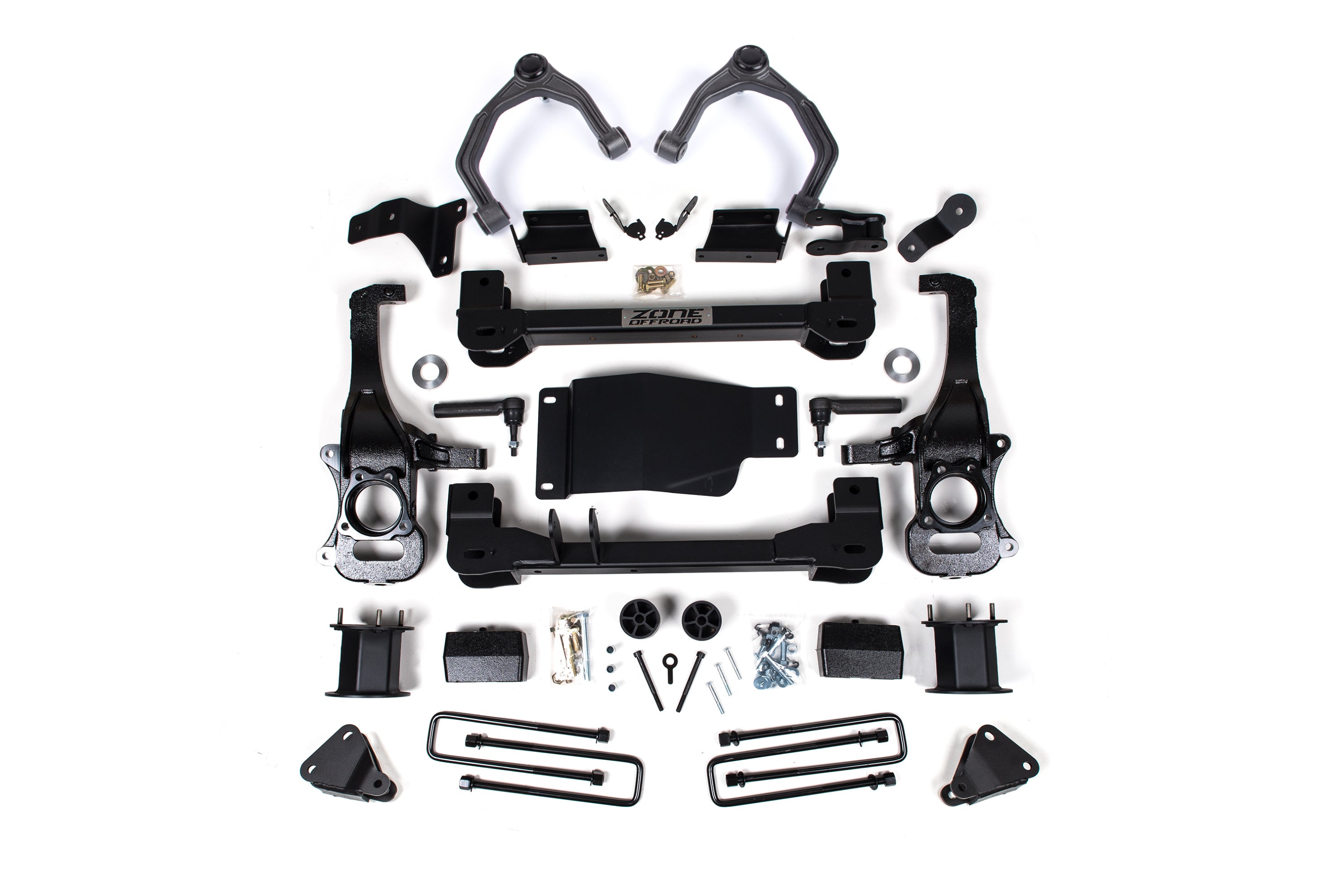

Take your GMC Denali 1500 to new heights with this 4" lift kit from Zone Offroad. These kits are designed to allow full functionality of the ARC (adaptive ride control) system factory installed on the Denali to retain all the features of your truck at the new lift height. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers, ARC sensor brackets, adventure series upper control arm, differential relocation brackets and more. Get the look, performance, and capability your truck deserves with clearance for up to 35" tires.

• High strength crossmembers to correct lower control arm positioning
• Ductile iron steering knuckles and new tie rod ends to correct steering geometry and maintain ESC system compatibility
• Strut spacers and shock relocation brackets to maintain ARC functionality
• Differential skid plate for additional offroad protection
• Adventure Series upper control arms included for additional strength and durability. Rear lift blocks and u-bolts to lift and level the stance
• Sway bar, brake line and bump stop relocation brackets to correct operating angles

Attributes:

• Brand Name: Zone Offroad
• GTIN: 00810156361456
• Adjustable: No
• Back Spacing: See Associated Comments
• Front Lift Height: 4"
• Front Lift Method: Knuckle & Strut Spacer
• Installation Difficulty: Difficult (4 out of 5)
• Installation Time: 7-9 hrs
• Lift Type: Lift Kit
• Material: Steel
• Max Tire Size: See Associated Comments
• Rear Lift Height: 3"
• Rear Lift Method: Lift Block
• Requires Metal Cutting: No
• Requires Welding: No
• Wheel Size: See Associated Comments

Extended Information:

• Country of Origin: US
• Emissions : 1
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 48.0000 x 40.0000 x 24.0000 inches
• Weight: 233.2500 POUNDS
