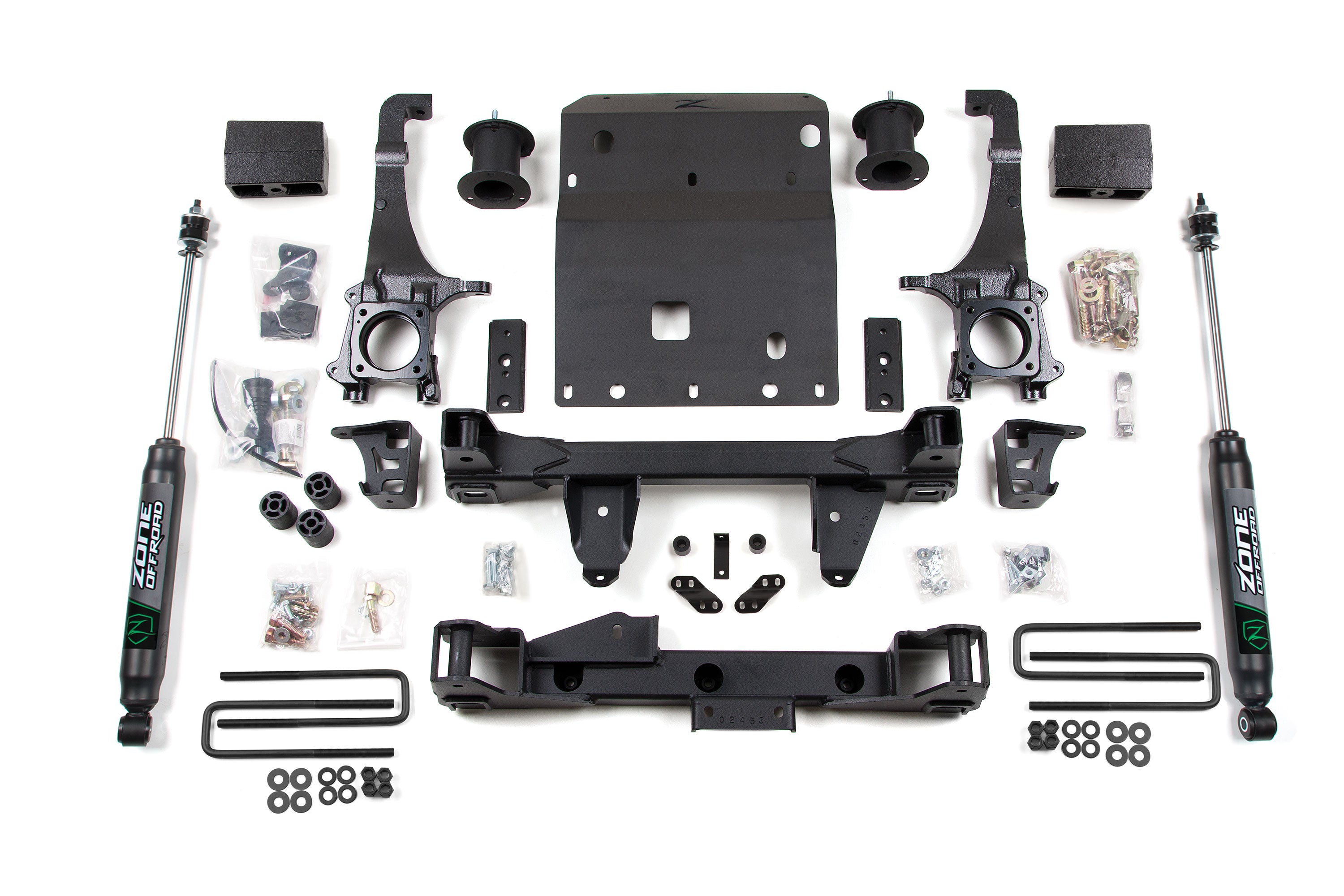

Zone 4" Suspension Lift Kit

Raise it up with this 4" Lift Kit made for serious off road adventure. Featuring a combination of strut spacers, iron knuckle for the front and cast blocks for the rear. This kit clears your 4WD 2005 - 2015 Toyota Tacoma for tires up to 33 inches with some trimming.

• High strength crossmembers to correct lower control arm positioning
• Ductile iron steering knuckles to corect steering geometry and maintain ESC system compatibility
• Top mounted strut spacers to provide lift and install easily
• Full width belly skid plate offers improved offroad protection
• Rear lift blocks and u-bolts to lift and level the stance
• Bump stop, sway bar and brake line relocation brackets to correct operating angles

Attributes:

• Brand Name: Zone Offroad
• GTIN: 00810156367908
• Accommodates Factory Wheels: No
• Adjustable: No
• Back Spacing: 4.5"
• Back Spacing 2: 4.5"
• Back Spacing 3: 4.5"
• Finish: Powdercoat
• Front Lift Height: 4"
• Front Lift Method: Knuckle & Strut Spacer
• Installation Difficulty: 4 out of 5
• Installation Time: 7 hrs
• Lift Type: Lift Kit
• Max Tire Size: 33 x 12.5
• Max Tire Size 2: 33 x 12.5
• Max Tire Size 3: 33 x 12.5
• Rear Lift Height: 3"
• Rear Lift Method: Cast Blocks
• Requires Metal Cutting: No
• Requires Welding: No
• Wheel Size: 18 x 9
• Wheel Size 2: 20 x 9
• Wheel Size 3: 22 x 9

Extended Information:

• Country of Origin: US
• Emissions : 1
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 48.0000 x 40.0000 x 24.0000 inches
• Weight: 194.6500 POUNDS
