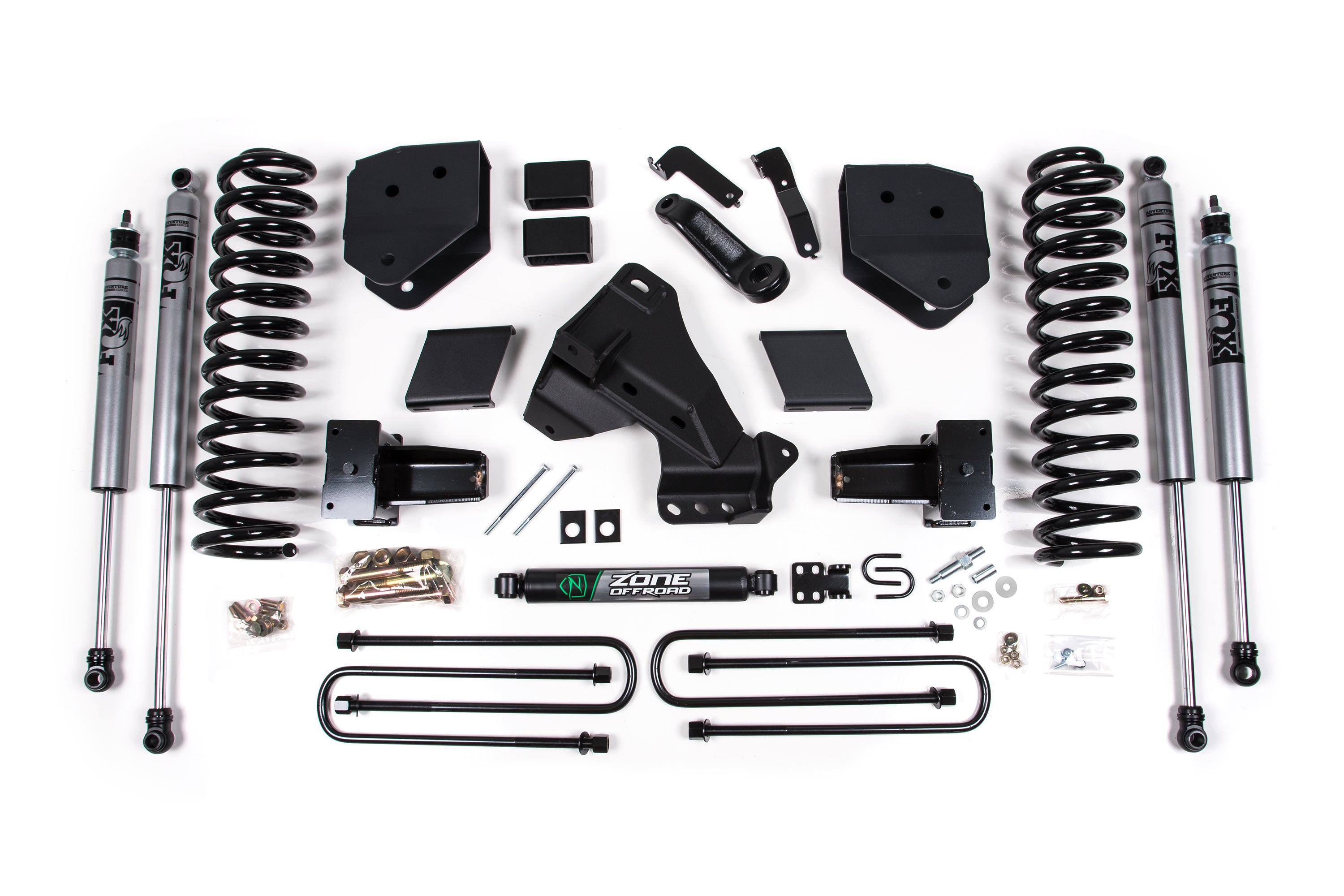

Zone 4" Suspension Lift System - Diesel

Zone Offroad now offers a suspension lifts for the 2020 Ford F350 Super Duty 4WD DRW trucks. These kits are based on the kits for the 2005-2021 Ford Super Duty, updated specifically for use on the DRW models. These new 4" lift kits are available for gas and diesel applications, as well as offered in standard (radius arm drop bracket) as well as replacement HD radius arm configurations to allow clearance for up to 37" tires. As with all Zone lift kits, these kits are backed by Factory Protection Plus, the comprehensive extended warranty giving you peace of mind on or off the road with a 5-year, 60,000-mile drivetrain warranty and Zone Offroad's limited lifetime warranty.

• Heavy duty fabricated steel replacement radius arms that correct caster alignment while maximizing ground clearance
• Forged pitman arm to correct steering angles
• Heavy duty fabricated track bar relocation bracket to re-center front axle
• Full length Diesel/ Gas specific coil springs for a smooth ride
• Rear lift is specific to dually trucks using U-bolts that are sized correctly for length as well as block height to level the truck and a bump stop extension on the frame

Attributes:

• Brand Name: Zone Offroad
• GTIN: 00810156366550
• Adjustable: No
• Back Spacing: 4.5"
• Back Spacing 2: 4.5"
• Finish: Powdercoat
• Front Lift Height: 4"
• Front Lift Method: Coil Springs
• Installation Difficulty: 3 out of 5
• Installation Time: 4-6 hrs
• Lift Type: Suspension
• Material: Steel
• Max Tire Size: 37 x 12.5
• Max Tire Size 2: 37 x 12.5
• Rear Lift Height: 3"
• Rear Lift Method: Block Kit
• Required Tools: Wrenches: Standard
• Requires Metal Cutting: No
• Requires Welding: No
• Wheel Size: 22 x 9
• Wheel Size 2: 20 x 9

Extended Information:

• Country of Origin: US
• Emissions : 1
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 48.0000 x 40.0000 x 24.0000 inches
• Weight: 194.9500 POUNDS
