Zone 5.5" Standard Lift Kit

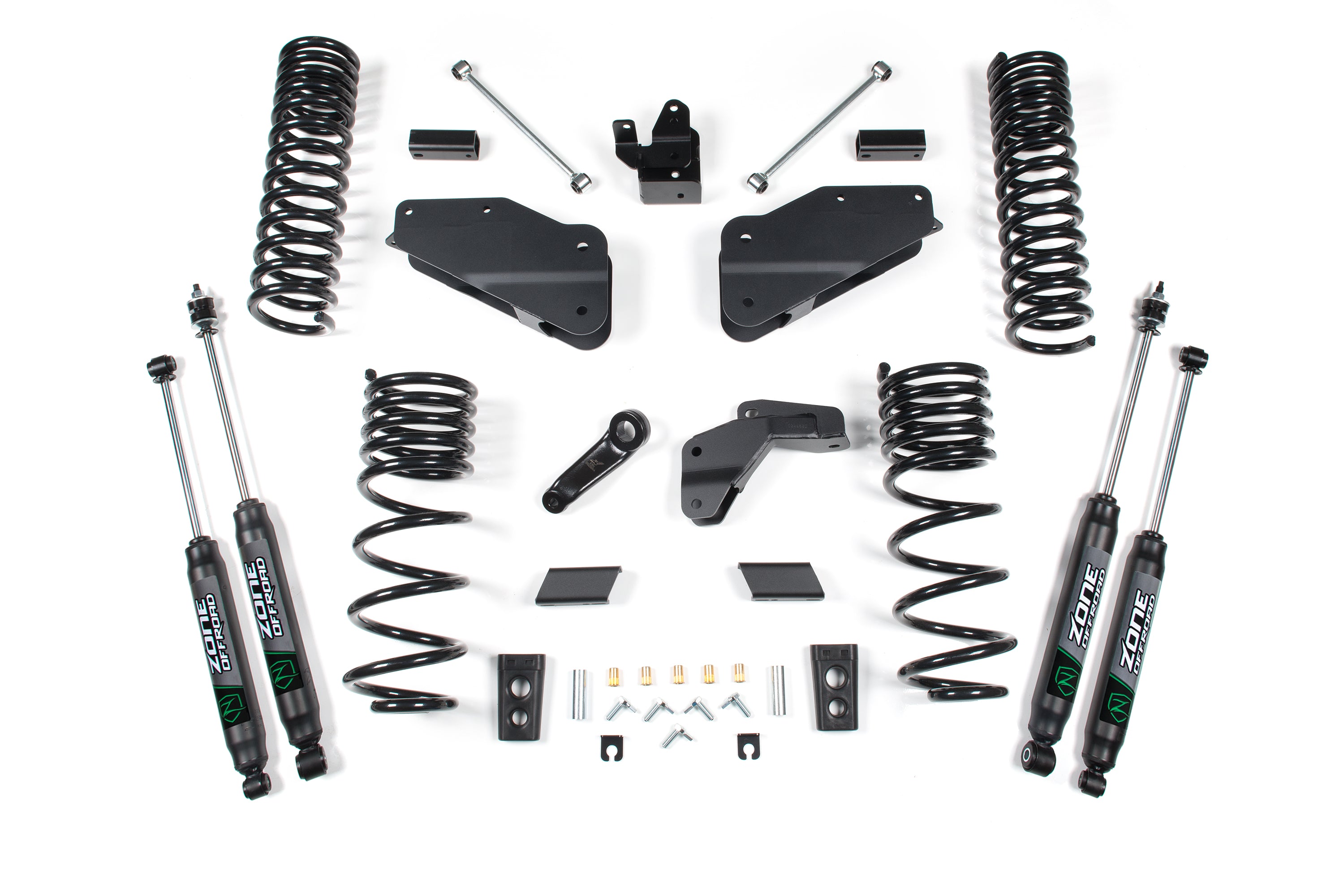

Take your RAM 2500 to new heights with this 5.5" lift kit from Zone Offroad. Kits include everything needed from front/rear coil springs and stout radius arm relocation brackets to steering correction and rear lift to level the stance. Get the look, performance, and capability your truck deserves with clearance for up to 37" tires.

• Progressive rate front and rear coil springs improve ride quality and offroad performance while lifting and leveling the stance
• Radius arm drop brackets to correct caster and improve suspension geometry
• Forged pitman arm and track bar relocation bracket to correct steering angles and recenter front axle
• Extended bump stops, sway bar relocation and brake line relocation to maintain factory-like operating angles
• Bump stop extensions, track bar bracket and sway bar correction to correct suspension geometry

Attributes:

• Brand Name: Zone Offroad
• GTIN: 00810156363986
• Accommodates Factory Wheels: See Notes
• Adjustable: No
• Back Spacing: 4.5"
• Back Spacing 2: 5.75"
• Back Spacing 3: 5.75"
• Finish: Powdercoat
• Front Lift Height: 5.5"
• Front Lift Method: Radius Arms
• Installation Difficulty: 3 out of 5
• Installation Time: 5 hrs
• Lift Type: Lift Kit
• Max Tire Size: 35 x 12.5
• Max Tire Size 2: 37 x 12.5
• Max Tire Size 3: 37 x 12.5
• Rear Lift Height: 4.5"
• Rear Lift Method: Coil Springs
• Requires Metal Cutting: No
• Requires Welding: No
• Wheel Size: 17 x 9
• Wheel Size 2: 17 x 9
• Wheel Size 3: 20 x 9

Extended Information:

• Country of Origin: US
• Emissions : 1
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 48.0000 x 40.0000 x 24.0000 inches
• Weight: 243.7000 POUNDS
