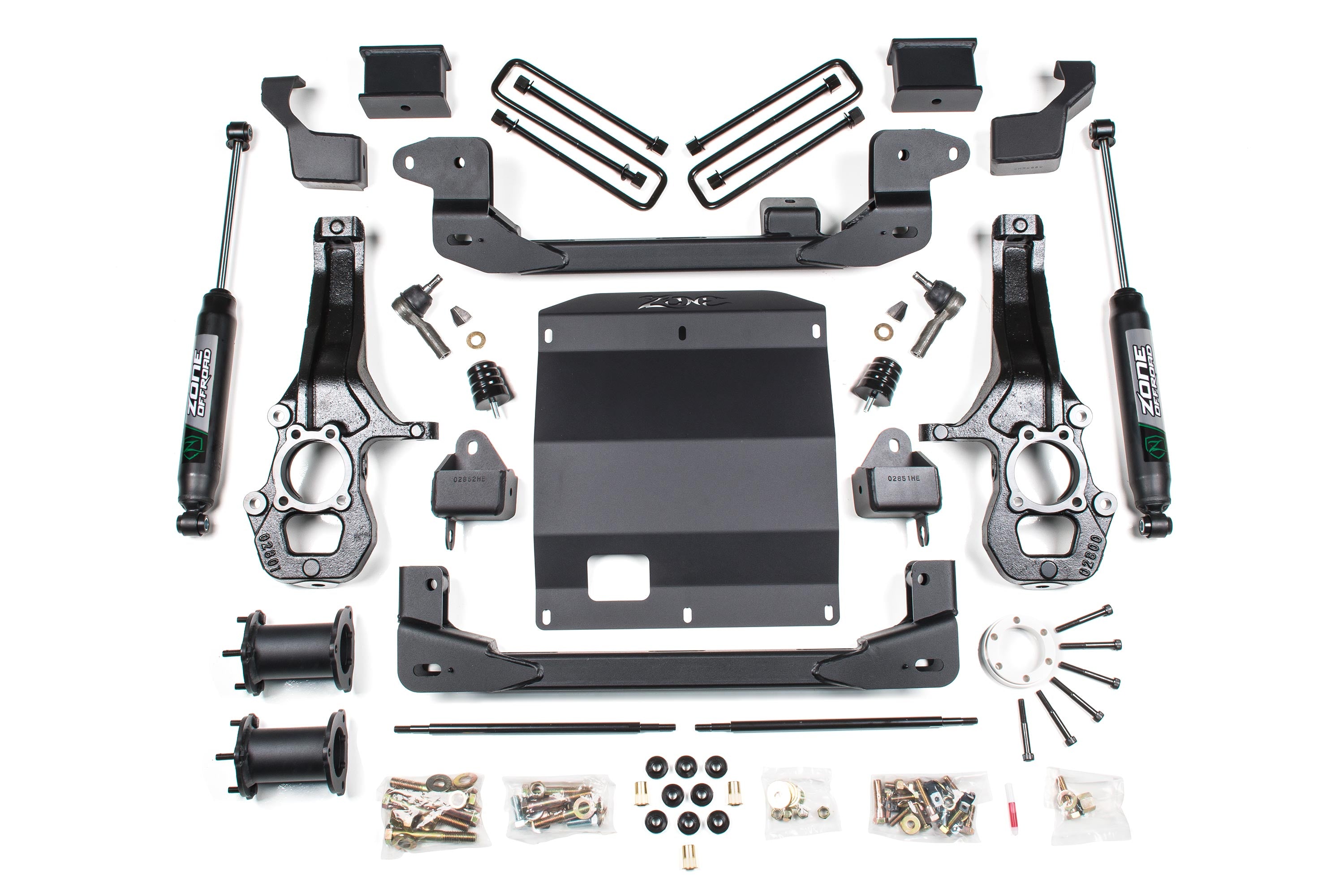

Zone 5.5" Suspension Lift Kit

To properly lift the Colorado/Canyon suspension 5.5", we started with ductile cast iron steering knuckles that reposition critical steering and control arm mounting locations, and work in harmony with the heavy-duty, fabricated crossmembers. Differential drop brackets lower and reposition the front differential for correct CV shaft angles and still allow for use of the factory front driveshaft with the help of a spacer that helps retain optimum CV joint positioning. A full-width differential skid plate protects the relocated differential from the underside and ties the front and rear crossmembers together. Factory struts are retained and relocated with top spacers to gain a full 5.5" of lift without requiring any strut disassembly and that position the struts to eliminate binding through wheel travel. In the rear, a new block and U-bolt kit provided 4" of lift to level out the rear with the front. Extended sway bar links, bump stop extensions, and brake line relocation are also included.

• Corrects suspension, steering, and driveline geometry for great on-road handling and improved off-road performance
• Heavy-duty differential skid slate improves offroad protection
• High-strength, 1/4" steel construction crossmembers correct lower control arm geometry
• High-strength, replacement steering knuckles improve strength while correcting steering angles to maintain ESC system compliance
• Multi-point differential relocation brackets secure front differential for improved CV operating angles
• Rear lift block and longer u-bolts for easy installation and level stance

Attributes:

• Brand Name: Zone Offroad
• GTIN: 00810156360749
• Accommodates Factory Wheels: No
• Adjustable: No
• Back Spacing: 5.25"
• Back Spacing 2: 4.5"
• Back Spacing 3: 4.5"
• Finish: Powdercoat
• Front Lift Height: 5.5"
• Front Lift Method: Strut Spacers
• Installation Difficulty: 4 out of 5
• Installation Time: 6-8 hrs
• Lift Type: Lift Kit
• Material: Steel
• Max Tire Size: 305 / 55
• Max Tire Size 2: 295 / 65
• Max Tire Size 3: 295 / 65
• Rear Lift Height: 4"
• Rear Lift Method: Lift Block
• Required Tools: Torx Bit / Socket Set; Cut-off Tool; Wrenches: Standard
• Requires Metal Cutting: No
• Requires Welding: No
• Wheel Size: 20 x 9
• Wheel Size 2: 18 x 9
• Wheel Size 3: 17 x 8.5

Extended Information:

• Country of Origin: US
• Emissions : 1
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 48.0000 x 40.0000 x 24.0000 inches
• Weight: 201.5500 POUNDS
