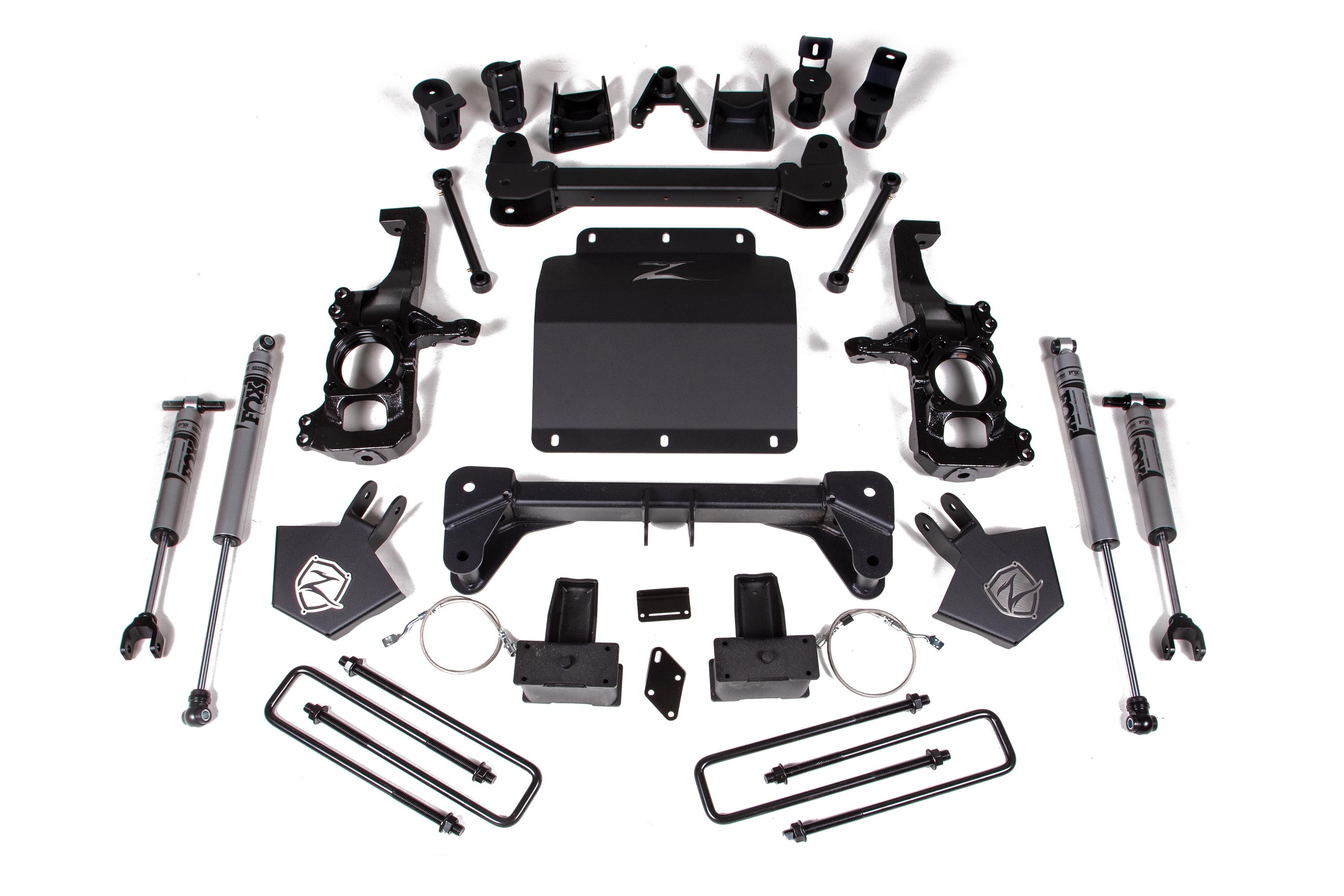

Zone 5" Suspension Lift Kit

Take your GM 2500/3500HD to new heights with this 5" lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to differential relocation and and rear block kit to level out the stance. Get the look, performance, and capability your truck deserves with clearance for up to 37" tires.

• Maintains ride quality and handling characteristics
• Improves ground clearance while correcting suspension-steering-driveline geometry
• High strength 1/4" thick steel crossmembers and differential skid plates
• CNC machined ductile iron steering knuckles to maintain ESC System compatibility
• Zone Offroad branded front skidplate and torsion bar relocation brackets
• Allows clearance for up to 37" tires to be installed

Attributes:

• Brand Name: Zone Offroad
• GTIN: 00810156360855
• Accommodates Factory Wheels: See Notes
• Adjustable: No
• Back Spacing: 5-5.5"
• Back Spacing 2: 5-5.5"
• Back Spacing 3: 4.5-4.625"
• Finish: Powdercoat
• Fmvss Certification: N/A (See notes)
• Front Lift Height: 5"
• Front Lift Method: Knuckle & Drop Cross-Member
• Installation Difficulty: 4 out of 5
• Installation Time: 6-8 hrs
• Lift Type: Suspension
• Material: 1/4" Steel
• Max Tire Size: 37 x 12.5
• Max Tire Size 2: 35 x 12.5
• Max Tire Size 3: 35 x 12.5
• Rear Lift Height: 4.5"
• Rear Lift Method: Block Kit
• Requires Metal Cutting: Yes
• Requires Welding: No
• Wheel Size: 20 x 9
• Wheel Size 2: 20 x 10
• Wheel Size 3: 17 x 9

Extended Information:

• Country of Origin: US
• Emissions : 1
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 48.0000 x 40.0000 x 24.0000 inches
• Weight: 262.6000 POUNDS
