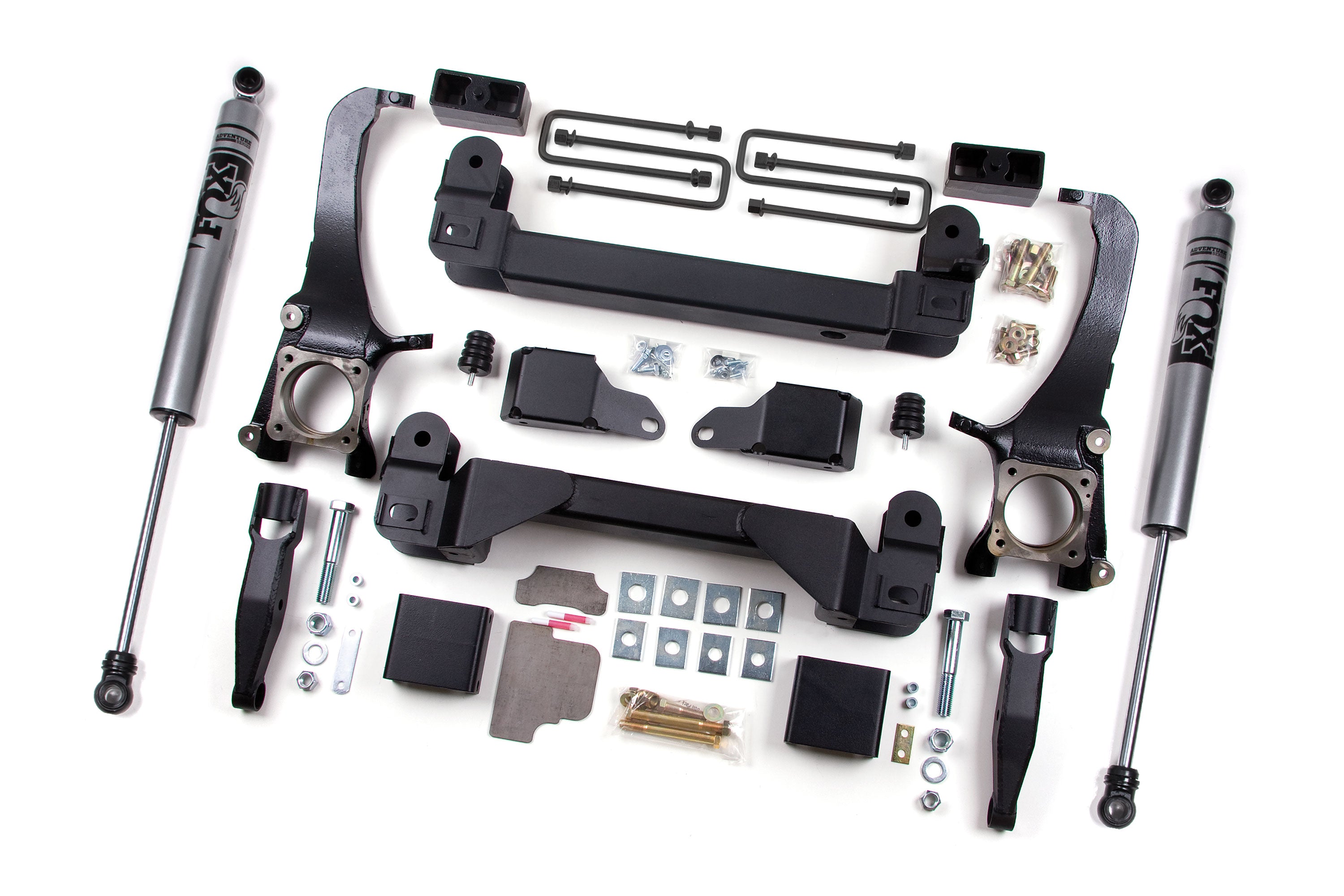

Zone 5" Suspension Lift Kit

The Tundra has some serious power, take advantage of it with this 5" Lift Kit that makes your truck an off road machine. Iron knuckles and heavy-duty, boxed crossmembers integrate with differential mounts to lock everything together. Fits 2007 - 2015 Toyota Tundra.

• High strength crossmembers to correct lower control arm positioning
• Ductile iron steering knuckles to corect steering geometry and maintain ESC system compatibility
• Lower strut extensions to provide lift and install easily
• Weld-in chassis plates add strength and rigidity
• Rear lift blocks and u-bolts to lift and level the stance
• Sway bar, brake line, and bump stop relocation brackets to correct operating angles

Attributes:

• Brand Name: Zone Offroad
• GTIN: 00810156367823
• Accommodates Factory Wheels: No
• Adjustable: No
• Back Spacing: 5.5"
• Back Spacing 2: 6.25"
• Back Spacing 3: 6.25"
• Finish: Powdercoat
• Front Lift Height: 5"
• Front Lift Method: Knuckle & Drop Cross-Member
• Installation Difficulty: 3 out of 5
• Installation Time: 8 hrs
• Lift Type: Lift Kit
• Max Tire Size: 35 x 12.5
• Max Tire Size 2: 35 x 12.5
• Max Tire Size 3: 35 x 12.5
• Rear Lift Height: 3"
• Rear Lift Method: Cast Blocks
• Requires Metal Cutting: No
• Requires Welding: No
• Wheel Size: 18 x 9
• Wheel Size 2: 20 x 9
• Wheel Size 3: 22 x 9

Extended Information:

• Country of Origin: US
• Emissions : 1

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 48.0000 x 40.0000 x 24.0000 inches
• Weight: 215.5500 POUNDS
