Zone 5" Suspension Lift Kit

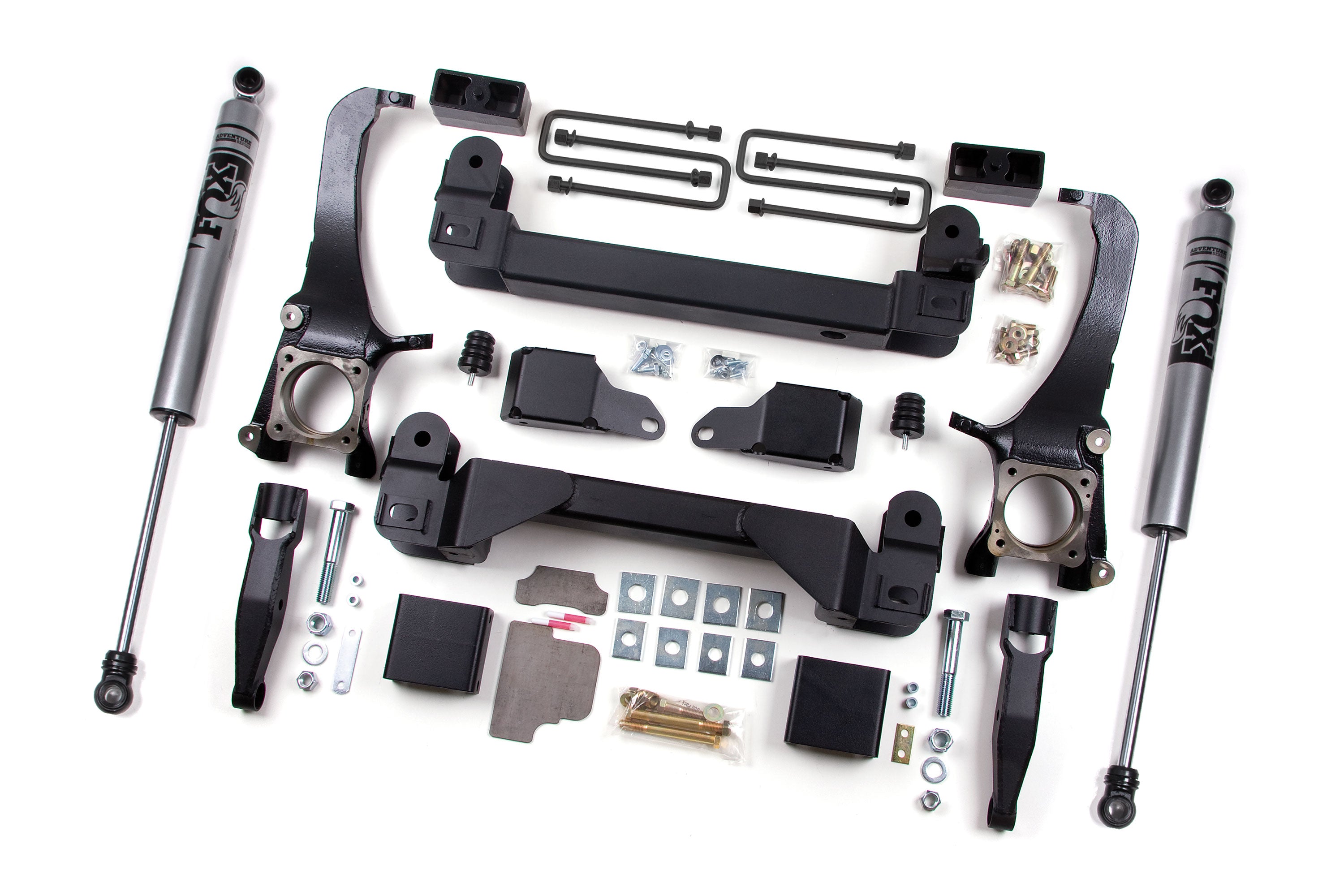

Take your Tundra to new heights with this 5" lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to lower strut extensions and rear block kit to level out the stance. Get the look, performance, and capability your truck deserves with clearance for up to 35" tires.

• High strength crossmembers to correct lower control arm positioning
• Ductile iron steering knuckles to correct steering geometry and maintain ESC system compatibility
• Lower strut extensions to provide lift and install easily
• Weld-in chassis plates add strength and rigidity
• Rear lift blocks and u-bolts to lift and level the stance
• Sway bar, brake line, and bump stop relocation brackets to correct operating angles

Attributes:

• Brand Name: Zone Offroad
• GTIN: 00810156367922
• Accommodates Factory Wheels: No
• Adjustable: No
• Back Spacing: 5.5"
• Back Spacing 2: 6.25"
• Back Spacing 3: 6.25"
• Finish: Powdercoat
• Fmvss Certification: N/A (See notes)
• Front Lift Height: 5"
• Front Lift Method: Knuckle & Drop Cross-Member
• Installation Difficulty: 3 out of 5
• Installation Time: 8 hrs
• Lift Type: Lift Kit
• Max Tire Size: 35 x 12.5
• Max Tire Size 2: 35 x 12.5
• Max Tire Size 3: 35 x 12.5
• Rear Lift Height: 3"
• Rear Lift Method: Fabricated Blocks
• Requires Metal Cutting: No
• Requires Welding: No
• Wheel Size: 18 x 9
• Wheel Size 2: 20 x 9
• Wheel Size 3: 22 x 9

Extended Information:

• Country of Origin: US
• Emissions : 1
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 48.0000 x 40.0000 x 24.0000 inches
• Weight: 218.4500 POUNDS
