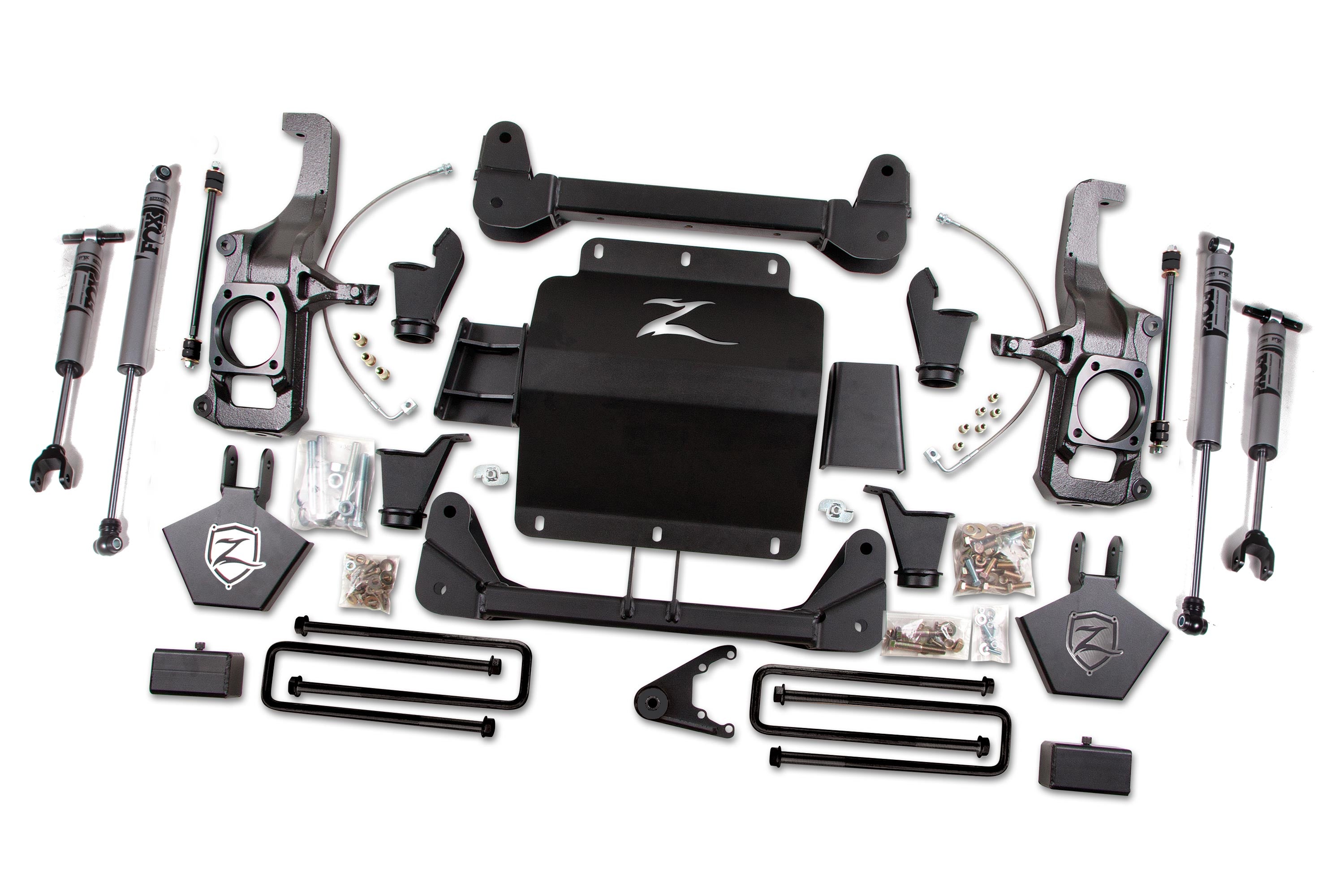

Zone 5" Torsion Bar Drop Lift Kit

Turn heads and drop jaws with this 5" lift kit for your truck that gives you clearance for tires up to 35". This kit has everything you need to raise and level your 2011 - 2019 Chevy/GM 2500HD /3500HD truck. If you’re going to do it, do it right.

• Heavy-duty differential skid slate improves offroad protection
• High-strength, 1/4" steel construction crossmembers corrects lower control arm geometry
• High-strength, CNC machined, replacement steering knuckles improve strength while correcting steering angles
• No differential trimming required
• Rear lift block and longer U-bolts for easy installation and level stance

Attributes:

• Brand Name: Zone Offroad
• GTIN: 00810156360060
• Accommodates Factory Wheels: See Notes
• Adjustable: No
• Back Spacing: 4.75"
• Back Spacing 2: 6"
• Back Spacing 3: 6"
• Finish: Powdercoat
• Front Lift Height: 5"
• Front Lift Method: Torsion Bar Drop
• Installation Difficulty: 4 out of 5
• Installation Time: 7 hrs
• Lift Type: Lift Kit
• Material: Steel
• Max Tire Size: 35 x 12.5
• Max Tire Size 2: 285 x 65
• Max Tire Size 3: 35 x 12.5
• Rear Lift Height: 3"
• Rear Lift Method: Cast Blocks
• Requires Metal Cutting: Yes
• Requires Welding: No
• Wheel Size: 17 x 9
• Wheel Size 2: 20 x 9
• Wheel Size 3: 20 x 9

Extended Information:

• Country of Origin: US
• Emissions : 1
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 48.0000 x 40.0000 x 24.0000 inches
• Weight: 248.7500 POUNDS
