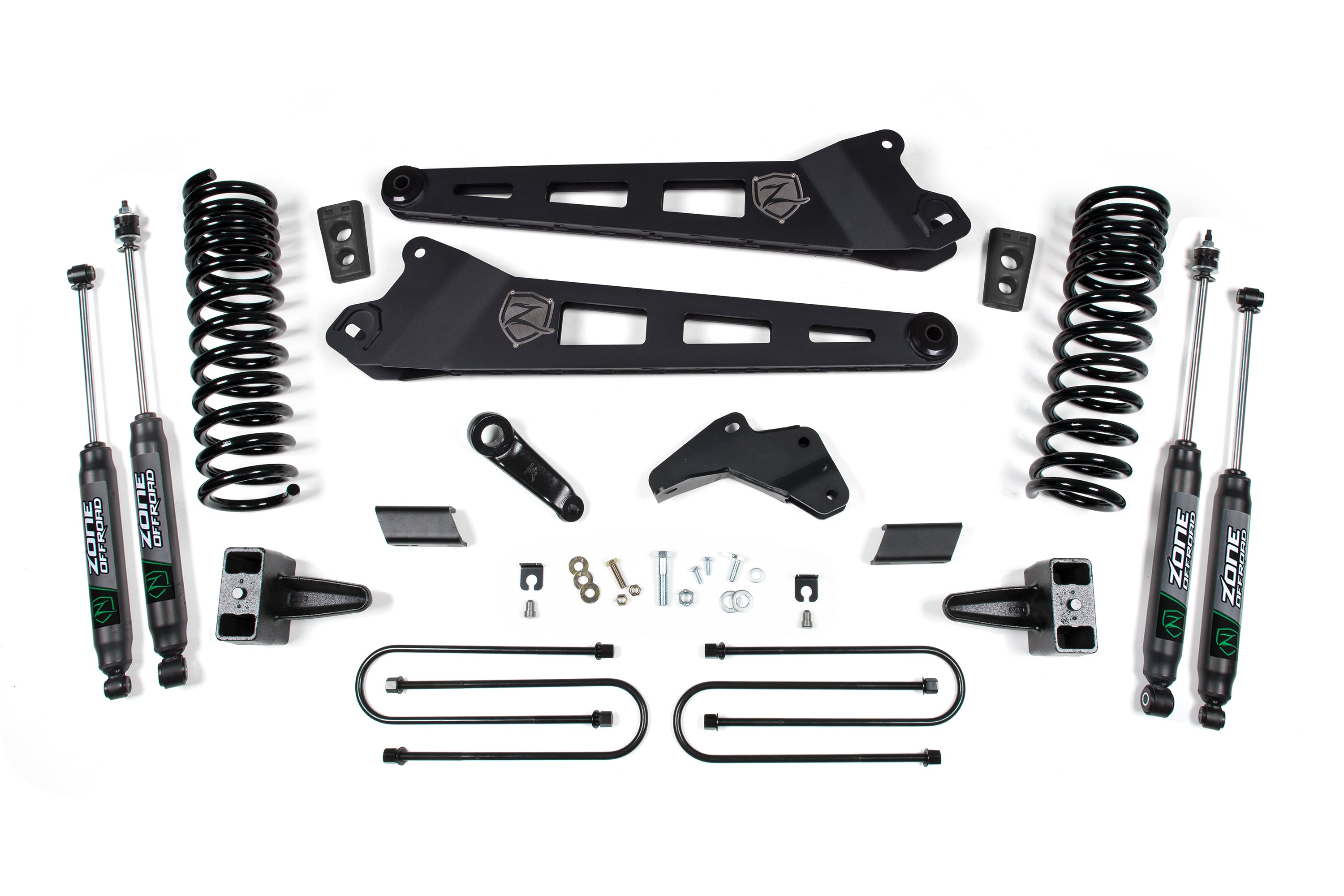

Zone 6.5" Radius Arm Lift Kit

Take your RAM 3500 to new heights with this 6.5" lift kit from Zone Offroad. Kits include everything needed from full length coil springs and stout radius arms to steering correction and rear lift to level the stance. Get the look, performance, and capability your truck deserves with clearance for up to 37" tires.

• Progressive rate front coil springs improve ride quality and offroad performance
• HD radius arm to correct caster while maximizing ground clearance
• Forged pitman arm and track bar relocation bracket to correct steering angles and recenter front axle
• Extended bump stops, sway bar relocation and brake line relocation to maintain factory-like operating angles
• Replacement rear lift blocks and u-bolts to lift and level the stance

Attributes:

• Brand Name: Zone Offroad
• GTIN: 00810156363764
• Accommodates Factory Wheels: See Notes
• Adjustable: No
• Back Spacing: 4.5"
• Back Spacing 2: 5.75"
• Back Spacing 3: 5.75"
• Finish: Powdercoat
• Front Lift Height: 6.5"
• Front Lift Method: Radius Arm Drop
• Installation Difficulty: 3 out of 5
• Installation Time: 6 hrs
• Lift Type: Lift Kit
• Max Tire Size: 35 x 12.5
• Max Tire Size 2: 37 x 12.5
• Max Tire Size 3: 37 x 12.5
• Rear Lift Height: 5"
• Rear Lift Method: Coil Springs
• Requires Metal Cutting: No
• Requires Welding: No
• Wheel Size: 17 x 9
• Wheel Size 2: 18 x 9
• Wheel Size 3: 20 x 9

Extended Information:

• Country of Origin: US
• Emissions : 1

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 48.0000 x 40.0000 x 24.0000 inches
• Weight: 254.3500 POUNDS
