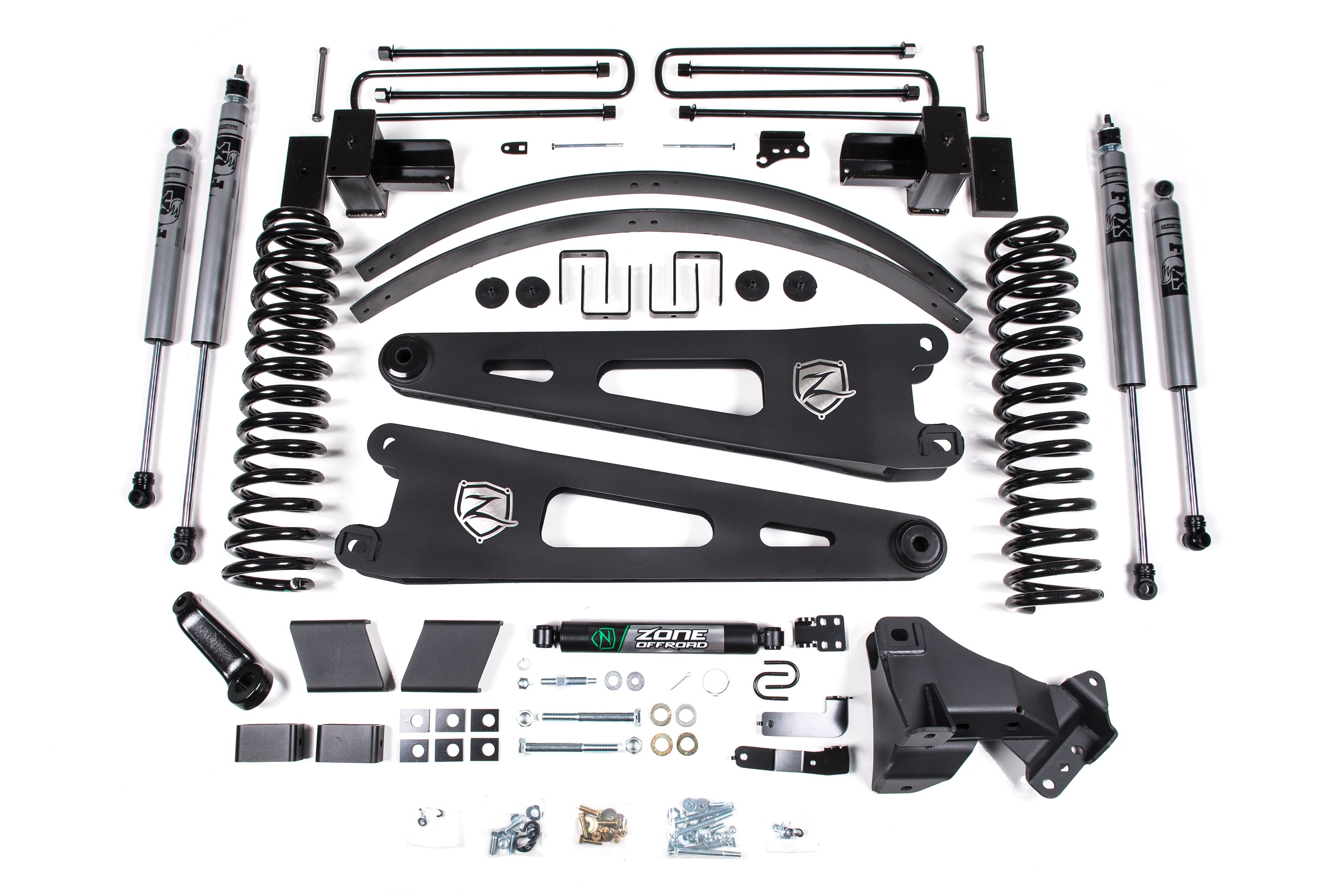

Zone 6" Radius Arm Lift Kit

Take your Super Duty to new heights with this 6" lift kit from Zone Offroad. Kits include everything needed from full length coil springs and stout radius arms to steering correction and rear lift to level the stance. Get the look, performance, and capability your truck deserves with clearance for 38" tires.

• High strength front coil springs improve ride quality
• HD radius arm to correct caster while maximizing ground clearance
• Forged pitman arm and track bar relocation bracket to correct steering angles and recenter front axle
• Bump stop relocation, sway bar relocation and brake line relocation to maintain factory-like operating angles
• Replacement rear lift blocks, add-a-leafs and u-bolts to lift and level the stance

Attributes:

• Brand Name: Zone Offroad
• GTIN: 00810156365966
• Adjustable: No
• Back Spacing: 5"
• Back Spacing 2: 5"
• Back Spacing 3: 5"
• Front Lift Height: 6"
• Front Lift Method: Coil Springs & Replacement Radius Arms
• Installation Difficulty: 3 out of 5
• Installation Time: 7 hrs
• Lift Type: Lift Kit
• Max Tire Size: 38 x 13.5
• Max Tire Size 2: 38 x 13.5
• Max Tire Size 3: 38 x 13.5
• Rear Lift Height: 5"
• Rear Lift Method: Add-A-Leaf & Cast Block
• Requires Metal Cutting: No
• Requires Welding: No
• Type: Single Stabilizer
• Wheel Size: 17 x 10
• Wheel Size 2: 18 x 10
• Wheel Size 3: 20 x 10

Extended Information:

• Country of Origin: CA
• Emissions : 1
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 48.0000 x 40.0000 x 24.0000 inches
• Weight: 307.3500 POUNDS
