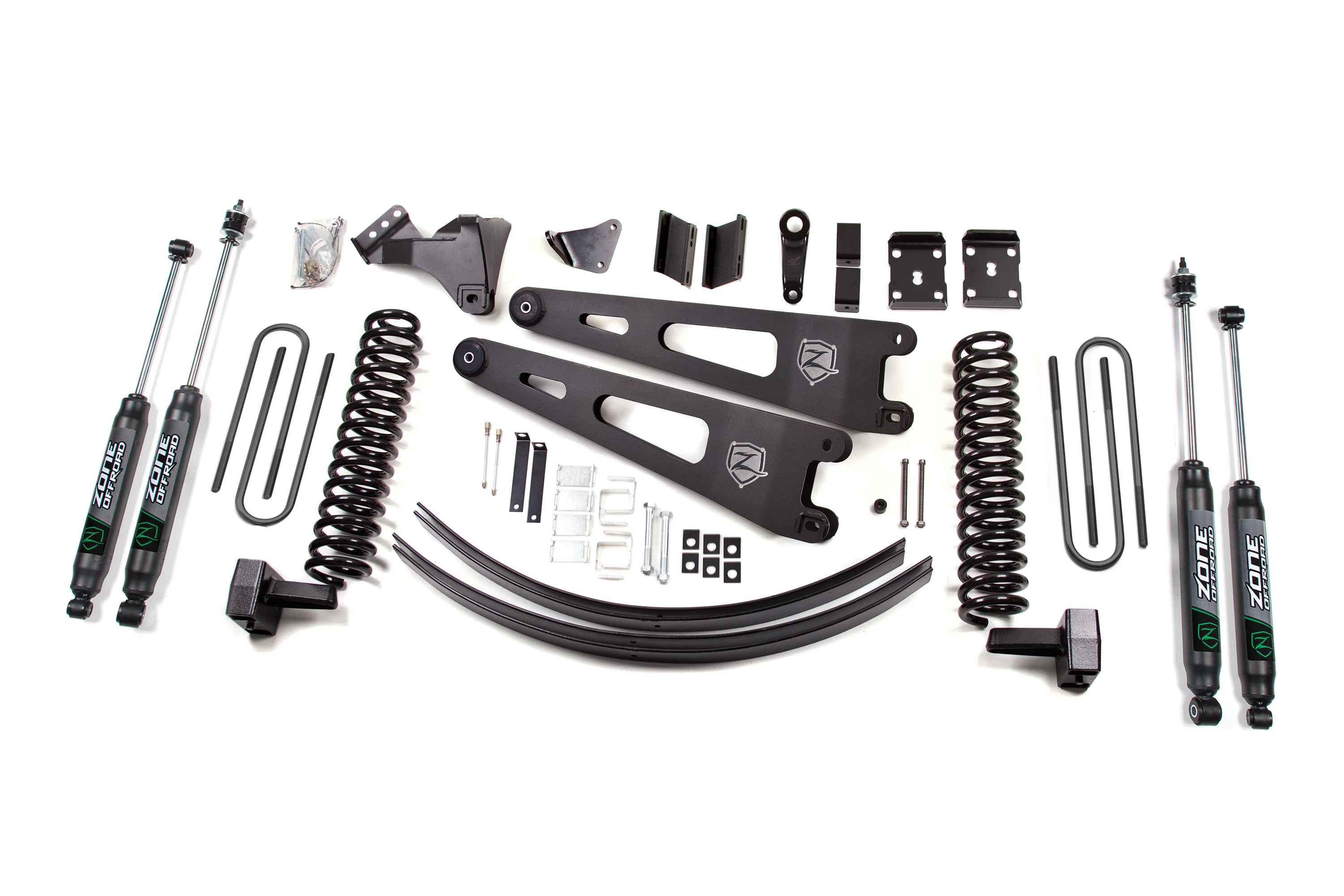

Zone 6" Radius Arm Lift Kit

When you go big you can go anywhere. This 6" Radius Arm Lift Kit puts your truck into a class of its own, letting you clear huge 37" tires. Get the look and performance you want out of your Diesel 4WD 2008 - 2010 Ford F-250 / F-350.

• Brake line relocation brackets allow re-use of factory brake lines
• Bump stop extensions properly limit up-travel, protecting your vehicle
• Dual rear Add-A-Leaf Kit provides additional lift and improves weight capacity
• Heavy-duty radius arms improve strength, allow additional tire clearance and increase ground clearance over radius arm drop kits
• High-strength, 1/4" steel radius arms correct caster, improve tire clearance, and maximize ground clearance
• Rear lift block and longer U-bolts for easy installation and level stance
• Steering components included to ensure smooth post-installation operation of steering system and factory-consistent vehicle handling characteristics
• Sway bar relocation brackets maintain operating angle for reduced body roll

Attributes:

• Brand Name: Zone Offroad
• GTIN: 00810156365621
• Accommodates Factory Wheels: See Notes
• Adjustable: No
• Back Spacing: 4.5"
• Back Spacing 2: 4.5"
• Back Spacing 3: 4.5"
• Finish: Powdercoat
• Front Lift Height: 6"
• Front Lift Method: Radius Arm Drop
• Installation Difficulty: 3 out of 5
• Installation Time: 6 hrs
• Lift Type: Lift Kit
• Max Tire Size: 37 x 12.5
• Max Tire Size 2: 37 x 12.5
• Max Tire Size 3: 37 x 12.5
• Rear Lift Height: 4"
• Rear Lift Method: Dual Add-A-Leafs & Block Kit
• Requires Metal Cutting: No
• Requires Welding: No
• Wheel Size: 17 x 9
• Wheel Size 2: 18 x 9
• Wheel Size 3: 20 x 9

Extended Information:

• Country of Origin: CA
• Emissions : 1

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 48.0000 x 40.0000 x 24.0000 inches
• Weight: 343.3500 POUNDS
